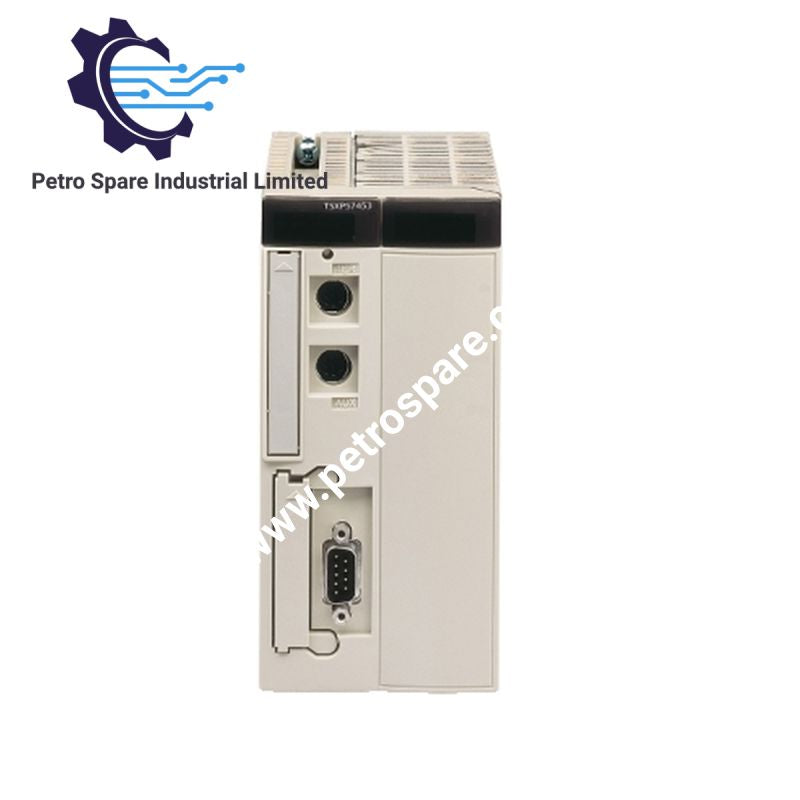

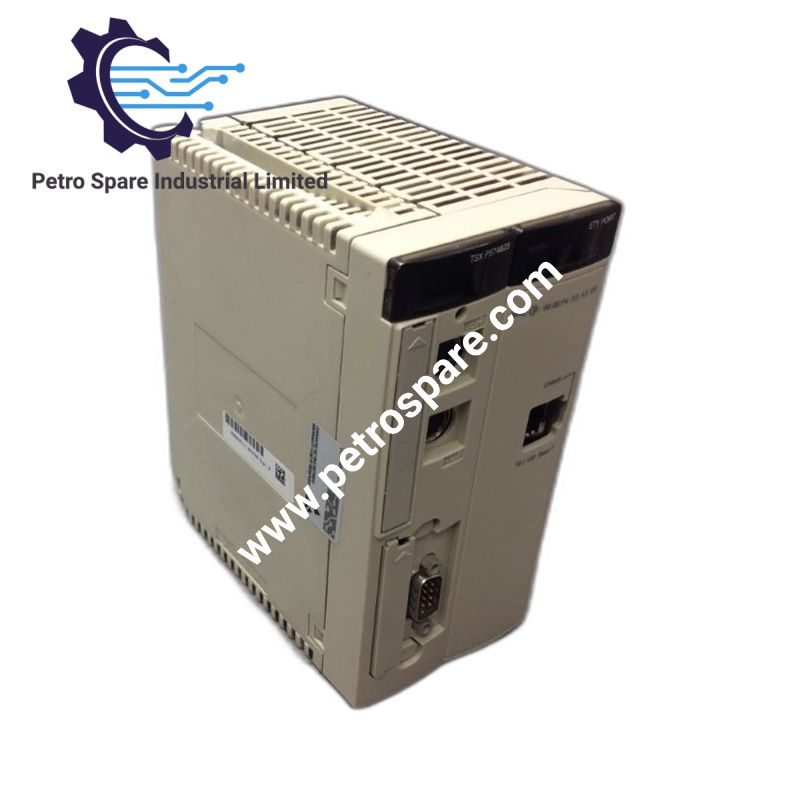

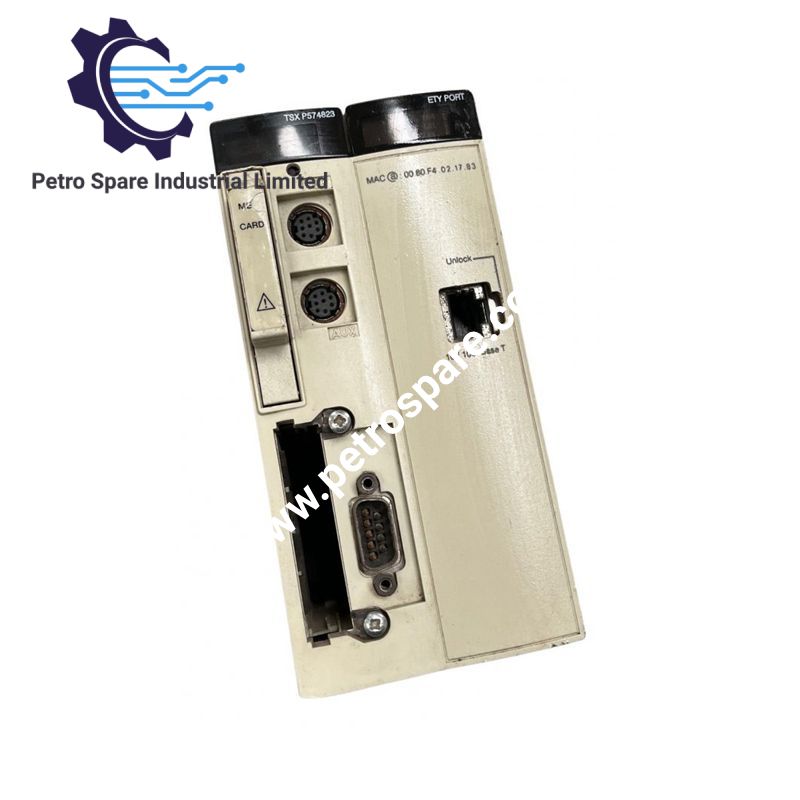

TSXP574823A

The Schneider Electric TSXP574823A, also cataloged as the TSXP574823A Double-Format PL7 Processor, operates as a dedicated hardware component for PLC application execution and rack-based control processing within Modicon automation platforms.

Hardware Specifications

Parameter	Specification
Model	TSXP574823A
Brand	Schneider Electric
Origin	France
Operating Temp	0 to 60 deg C, non-condensing environment
Product Type	Double-Format PL7 Processor
Product Line	Modicon
Processor Concept	Transparent Ready
Compatible Software	PL7 Junior / PL7 Pro
Rack Capacity	8 to 16 racks
Supported Memory	Internal RAM and PC Card
Maximum Analog I/O	256 inputs/outputs
Maximum Discrete I/O	2040 inputs/outputs
Application Specific Channels	64
Process Control Channels	20 to 60 simple loops
Protection Rating	IP20
Humidity Range	5% to 95% RH, non-condensing
Maximum Installation Altitude	2,000 m above sea level
Available Slot Configurations	64, 96, and 128 slots

EtherNet / PLC Backplane and Firmware Compatibility

The TSXP574823A processor is designed for Modicon PL7 automation architectures and supports rack-based I/O expansion through the PLC backplane. Its Transparent Ready processor concept provides communication integration within supported Schneider Electric control environments. The processor supports firmware-managed application execution, internal RAM storage, and PC Card memory expansion for application management.

The module architecture supports I/O density scaling through multiple rack configurations, allowing connection of up to 2040 discrete inputs/outputs and 256 analog inputs/outputs. PL7 Junior and PL7 Pro software environments are used for application programming, diagnostics, and processor configuration.

Frequently Asked Questions

Q: What type of memory storage is supported by the TSXP574823A processor?
A: The processor supports internal RAM and PC Card memory for application storage and program management.

Q: How many racks can be configured with the TSXP574823A?
A: The processor supports configurations from 8 to 16 racks within the Modicon PL7 architecture.

Q: What I/O capacity can the TSXP574823A manage?
A: The processor supports up to 2040 discrete inputs/outputs and up to 256 analog inputs/outputs depending on system configuration.

Field Installation Guidelines

Install the TSXP574823A processor in an IP20-rated control cabinet with appropriate protection against dust, moisture, and conductive contamination. Verify rack positioning, backplane connections, and module locking mechanisms before energizing the PLC system.

Separate communication wiring, analog signal cables, and high-current power conductors to reduce electromagnetic interference. Apply proper cable shielding and grounding practices according to the installation requirements of the connected Modicon PLC system.

Confirm that the operating environment remains within the specified temperature, humidity, and altitude limits before commissioning. Use compatible PL7 software tools for processor configuration, diagnostics, and firmware management.

---
