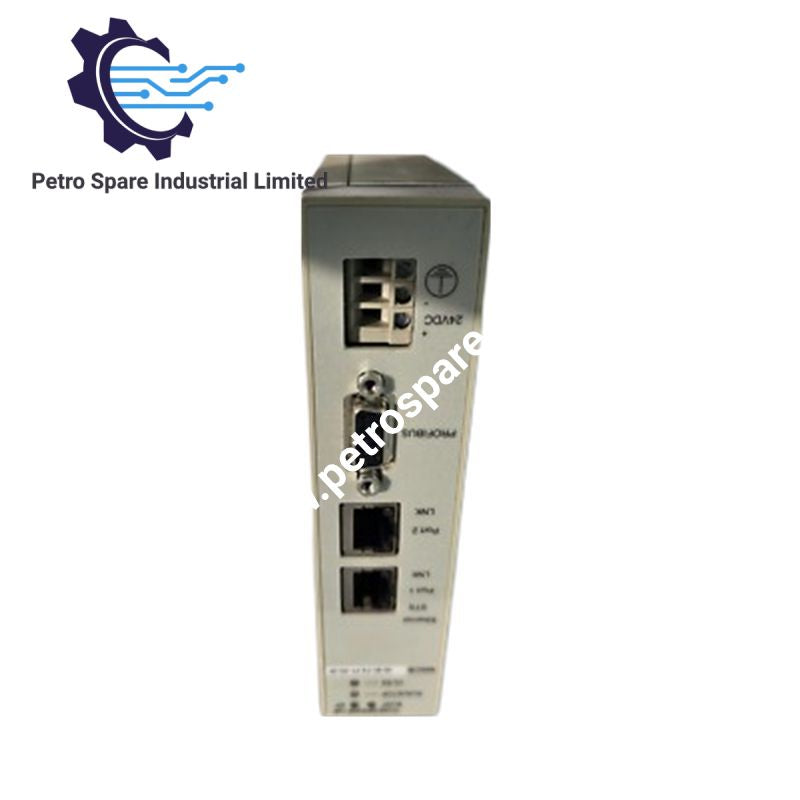

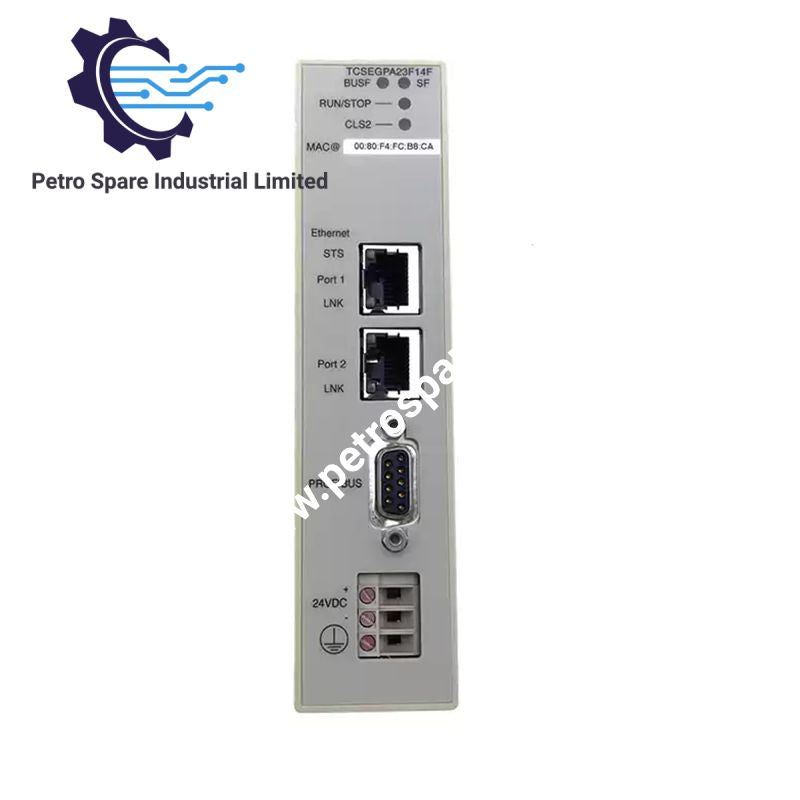

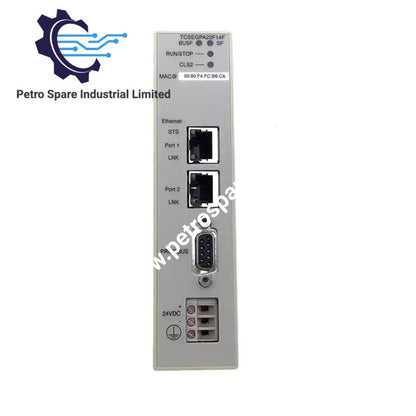

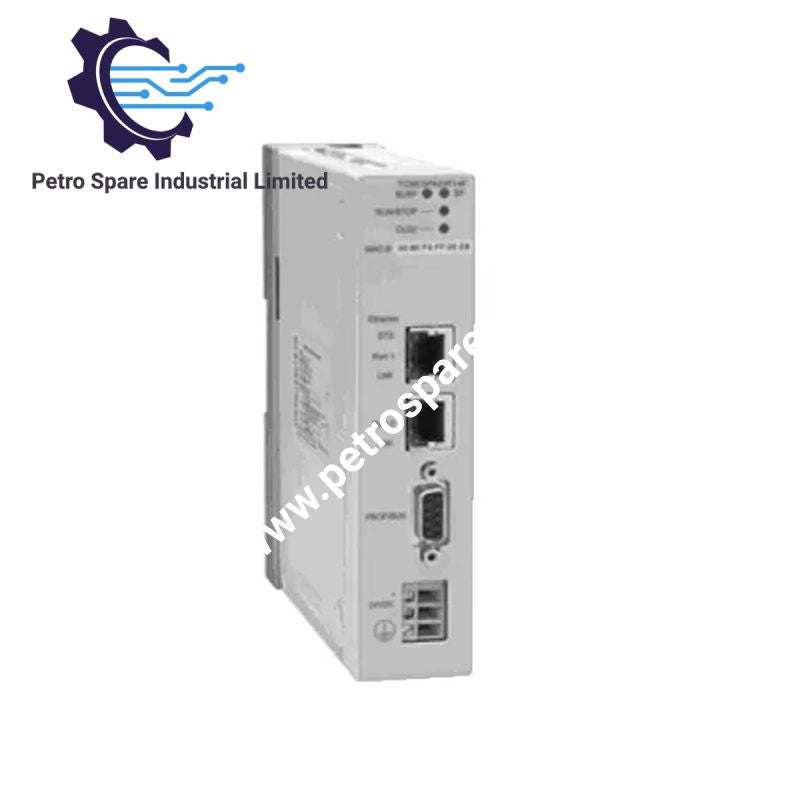

TCSEGPA23F14F

Configured for Ethernet Modbus TCP to Profibus DP V1 communication in Modicon PLC architectures, the Schneider Electric TCSEGPA23F14F (TCSEGPA23F14F Profibus DP V1 remote master module) provides direct network data exchange between Premium, Quantum, M340, and M580 PLC platforms through an industrial bus structure.

Hardware Specifications

Parameter	Specification
Model	TCSEGPA23F14F
Brand	Schneider Electric
Product Type	Profibus DP V1 Remote Master Module
Series	Profibus DP
Origin	Canada
Weight	0.62 kg
Dimensions	5.500 cm x 18.200 cm x 26.500 cm
Operating Temp	0 to 60 deg C
Power Consumption	200 mA at 24 VDC external supply
Communication Gateway	Ethernet Modbus TCP to Profibus DP V1 gateway
Compatible PLC Platforms	Modicon M340, M580, Quantum, Premium
Physical Interface	RS485
Transmission Mode	NRZ
Ethernet Interface	2 x Ethernet TCP/IP RJ45 Modbus TCP
Profibus Interface	SUB-D 9 Profibus DP V1
Profibus Transmission Rate	Up to 12 Mbit/s
Modbus TCP Transmission Rate	10 to 100 Mbit/s
Maximum Server Devices	126
Input Channels	2
Output Channels	2
Module Format	Standard
Humidity Range	10 to 95% without condensation
Operating Altitude	<= 2000 m

Profinet / EtherNet-IP Deterministic Networks and Bus Communication

The TCSEGPA23F14F implements Ethernet Modbus TCP communication with Profibus DP V1 fieldbus conversion functions. The module provides Profibus DP Class 1 and Class 2 master services, including slave configuration verification during power-up, diagnostic data transfer, DP slave I/O read/write operations, Sync and Freeze commands, and acyclic DP V1 read/write communication.

The integrated dual Ethernet RJ45 ports support Modbus TCP network connection, while the RS485-based Profibus interface maintains communication with DP field devices through shielded twisted-pair cabling. The module operates as an I/O scanner interface between Modicon PLC controllers and Profibus DP V1 devices.

Frequently Asked Questions

Q: Which PLC platforms can be connected with the TCSEGPA23F14F?
A: The module supports Modicon Premium, Quantum, M340, and M580 PLC platforms through Ethernet Modbus TCP communication.

Q: What physical interface is used for Profibus DP V1 communication?
A: The Profibus DP V1 connection uses an RS485 physical interface through a SUB-D 9 connector.

Q: Does the module support Profibus master functions?
A: Yes. The module supports Class 1 and Class 2 Profibus DP master operation, including diagnostic monitoring and acyclic DP V1 communication.

Field Installation Guidelines

Install the module in a standard industrial control cabinet environment with suitable protection against conductive contamination and mechanical vibration.

Connect the Ethernet Modbus TCP cables using shielded twisted-pair wiring and maintain proper cable routing separation from high-voltage power conductors. The Profibus DP connection requires shielded twisted-pair cable with correct RS485 termination practices to maintain signal integrity.

Verify the 24 VDC external power supply polarity before energizing the module. Connect cable shields according to the control system grounding design to reduce electromagnetic interference. Confirm PLC communication settings, Profibus slave configuration, and network addressing before commissioning.

---
