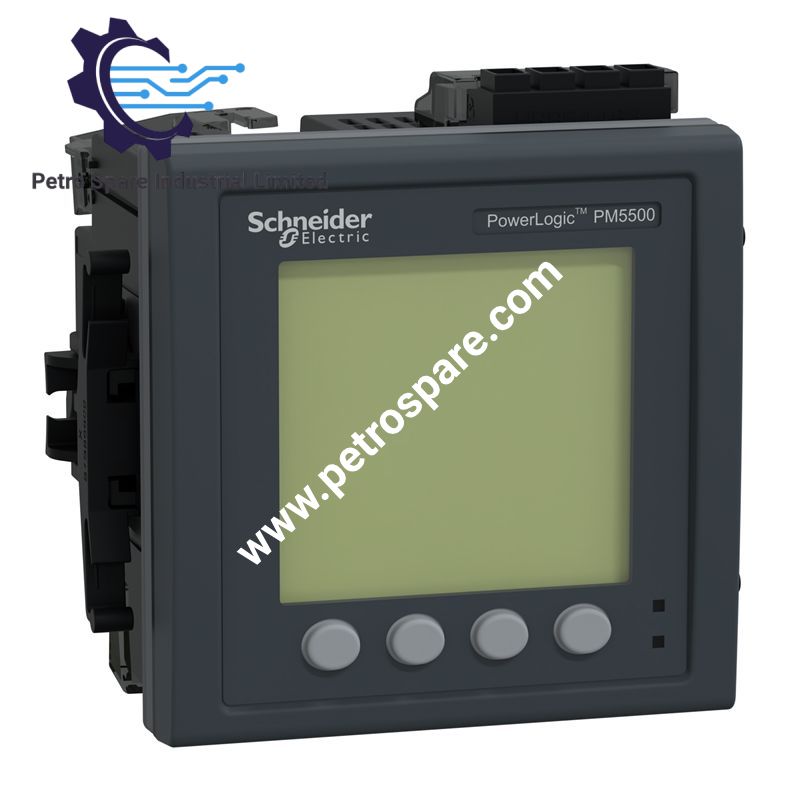

Configured for multi-parameter electrical measurement in PowerLogic PM5000 systems, the Schneider Electric METSEPM5560 (PM5560 power meter) provides direct measurement of voltage, current, frequency, power factor, energy, active and reactive power, with harmonic analysis through the 63rd harmonic and Ethernet/RS485 communications.

Hardware Specifications

Parameter	Specification
Model	METSEPM5560
Base Model	PM5560
Brand	Schneider Electric
Product Type	Power Meter
Product Family	PowerLogic PM5000
Origin	India
Weight	450 g
Dimensions	96 mm W x 72 mm D x 96 mm H
Mounting	Flush-mounted
Display	Backlit LCD, 128 x 128 pixels
Operating Temp	-25 to 70 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	16 VA at 480 V
Supply Voltage	90 to 528 VAC, 45 to 65 Hz; 100 to 300 VDC
Network Frequency	50 / 60 Hz
Line Rated Current	1 A or 5 A
Measurement Voltage	20 to 400 VAC phase-neutral; 20 to 828 VAC phase-phase
Current Measurement Range	50 to 10000 mA
Frequency Range	45 to 65 Hz
Accuracy Class	Class 0.2S active energy, IEC 62053-22
Sampling Rate	128 samples/cycle
Harmonic Measurement	Up to 63rd harmonic
Digital Inputs	4
Digital Outputs	2
Memory	1.1 MB
Communication	RS485, Ethernet
Serial Protocols	Modbus RTU, ASCII, JBUS
Ethernet Protocols	Modbus TCP/IP, BACnet/IP, DNP3 over Ethernet
Ethernet Speed	10/100 Mbit/s
Ethernet Connection	2 x RJ45, daisy-chain capable
Web Services	Web server, real-time data viewing, diagnostics, alarm e-mail notification
Protection	IP54 front/display, IP30 rear
Humidity	5 to 95 % RH, non-condensing at 50 deg C
Operating Altitude	Up to 3000 m

Industrial Ethernet and Power Quality Measurement

The METSEPM5560 combines electrical metering with Ethernet and serial communications. The RS485 interface supports two-wire Modbus RTU, ASCII and JBUS operation, while the Ethernet interfaces support Modbus TCP/IP, BACnet/IP and DNP3 over Ethernet. Ethernet/serial gateway functionality permits communication between the serial and Ethernet sides.

Power-quality measurement extends through the 63rd harmonic. The meter samples at 128 samples/cycle and measures voltage, current, frequency, power factor, energy, active power and reactive power. Neutral current is measured directly, while ground current can be calculated. Four digital inputs provide WAGES monitoring functions, and two digital outputs provide control signaling.

Frequently Asked Questions

Q: What supply voltage can the METSEPM5560 accept?
A: The specified supply range is 90 to 528 VAC at 45 to 65 Hz or 100 to 300 VDC.

Q: What communication interfaces are provided?
A: The meter provides an RS485 interface and two RJ45 Ethernet ports. Supported protocols include Modbus RTU, Modbus ASCII, JBUS, Modbus TCP/IP, BACnet/IP and DNP3 over Ethernet.

Q: What electrical configurations are supported?
A: The meter supports single-phase plus neutral, three-phase, and three-phase plus neutral configurations, with 1 A or 5 A line-rated current inputs.

Field Installation Guidelines

• Install the meter as a flush-mounted device using the specified panel mounting arrangement.
• Maintain separation between voltage/current measurement wiring and communication wiring to reduce conducted interference.
• Connect current transformer circuits according to the applicable current-input wiring arrangement and verify polarity before energization.
• Use the RS485 two-wire connection with appropriate communication cable practices and termination according to the network topology.
• Route Ethernet cables separately from high-current or high-noise conductors where practical.
• Bond cable shields according to the plant grounding and EMC design. Avoid creating unintended ground loops.
• Verify the measurement voltage, CT secondary rating, phase sequence and neutral connection before applying operating voltage.
• Confirm the required Modbus, BACnet or DNP3 addressing and communication parameters before connecting the meter to the control network.
• Keep the rear of the meter within the specified IP30 protection conditions and the front panel within its IP54 protection conditions.
• Verify ambient temperature and humidity remain within the specified operating limits.

---
