MC-4/11/10/400

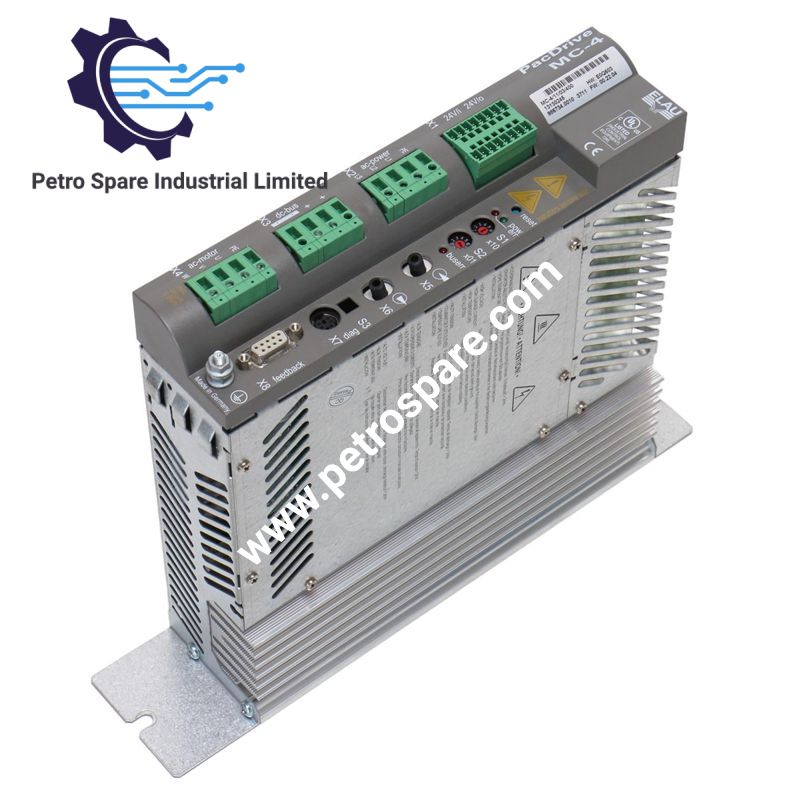

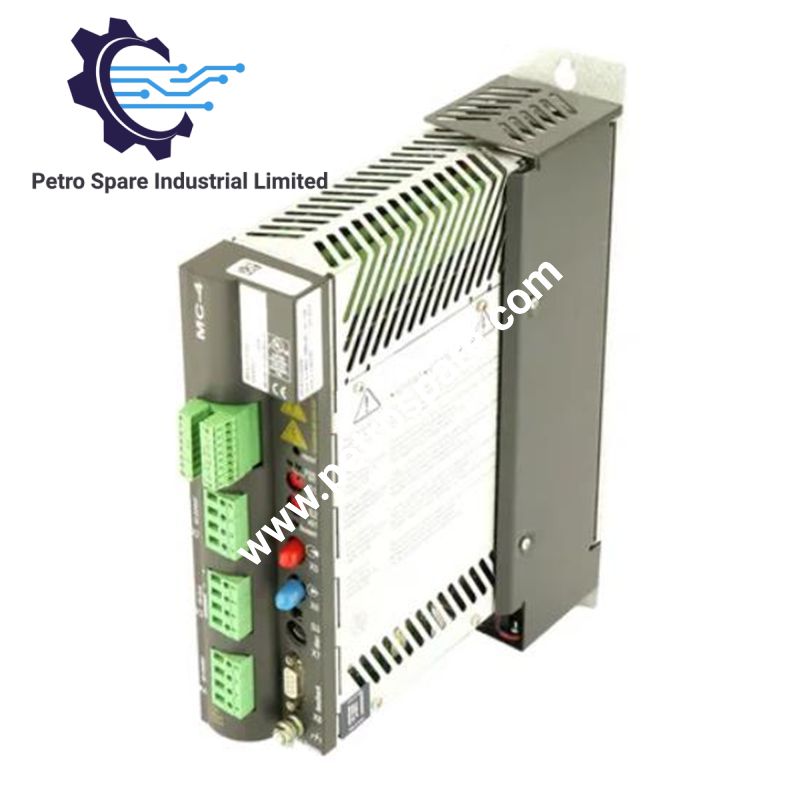

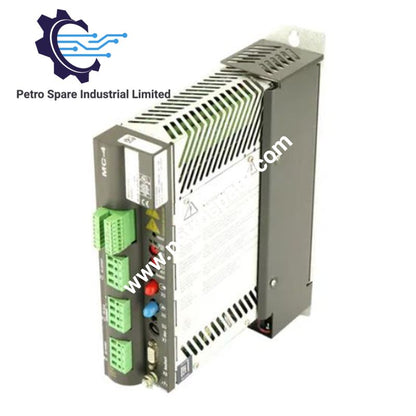

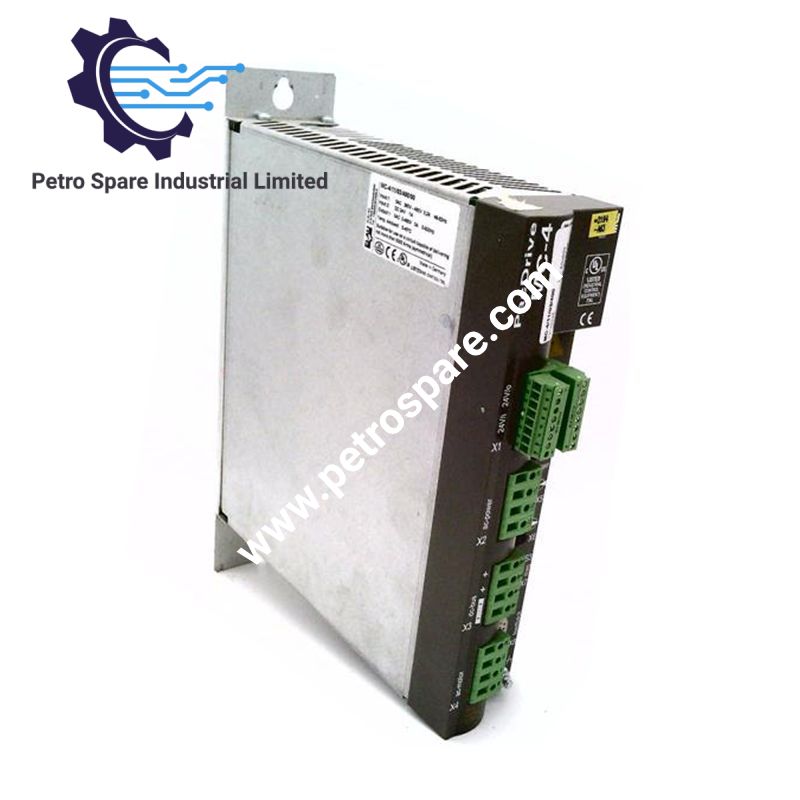

The Schneider Electric MC-4/11/10/400, also cataloged as the MC-4/11/10/400 servo drive, provides three-phase motor power conversion and closed-loop position, velocity, and torque control within the PacDrive MC-4 motion control system. It accepts 380-480 V AC supply power and provides up to 10 A RMS continuous output current, with SERCOS II fiber optic communication and EnDat 2.2, HIPERFACE DSL, or Resolver feedback interfaces.

Hardware Specifications

Parameter	Specification
Model	MC-4/11/10/400
Brand	Schneider Electric
Series	PacDrive MC-4
Product Type	Digital Servo Drive
Rated Power	4 kW
Input Voltage	3-phase 400 V AC +/-10%
Supply Voltage	380-480 V AC
Supply Frequency	50/60 Hz
Continuous Current	10 A RMS
Peak Current	33 A, 300% overload
Control Voltage	24 V DC, -15% / +25%
Control Current	1 A
Electronics Power Consumption	Approx. 12 W
Output Voltage	0-480 V AC
Output Frequency	0-600 Hz
Control Modes	Position, velocity, torque
Communication Interface	SERCOS II, fiber optic
Feedback Interfaces	EnDat 2.2, HIPERFACE DSL, Resolver
Switching Frequency	16 kHz
Cooling	Internal fan
Protection Rating	IP20
Operating Temp	0 deg C to 55 deg C
Weight	9.04 lb

PacDrive MC-4 Motion Control and Drive Interface

The MC-4/11/10/400 converts the 380-480 V AC three-phase input into a controlled 0-480 V AC motor output with an output frequency range of 0-600 Hz. Its 10 A RMS continuous current rating and 33 A peak current capability support closed-loop motor control under defined overload conditions.

SERCOS II provides the fiber optic motion communication interface. The drive supports position, velocity, and torque control modes and accepts feedback from EnDat 2.2, HIPERFACE DSL, and Resolver devices. The 16 kHz switching frequency defines the inverter switching operation, while internal fan cooling removes heat generated during drive operation.

Frequently Asked Questions

Q: What feedback interfaces are supported by the MC-4/11/10/400?
A: The drive supports EnDat 2.2, HIPERFACE DSL, and Resolver feedback interfaces.

Q: What are the continuous and peak output current ratings?
A: The continuous output current is 10 A RMS. The specified peak current is 33 A with a 300% overload rating.

Q: What communication interface is provided for motion control?
A: The drive uses a SERCOS II fiber optic interface for motion communication.

Field Installation Guidelines

Install the servo drive in an enclosure suitable for its IP20 protection rating. Maintain the required electrical clearances and provide sufficient airflow around the internal fan cooling path.

Connect the three-phase AC supply according to the applicable MC-4 installation documentation and verify the supply voltage before energizing the unit. The 24 V DC control supply should be wired separately from the motor power circuit.

Route motor power cables separately from feedback and communication wiring to reduce electromagnetic coupling. Use the specified feedback cable and connector arrangement for the selected EnDat 2.2, HIPERFACE DSL, or Resolver interface.

For the SERCOS II fiber optic connection, observe the specified fiber routing and bend-radius requirements. Do not place fiber cables under mechanical stress or route them through areas exposed to excessive heat or crushing forces.

Verify protective grounding, cable shielding, connector seating, and motor feedback polarity before commissioning. Confirm that the connected motor and feedback device are compatible with the configured servo-drive parameters.

---
