MC-4/11/03/400

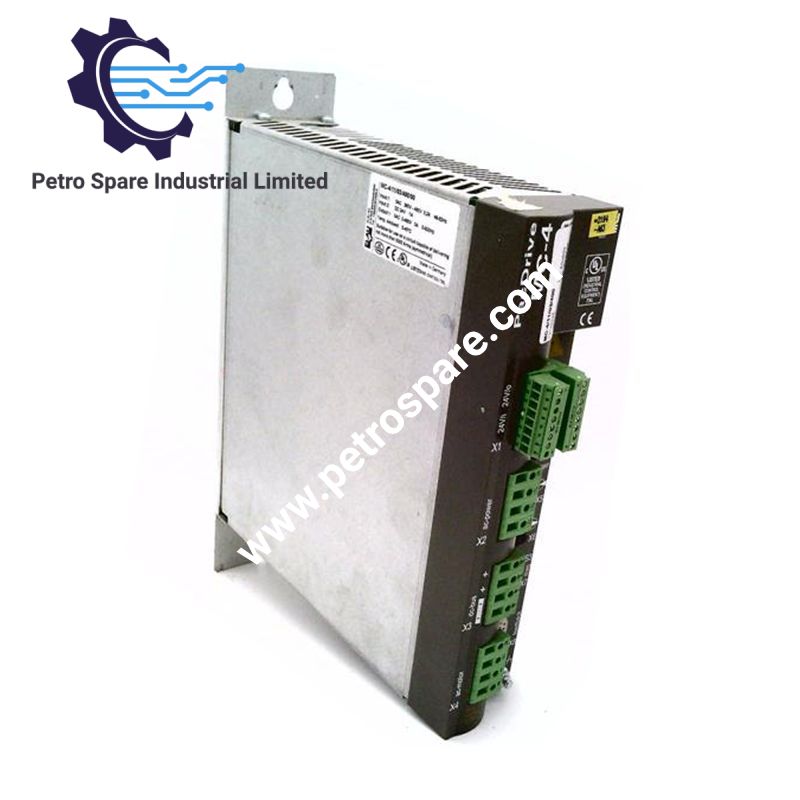

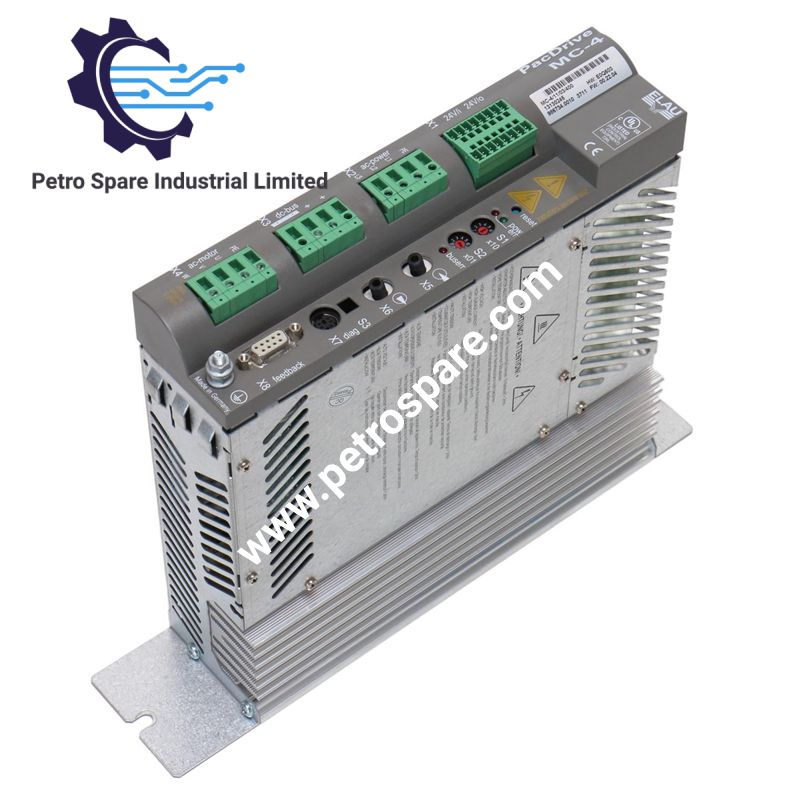

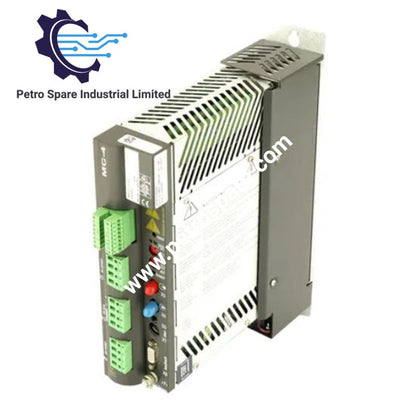

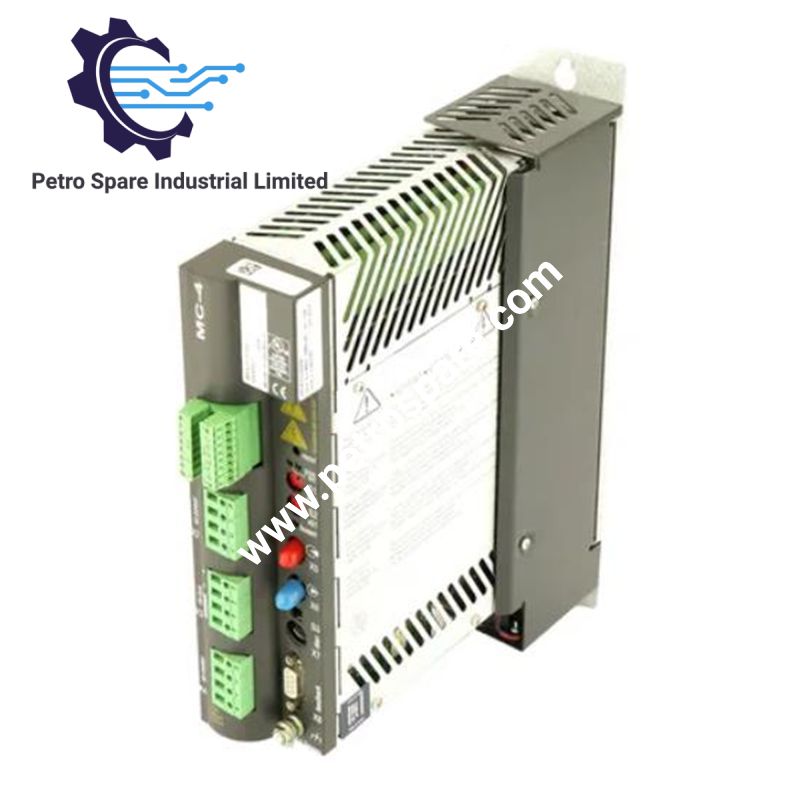

Configured for three-phase motor control from a 380-480 VAC supply, the Schneider Electric MC-4/11/03/400 (MC-4/11/03/400 Servo Drive) provides controlled AC output from 0-480 VAC with an output frequency range of 0-600 Hz. The unit uses a 24 VDC control supply and is identified with VDM01U30AQ00 and 13130245.

Hardware Specifications

Parameter	Specification
Model	MC-4/11/03/400
Brand	Schneider Electric
Product Type	Servo Drive
Series	PowerDrive Motion Controller
Part Number	13130245
VDM Code	VDM01U30AQ00
Phases	3
Rated Connection Voltage	AC 380 V (-10%) to 480 V (+10%)
Rated Current	3 A
Control Voltage	DC 24 V (-15% / +25%)
Control Current	1 A
Electronics Supply	Approx. 12 W
Output Voltage	0-480 VAC
Output Frequency	0-600 Hz
Weight	6.61 lbs
Power Consumption	Approx. 12 W electronics supply

Firmware and Drive Control Characteristics

The MC-4/11/03/400 is a three-phase PowerDrive Motion Controller with a rated connection voltage of AC 380-480 V and a rated current of 3 A. Its control electronics operate from a nominal 24 VDC supply. The available drive output is specified as 0-480 VAC with a frequency range extending to 600 Hz.

Firmware identification and compatibility should be verified against the exact drive hardware revision before applying a firmware image. The supplied data identifies the unit as VDM01U30AQ00; no specific firmware revision or upgrade procedure is provided.

Frequently Asked Questions

Q: What is the rated input voltage range of the MC-4/11/03/400?
A: The rated connection voltage is AC 380 V (-10%) to 480 V (+10%), three phase.

Q: What control supply does the drive require?
A: The control supply is DC 24 V with a specified tolerance of -15% / +25%, and the listed control current is 1 A.

Q: What output range is specified for the drive?
A: The supplied specifications list an output voltage range of 0-480 VAC and an output frequency range of 0-600 Hz.

Field Installation Guidelines

Mount the drive on a suitable industrial enclosure surface with adequate mechanical support for its 6.61 lb mass. Confirm that the incoming three-phase supply matches the specified AC 380-480 V range before energization.

Route power conductors separately from low-level control and signal wiring where practical. Keep the 24 VDC control wiring separated from high-voltage motor conductors to reduce electrical interference.

Terminate protective grounding in accordance with the applicable electrical installation standard and the drive installation documentation. Verify supply polarity and voltage at the control terminals before applying the 24 VDC control supply.

Do not connect or disconnect motor or power wiring while the drive is energized. Verify the exact hardware and firmware revision before performing firmware-related service.

---
