MA0329001

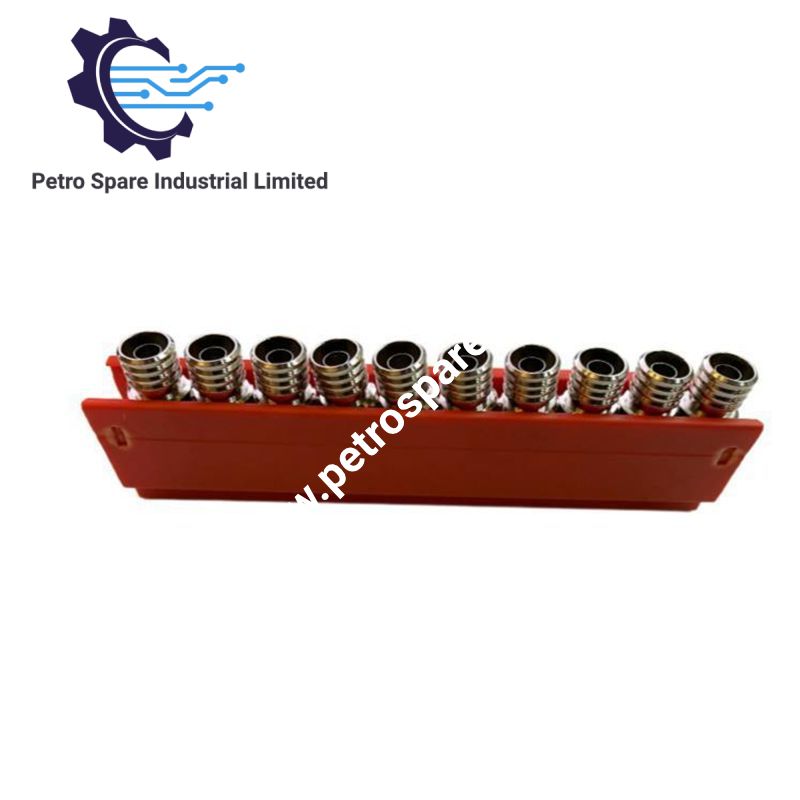

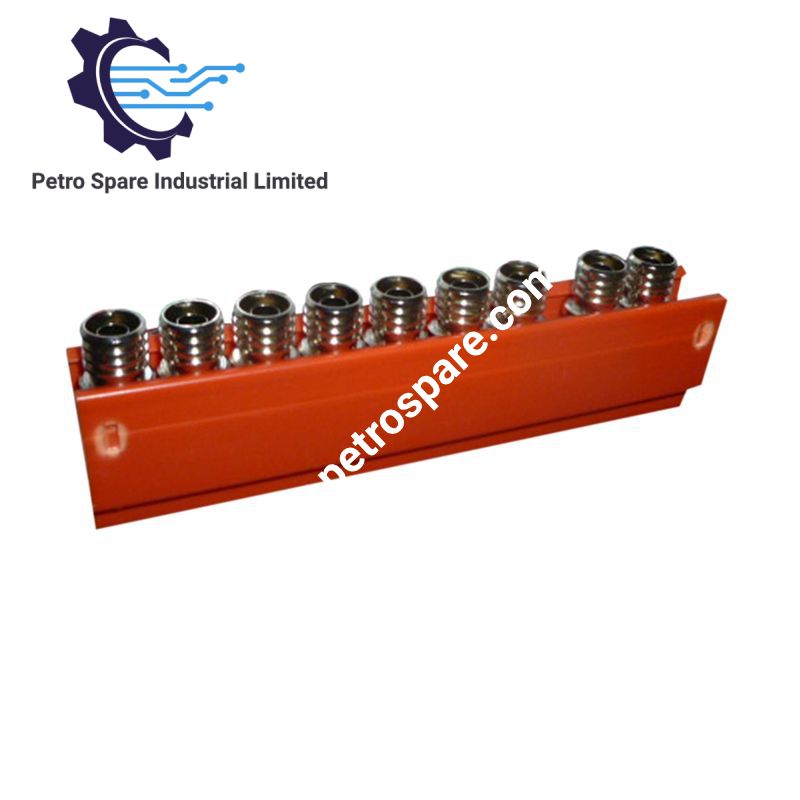

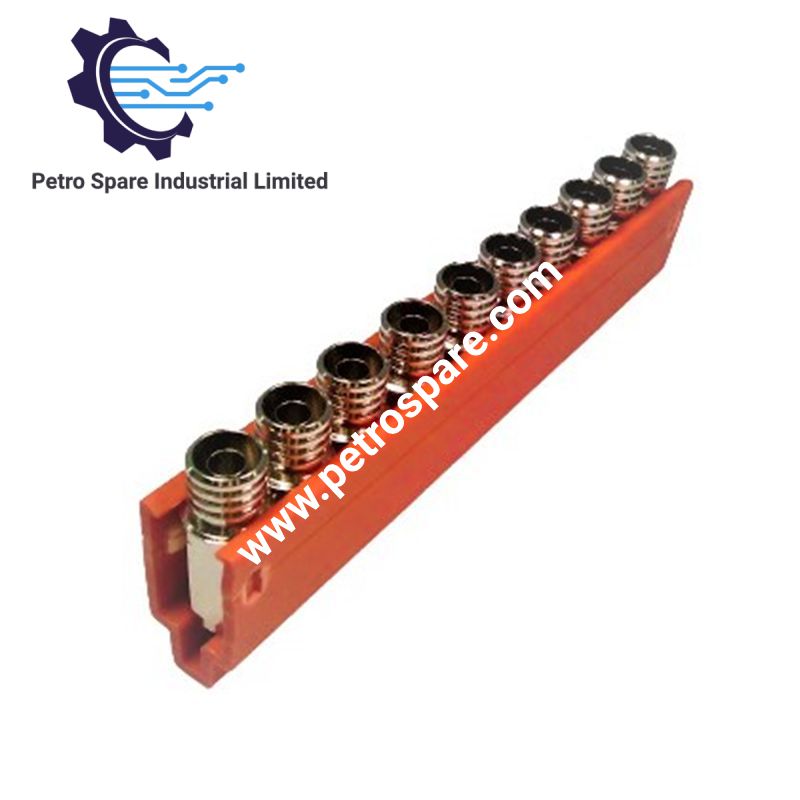

Configured for RG-6 cable termination in the Modicon Quantum automation platform, the Schneider Electric MA0329001 (MA0329001 F connector cassette) provides a passive connection interface for the specified coaxial cable type. The accessory is supplied as a set of 10 connector cassettes and is associated with the Modicon Quantum connection accessory range.

Hardware Specifications

Parameter	Specification
Model	MA0329001
Brand	Schneider Electric
Product Range	Modicon Quantum automation platform
Product Type	F connector cassette
Accessory / Separate Part Type	Connector
Accessory Category	Connection accessories
Cable Destination	RG-6 cable
Quantity per Set	10
Package Quantity	1
Weight	161 g
Dimensions	160 x 165 x 20 mm
Power Consumption	Passive connector; no electrical power consumption specified
GTIN	3595862372671

Modicon Quantum Coaxial Connection

MA0329001 is specified as an F connector cassette for RG-6 cable within the Modicon Quantum automation platform. The component provides the mechanical termination interface rather than an active signal-processing function. No separate power supply, channel electronics, signal conditioning, or protocol conversion is specified for this accessory.

The supplied data identifies the accessory as a connection component with a quantity of 10 per set. Cable preparation and connector engagement should follow the applicable Modicon Quantum installation documentation for the associated RG-6 cable assembly.

Frequently Asked Questions

Q: Does MA0329001 require an external power supply?
A: No. The supplied specifications identify MA0329001 as a passive connector accessory, with no power consumption or external power requirement specified.

Q: What cable type is MA0329001 intended for?
A: The specified cable destination is RG-6 cable.

Q: Is MA0329001 still an active Schneider Electric product?
A: No. The supplied product information states that it was discontinued on January 31, 2023, with end of service also listed as January 31, 2023.

Field Installation Guidelines

• Verify that the cable being terminated is RG-6 and matches the connector application specified for the Modicon Quantum installation.
• Prepare the coaxial cable according to the applicable connector installation procedure before inserting it into the F connector cassette.
• Maintain the coaxial shield and conductor geometry during cable preparation to avoid mechanical deformation of the termination.
• Route the coaxial cable separately from high-current power wiring and high-noise switching conductors where practical.
• Maintain the cable shielding continuity through the connector assembly and ensure the associated grounding arrangement follows the system installation documentation.
• Inspect the completed connection for secure mechanical engagement before system commissioning.
• Because MA0329001 is discontinued and the supplied data does not specify an operating temperature range, installation should follow the environmental limits of the associated Quantum hardware and cable assembly.

---
