LTMR100EBD

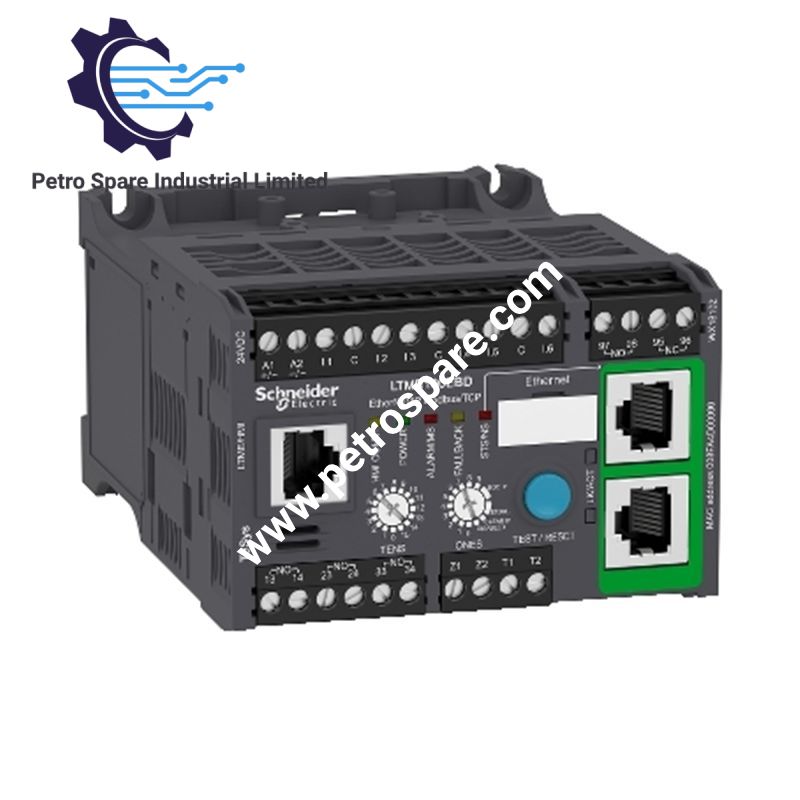

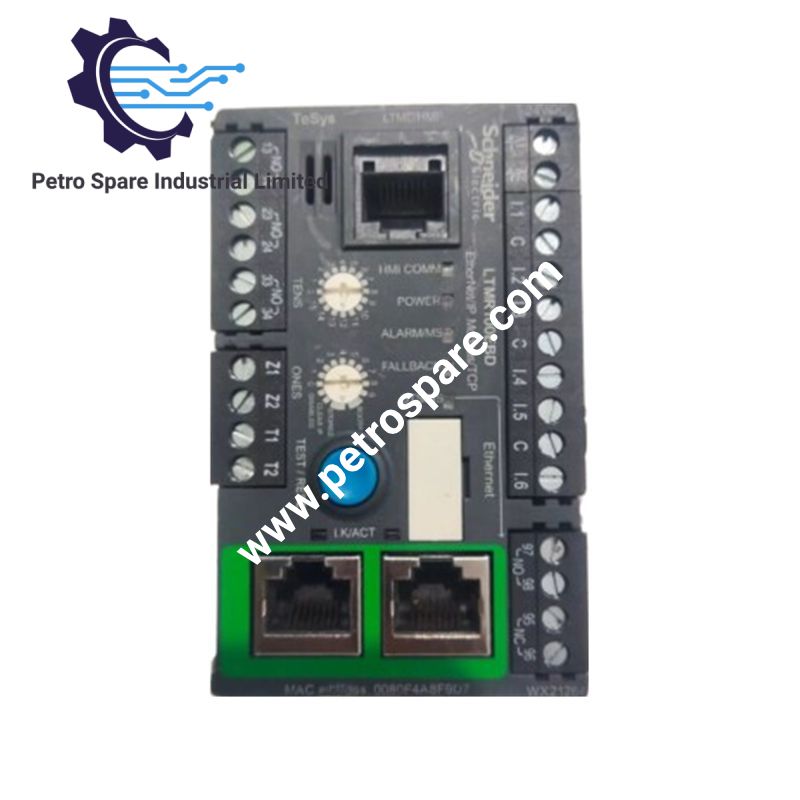

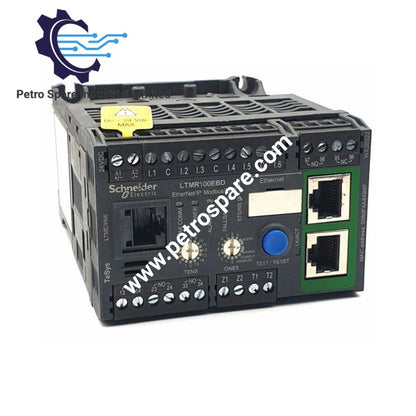

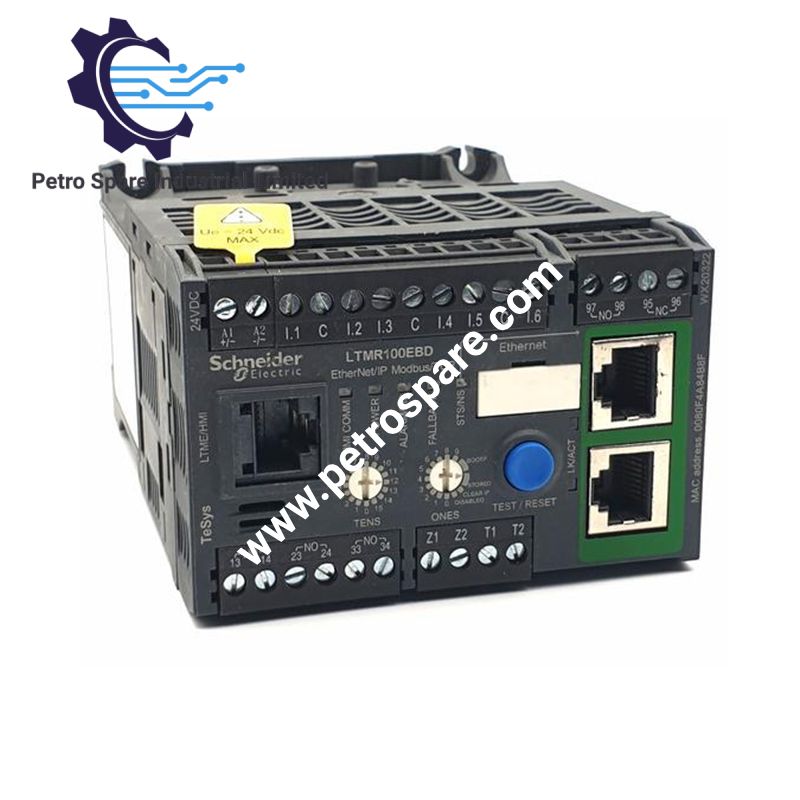

Configured for motor monitoring, protection, and control execution in TeSys T motor management systems, the Schneider Electric LTMR100EBD (LTMR100EBD Motor Controller) provides direct physical and electrical management of current measurement, logic I/O, and Ethernet communication functions.

Hardware Specifications

Parameter	Specification
Model	LTMR100EBD
Brand	Schneider Electric
Origin	CN
Product Type	Motor Controller
System Series	TeSys T
Motor Current Range	5 to 100 A
Rated Supply Voltage	24 VDC
Current Consumption	56 to 127 mA
Communication Protocol	EtherNet/IP, Modbus TCP
Communication Interface	Ethernet IEEE 802.3, RJ45, 10/100 Mbit/s
Logic Inputs	6 discrete inputs
Logic Outputs	3 relay outputs
Fault Signal Output	1 NO + 1 NC relay contact
Current Measurement	3 phase current measurement through integrated current transformers
Ground Current Measurement	Internal or external ground sensor input
Voltage Measurement	Supported through optional expansion module
Power Measurement	Supported through optional expansion module
Insulation Voltage	690 V
Impulse Withstand Voltage	6 kV for current/voltage circuits
Short Circuit Withstand	100 kA according to EN/IEC 60947-4-1
Width	91 mm
Height	61 mm
Depth	122.5 mm
Weight	0.53 kg
Operating Temp	-20 to 60 deg C
Storage Temp	-40 to 80 deg C
Power Consumption	24 VDC supply, 56 to 127 mA current consumption
Protection Functions	Locked rotor, overload, thermal overload, earth leakage, phase failure, phase unbalance, load fluctuation
Protection Degree	IP20

EtherNet/IP and Modbus TCP Communication Architecture

The LTMR100EBD integrates Ethernet communication through an RJ45 interface using EtherNet/IP and Modbus TCP protocols. The controller exchanges motor operating data, diagnostic information, fault records, and control commands with automation systems through Ethernet IEEE 802.3 communication.

The TeSys T controller supports deterministic data transfer for motor management functions, including current monitoring, trip context information, event recording, operating time counters, and motor control command logging.

Firmware compatibility is managed through the TeSys T firmware package supporting Ethernet, Profibus, CANopen, DeviceNet, and Modbus communication variants.

Frequently Asked Questions

Q: What motor parameters are measured by the LTMR100EBD?
A: The controller measures phase currents I1, I2, and I3 RMS, average current, earth fault current, temperature, imbalance current, and related motor operating conditions.

Q: Does the LTMR100EBD provide direct Ethernet communication?
A: Yes. The controller provides EtherNet/IP and Modbus TCP communication through an Ethernet IEEE 802.3 RJ45 interface.

Q: What type of logic interfaces are available on this controller?
A: The unit provides 6 logic inputs, 3 relay logic outputs, and a dedicated relay output for fault signaling.

Field Installation Guidelines

Install the LTMR100EBD on a suitable control panel mounting structure with sufficient clearance for terminal access and Ethernet cable routing.

Connect the 24 VDC supply according to the specified polarity requirements. Maintain separation between communication wiring, motor power conductors, and high-current switching circuits to reduce electrical interference.

Use shielded Ethernet cabling where required by the installation environment and connect cable shields according to the plant grounding practice. Verify terminal tightening torque and conductor preparation before commissioning.

Current sensing wiring must follow the motor circuit configuration requirements. Confirm phase conductor routing through the integrated current transformers and verify earth fault sensor connections before applying operating voltage.

The LTMR100EBD product is scheduled for discontinuation on Sep 30, 2026, with end-of-service on Jan 31, 2027. Recommended replacement groups include TeSys Tera components such as LTMTEBD with compatible current sensor modules.

---
