LC1F115

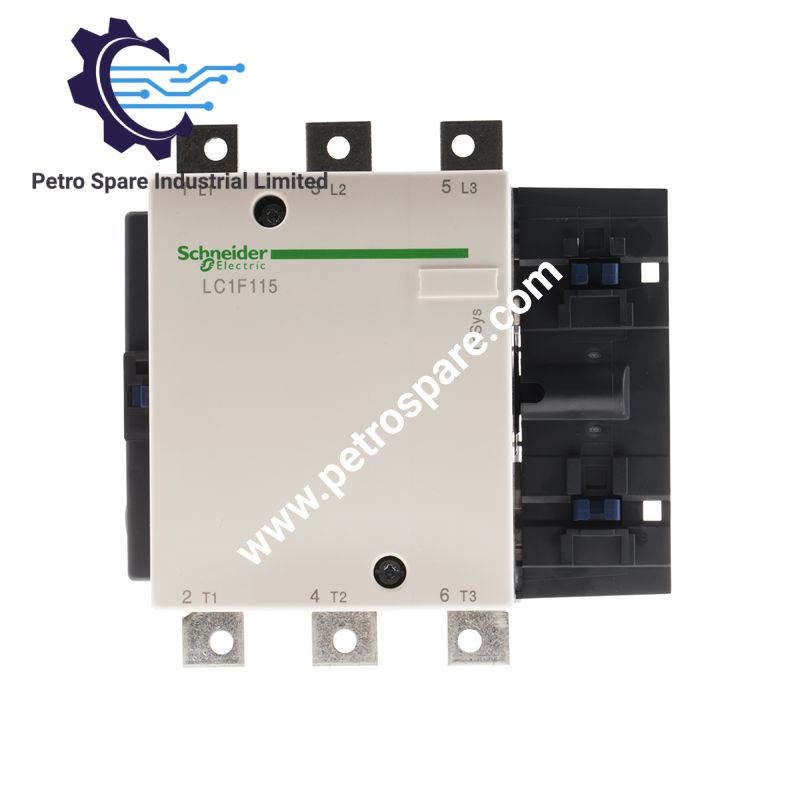

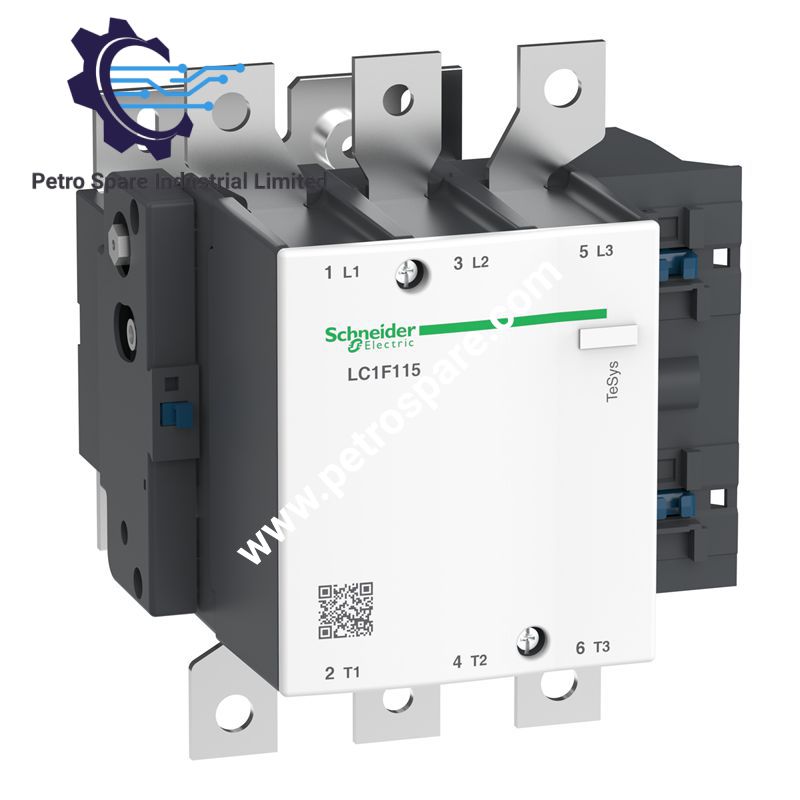

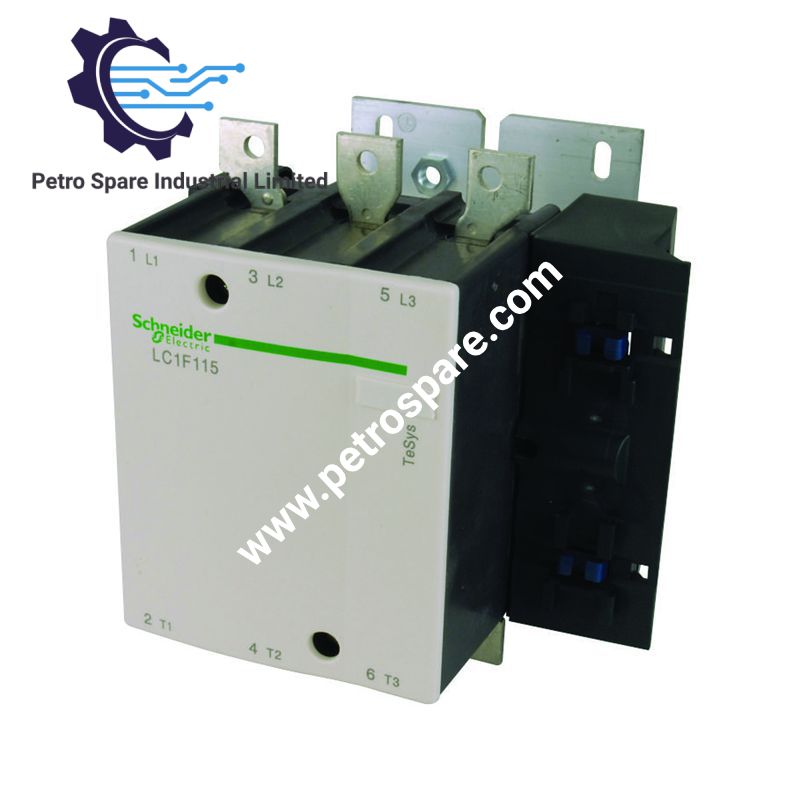

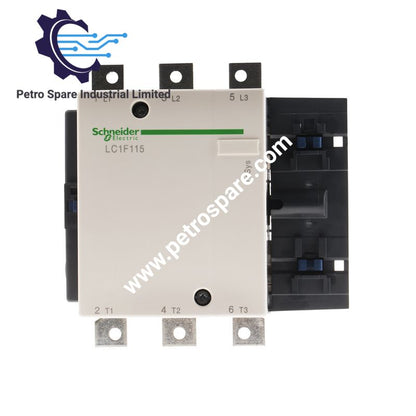

Configured for motor switching and power circuit isolation in TeSys F contactor assemblies, the Schneider Electric LC1F115 (LC1F Contactor) provides direct electromagnetic switching execution for three-phase AC loads. This contactor body is supplied without a coil, allowing selection of a compatible LX series coil according to the required control circuit voltage.

Hardware Specifications

Parameter	Specification
Model	LC1F115
Brand	Schneider Electric
Origin	CZ
Weight	3.83 kg
Dimensions	162 x 163.5 x 171 mm
Operating Temp	-40 to 60 deg C
Power Consumption	Pole dissipation: 5 W AC-3; 15 W AC-1
Product Type	Contactor
Series	TeSys F
Contact Configuration	3P (3NO)
Rated Operational Current	115 A at <=440 V AC-3, 55 deg C
Rated Operational Voltage	<=690 V AC 50/60 Hz; <=460 V DC
Motor Power Rating	55 kW at 380-400 V AC-3
Rated Insulation Voltage	1000 V IEC 60947-4-1
Rated Impulse Withstand Voltage	8 kV
Conventional Thermal Current	200 A at 40 deg C
Short-Time Withstand Current	1100 A for 10 s at 40 deg C
Mechanical Durability	10 Mcycles
Maximum Operating Rate	2400 cycles/hour at 55 deg C
Mounting Type	Plate mounting
Protection Degree	IP2X front face with shrouds

TeSys F Electromagnetic Switching Characteristics

The LC1F115 uses a mechanically actuated contact system controlled by a separately selected coil assembly. The main power poles provide three normally open contacts for switching motor and resistive loads. The coil drawer design permits installation of LX series coils and replacement without changing the main contactor body.

The contact path is rated for AC-3 motor duty with a 115 A operational current at 440 V AC. The contactor supports AC-1, AC-3, and AC-4 utilization categories according to IEC 60947-4-1. Power connections are provided through bolted terminals for bars, cables with lugs, or dedicated connectors.

Frequently Asked Questions

Q: Can the LC1F115 operate without an installed coil?
A: No. The LC1F115 is supplied as a contactor body without a coil. A compatible coil must be selected and installed before electromagnetic operation.

Q: What control circuit voltage ranges can be used with LC1F115 coils?
A: The compatible LX coil options support different AC and DC control voltage ranges, including 24 to 575 V AC, 24 to 460 V DC, and other specified LXE coil ranges.

Q: What are the main connection requirements for the power circuit?
A: The power circuit supports bolted connections using lugs, connectors, or bars. Terminal selection must match the installed conductor type and application requirements.

Field Installation Guidelines

Install the LC1F115 on a rigid mounting plate with sufficient clearance for power connections, coil access, and accessory installation. Verify that the selected coil voltage matches the control supply before energizing the contactor.

Power conductors should be routed separately from sensitive control wiring where required. Cable shielding and grounding practices should follow the installation requirements of the connected control system. Terminal tightening must follow the specified torque values to maintain electrical contact integrity.

For motor circuits, confirm upstream protection coordination, conductor sizing, and short-circuit protection ratings before commissioning. The contactor should be installed in an enclosure suitable for the surrounding environmental conditions.

---
