HMISTO512

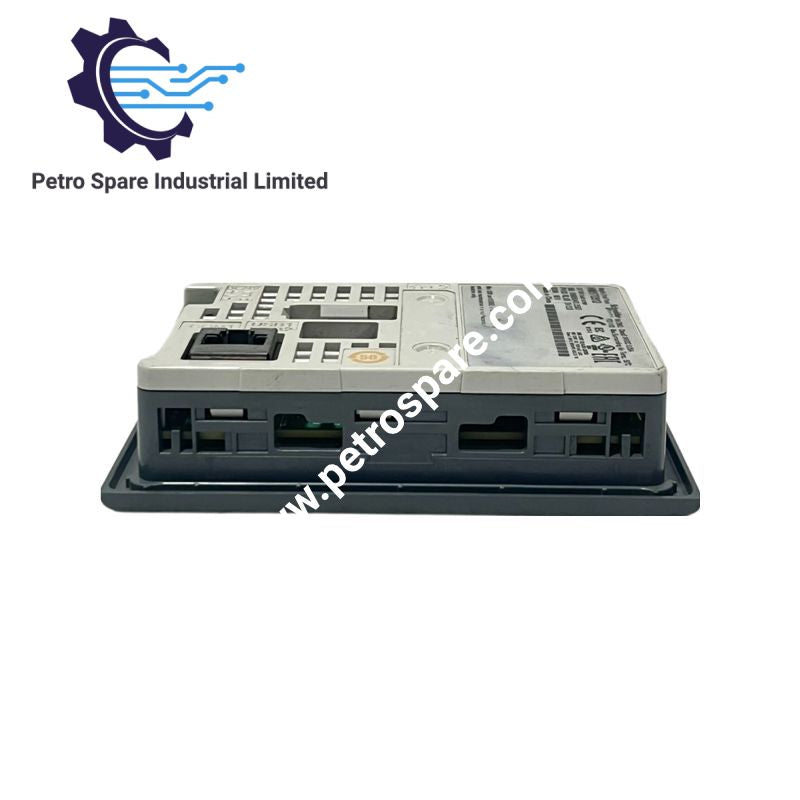

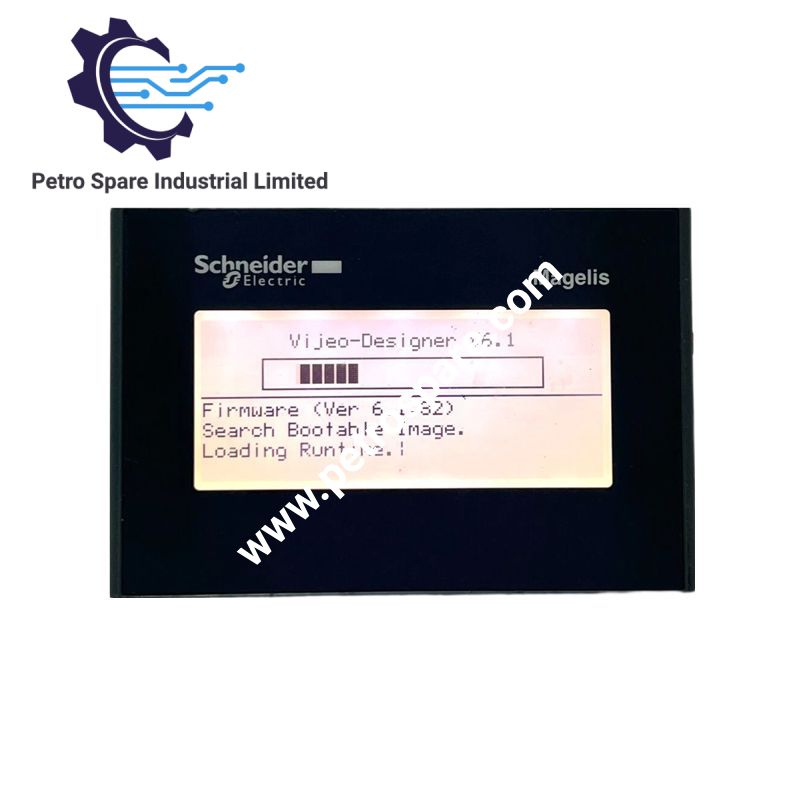

The Schneider Electric HMISTO512, also cataloged as the HMISTO512 Touch Panel Screen, operates as a dedicated hardware component for operator display input and PLC communication within Harmony STO & STU terminal platforms. This 3.4 inch monochrome HMI uses an analogue touch panel, STN LCD display, and serial communication interfaces for direct interaction with automation controllers.

Hardware Specifications

Parameter	Specification
Model	HMISTO512
Brand	Schneider Electric
Origin	Not specified
Product Type	Touch Panel Screen
Series	Harmony STO & STU
Display Type	Backlit monochrome STN LCD
Display Size	3.4 inch
Display Resolution	200 x 80 pixels
Touch Panel Type	Analogue touch panel
Display Colors	White, pink and red monochrome backlight
Processor	CPU RISC
Processor Frequency	333 MHz
Application Memory	16 MB
Backup Data Memory	128 kB
Supply Voltage	24 VDC +/- 20 %
Inrush Current	30 A
Power Consumption	5 W

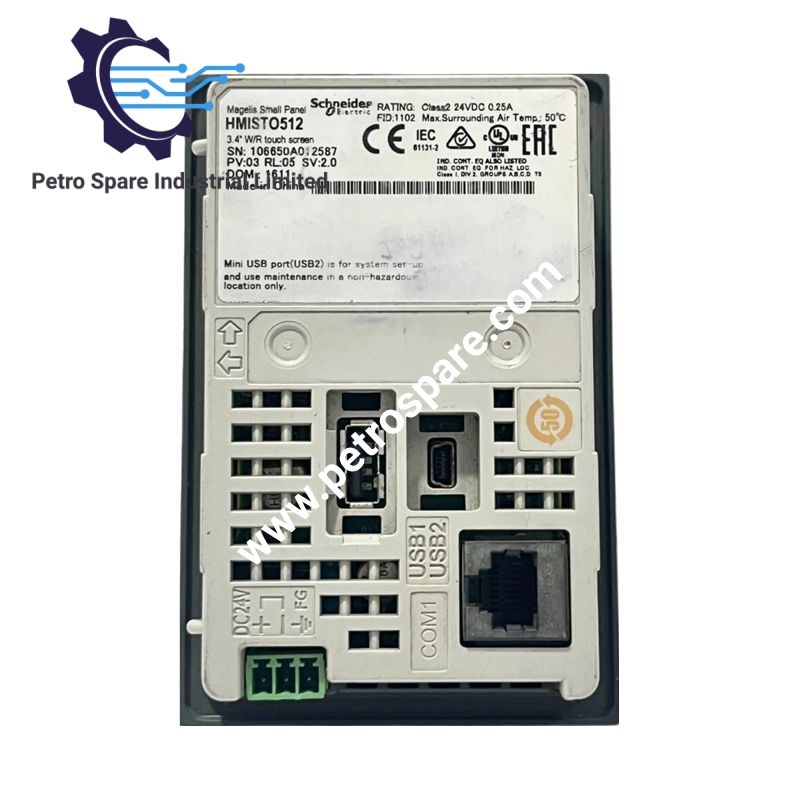

Communication Interface	RJ45 serial link RS232C/RS485, USB 2.0 Type A, USB 2.0 mini-B
Serial Communication Speed	Up to 115.2 kbits/s
Protocol Support	Modbus, Uni-TE, third-party protocols
Dimensions	77.5 x 116.5 x 36.5 mm
Weight	360 g
Operating Temp	0 to 50 deg C
Storage Temp	-20 to 60 deg C
Protection Rating	IP65 front panel, IP20 rear panel
Mounting Method	Two spring clips, 1.6 to 5 mm panel thickness

Profinet / EtherNet-IP Deterministic Network Interface and I/O Communication

The HMISTO512 performs operator interface data exchange through its integrated serial communication channel. The RJ45 COM1 interface supports RS232C and RS485 physical layers with communication rates up to 115.2 kbits/s. The terminal communicates with Schneider Electric controllers and third-party devices through downloadable protocol drivers including Modbus and Uni-TE.

The hardware architecture includes a RISC processor, internal application storage, and USB service ports for project transfer and maintenance operations. The interface manages display refresh, touch input scanning, and controller data exchange through its embedded communication resources.

Frequently Asked Questions

Q: What communication interfaces are available on the HMISTO512?
A: The HMISTO512 provides one RJ45 serial link supporting RS232C and RS485 communication, one USB 2.0 Type A port, and one USB 2.0 mini-B port.

Q: What type of display hardware is integrated into the HMISTO512?
A: The unit uses a 3.4 inch backlit monochrome STN LCD with 200 x 80 pixel resolution and an analogue touch panel.

Q: What are the operating environmental limits of the HMISTO512?
A: The operating temperature range is 0 to 50 deg C, with front panel protection rated IP65 and rear panel protection rated IP20.

Field Installation Guidelines

Install the HMISTO512 in a panel opening compatible with the specified mounting system and secure the enclosure using the supplied spring clips. Verify the panel thickness range before mechanical fixing.

Connect the 24 VDC supply through the removable screw terminal block and maintain correct polarity during wiring. Route serial communication cables separately from high voltage power conductors to reduce electrical interference.

Use shielded communication wiring where required by the installation environment. Connect cable shields according to the control cabinet grounding practice to maintain signal integrity. Ensure USB service connections are protected from mechanical stress during commissioning and maintenance operations.

The HMISTO512 was discontinued on Dec 27, 2019, with end-of-service on Dec 28, 2023. Schneider Electric listed HMISTO715, HMIZSADCO1, and HMISTU655 as replacement-related products within the Harmony STO & STU product family.

---
