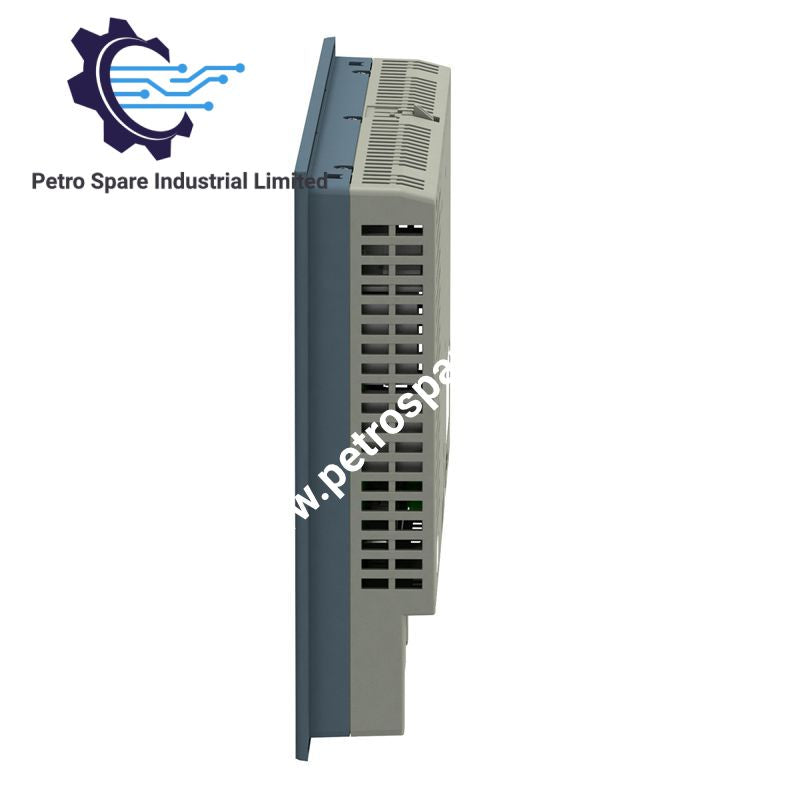

HMIGXO5502

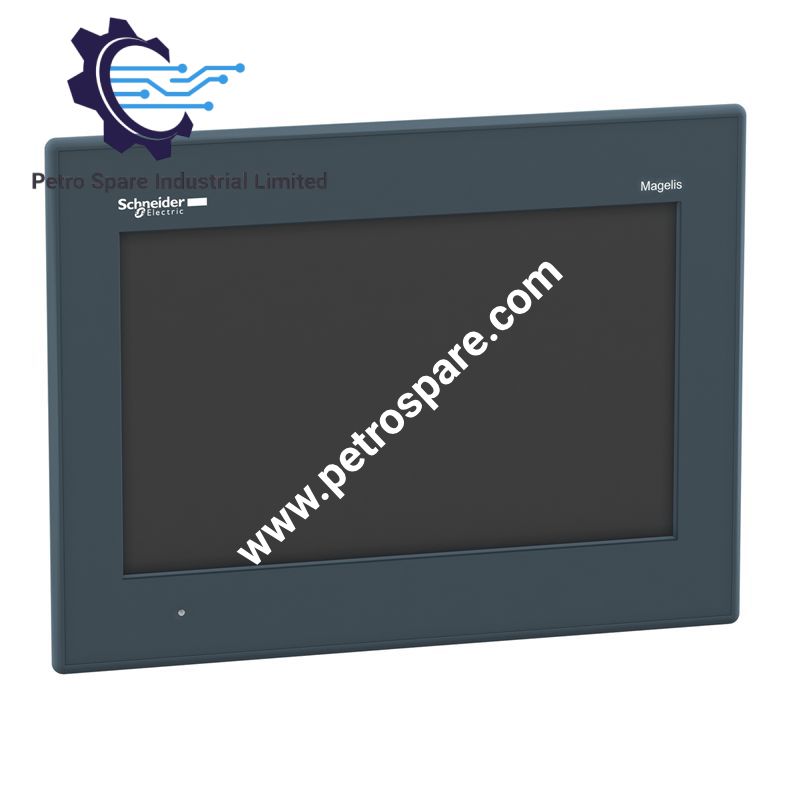

Configured for operator interface display and serial data exchange in the Magelis GXO platform, the Schneider Electric HMIGXO5502 (HMIGXO5502 Touch Panel Screen) provides a 10.2-inch colour TFT LCD interface with 800 x 480 pixel resolution. The unit operates from 24 VDC +/- 20 % and provides RS232C, RS422/RS485, and USB interfaces.

Hardware Specifications

Parameter	Specification
Model	HMIGXO5502
Brand	Schneider Electric
Product Series	Magelis GXO
Product Type	Touch Panel Screen
Display Size	10.2 inch
Display Type	Colour TFT LCD
Display Colour	65536 colours
Pixel Resolution	800 x 480
Brightness	8 levels via touch panel
Application Memory	Flash NAND, 16 MB
Application Run Memory	SDRAM, 64 MB
Data Backup Memory	NVSRAM, 128 kB
Cooling	Natural
COM1	1 x male SUB-D 9, RS232C, 2400...115200 bps
COM2	1 x male SUB-D 9, RS422/RS485, 2400...187500 bps
USB Interfaces	1 x USB Type A, 1 x USB Type Mini B
Software	Vijeo Designer 6.0
Rated Supply Voltage	24 VDC +/- 20 %
Inrush Current	50 A
Power Consumption	7 W
Dimensions	206.8 mm H x 275.8 mm W x 59.8 mm D
Operating Temp	0...50 deg C
Storage Temp	-20...60 deg C
Front Protection	IP65, IEC 60529
Rear Protection	IP20, IEC 60529
Pollution Degree	2
Relative Humidity	85 %
Vibration Resistance	1 gn, 5...150 Hz, 3 axes, IEC 60068-2-6
Shock Resistance	15 gn for 11 ms, IEC 60068-2-27
ESD Resistance	4 kV contact, 8 kV air
EMC Immunity	RF field, EFT, and surge immunity according to stated IEC/EN requirements

Serial Communication and HMI Hardware

The HMIGXO5502 provides two independent serial interfaces for controller and peripheral communication. COM1 uses RS232C through a male SUB-D 9 connector and supports 2400 to 115200 bps. COM2 uses RS422/RS485 through a male SUB-D 9 connector and supports 2400 to 187500 bps.

The display uses Flash NAND for nonvolatile application storage, SDRAM for application execution, and 128 kB NVSRAM for data backup. Natural cooling is specified, with no fan-based cooling assembly listed in the supplied specifications.

The rated input is 24 VDC +/- 20 %. The specified inrush current is 50 A and steady power consumption is 7 W. The front panel provides IP65 protection while the rear panel is rated IP20.

Frequently Asked Questions

Q: What supply voltage is required by the HMIGXO5502?
A: The rated supply is 24 VDC with a tolerance of +/- 20 %. The specified inrush current is 50 A.

Q: Which serial communication interfaces are integrated?
A: COM1 provides RS232C at 2400 to 115200 bps. COM2 provides RS422/RS485 at 2400 to 187500 bps.

Q: What environmental operating temperature is specified?
A: The specified ambient operating temperature is 0...50 deg C. The storage temperature range is -20...60 deg C.

Field Installation Guidelines

Install the HMIGXO5502 in a panel cutout compatible with its specified dimensions and maintain the required mechanical clearance for the rear connections.

Provide a 24 VDC supply within the specified +/- 20 % tolerance. Size the supply and upstream protection with consideration for the documented 50 A inrush current and 7 W operating consumption.

Route RS232C and RS422/RS485 communication wiring separately from high-voltage power conductors and high-noise switching circuits where practical. Use appropriate cable shielding and terminate shields according to the plant grounding scheme to limit conducted and radiated interference.

The front panel is rated IP65 and the rear panel is rated IP20. The enclosure and panel installation should therefore preserve the front sealing interface and protect the rear electronics from dust, liquids, and conductive contamination.

The unit is specified for natural cooling. Do not obstruct the surrounding airflow path or install the panel terminal adjacent to heat sources that could raise the local ambient temperature beyond 50 deg C.

Schneider Electric lists HMIGXO5502 as discontinued on 31 Dec 2015 and states that it has not been replaced.

---
