HMIGTO6310

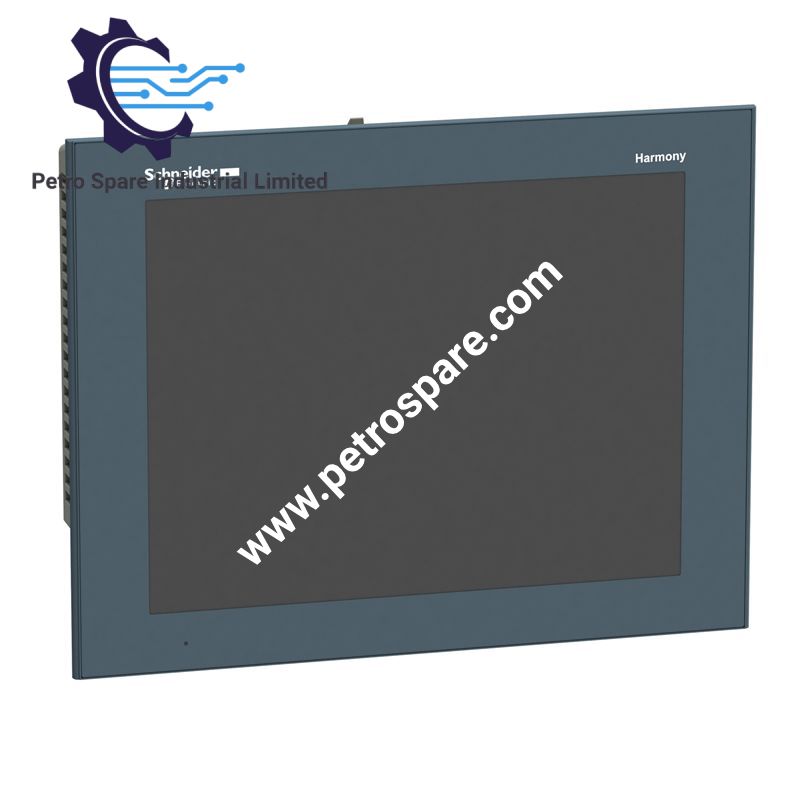

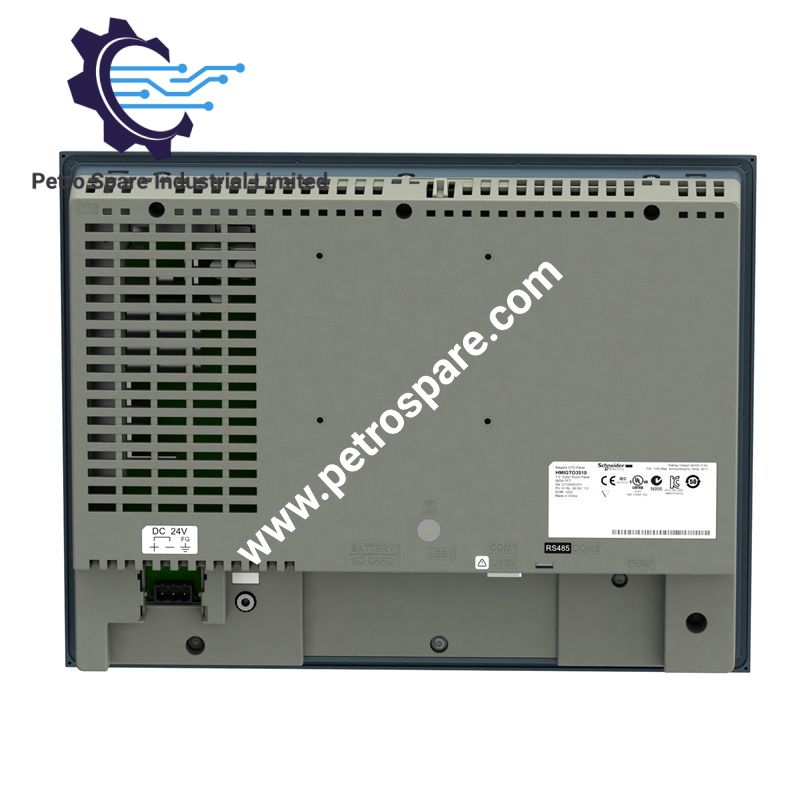

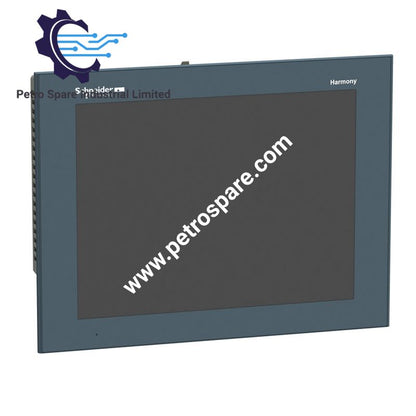

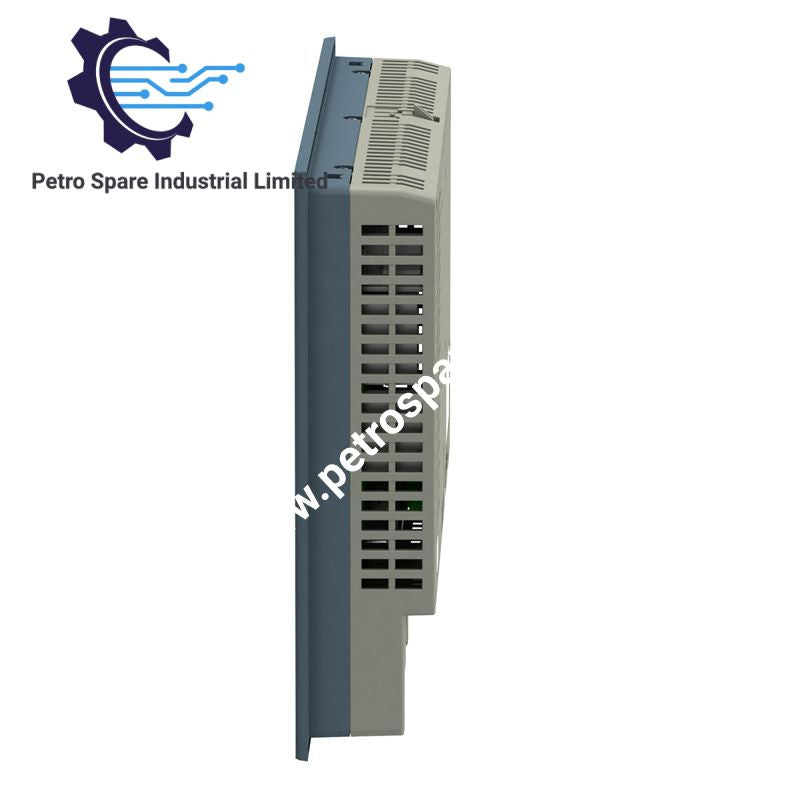

Configured for touchscreen-based operator interaction in Schneider Electric Harmony GTO systems, the Schneider Electric HMIGTO6310 (HMIGTO6310 advanced touchscreen panel) provides direct display, touch input, and serial/Ethernet communication for automation data and control interfaces.

Hardware Specifications

Parameter	Specification
Model	HMIGTO6310
Brand	Schneider Electric
Product Type	Advanced touchscreen panel
Series	Harmony GTO
Display Type	Backlit color TFT LCD
Display Size	12.1 inch
Display Resolution	800 x 600 pixels SVGA
Display Colors	65,536
Touch Technology	Resistive film
Touch Resolution	1024 x 1024
Touch Panel Life	1,000,000 cycles
Processor	ARM926EJ-S
Internal Flash	96 MB Flash EPROM
Internal RAM	512 KB SRAM with data backup
Storage	SD/SDHC, up to 32 GB
Rated Supply Voltage	24 VDC
Supply Voltage Range	19.2 to 28.8 VDC
Maximum Power Consumption	17 W
Inrush Current	30 A
COM1	RS232C, 2400 to 115200 bps, SUB-D 9
COM2	RS485, 2400 to 115200 bps, RJ45
Siemens MPI	RS485, 187.5 kbps
Ethernet	10BASE-T/100BASE-TX, IEEE 802.3
USB	USB 2.0 Type A and Mini-B
Mounting	Flush mounting
Fixing	4 screw clamps
Cooling	Natural convection
Front Protection	IP65
Rear Protection	IP20
Front NEMA Rating	NEMA 4X, indoor use
Operating Temp	0 to 55 deg C
Storage Temp	-20 to 60 deg C
Relative Humidity	10 to 90%, non-condensing
Operating Altitude	Below 2000 m
Dimensions	315 x 241 x 56 mm
Weight	2.5 kg
Origin	Indonesia
Standards	UL 508, IEC 61131-2, IEC 61000-6-2
Certifications	C-tick, KCC, cULus, CE, UKCA, UKEX

PLC and Network Communication

The HMIGTO6310 provides serial and Ethernet interfaces for exchanging operator-interface data with control equipment. Supported downloadable protocols include Schneider Electric Modicon Modbus, Uni-TE, Modbus Plus, FIPWAY, Modbus TCP, and selected third-party Mitsubishi, Omron, Rockwell Automation Allen-Bradley, and Siemens Simatic protocols.

The COM2 RS485 interface supports communication from 2400 to 115200 bps, while Siemens MPI operation is specified at 187.5 kbps. Ethernet communication uses 10BASE-T/100BASE-TX through an RJ45 interface.

Frequently Asked Questions

Q: What supply voltage does the HMIGTO6310 require?
A: The rated supply voltage is 24 VDC, with an allowable range of 19.2 to 28.8 VDC.

Q: What communication interfaces are integrated?
A: The panel provides one RS232C interface, one RS485 interface, 10BASE-T/100BASE-TX Ethernet, USB 2.0 Type A, and USB 2.0 Mini-B.

Q: Is the HMIGTO6310 designed for flush mounting?
A: Yes. The unit uses flush mounting and is secured with four screw clamps. The front panel is rated IP65, while the rear panel is rated IP20.

Field Installation Guidelines

Install the HMIGTO6310 in a panel cutout suitable for the specified 315 x 241 mm enclosure dimensions and secure it using the supplied four-clamp mounting arrangement. Maintain sufficient clearance around the enclosure for natural-convection cooling.

Apply 24 VDC within the specified 19.2 to 28.8 VDC supply range. Route the power wiring separately from high-current switching and motor conductors where practical.

For RS232C and RS485 connections, use appropriate industrial communication cabling and maintain separation from high-voltage or high-noise conductors. For RS485 networks, observe the applicable bus topology, termination, shielding, and reference-ground requirements of the selected protocol.

Connect cable shields according to the installation requirements of the connected control system. Avoid creating unintended ground loops through communication cable shields. Verify connector seating and cable strain relief before energizing the panel.

The front IP65 protection depends on correct panel installation and sealing. Do not treat the IP20 rear enclosure as suitable for direct exposure to washdown or conductive contamination.

---
