BMXDRA1605H

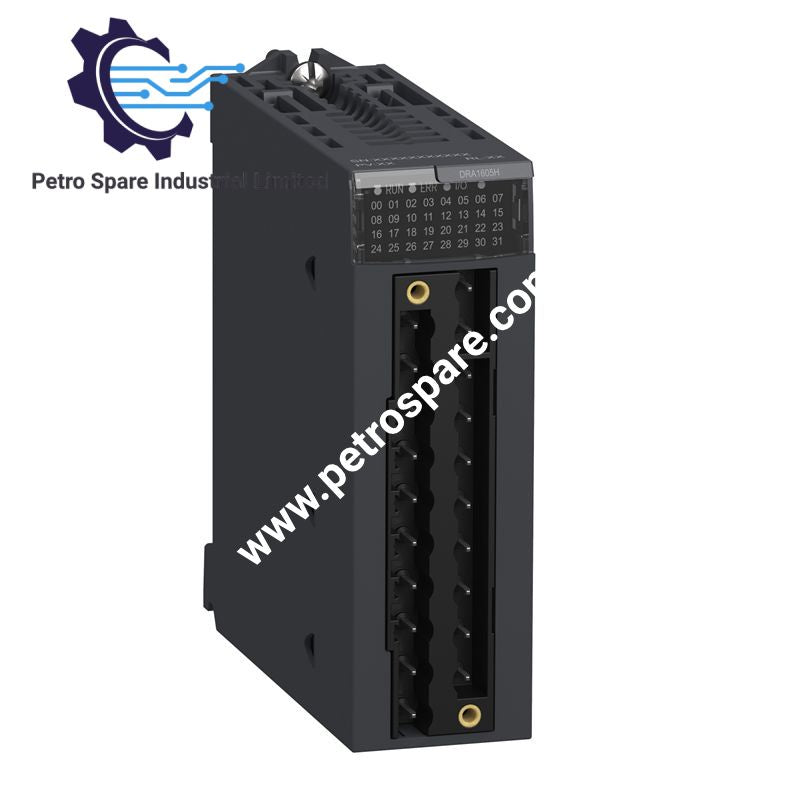

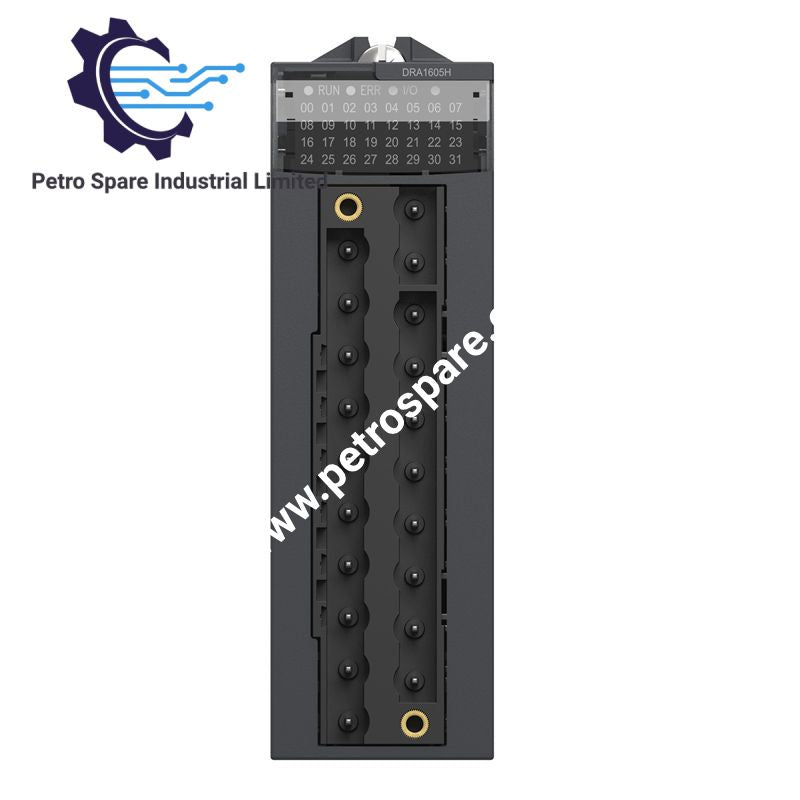

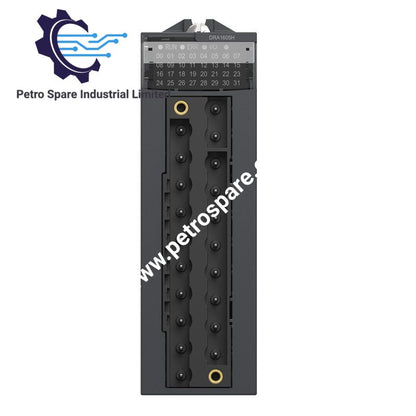

Configured for switching discrete field loads in Modicon X80 systems, the Schneider Electric BMXDRA1605H (BMXDRA1605H discrete output module) provides 16 positive-logic relay outputs for AC and DC loads. The module supports output voltage ranges of 19-30 VDC and 19-264 VAC, with output activation below 8 ms and deactivation below 10 ms.

Hardware Specifications

Parameter	Specification
Model	BMXDRA1605H
Brand	Schneider Electric
Series	Modicon X80
Product Type	Discrete output module
Output Type	16 NO relay outputs
Output Logic	Positive
Output Voltage	19-30 VDC; 19-264 VAC
Nominal Output Voltage	24 VDC; 240 VAC
Minimum Switching Current	1 mA at 5 VDC
Output Response Time	< 8 ms activation; < 10 ms deactivation
Electrical Durability	100000, 300000, 50000, 7000 cycles, depending on load conditions
Power Consumption	79 mA at 3.3 VDC typical
Insulation Resistance	> 10 Mohm at 500 VDC
Dielectric Strength	2000 VAC, 50/60 Hz, 1 min
Operating Temp	-25 to +70 deg C
Relative Humidity	5-95% at 55 deg C, non-condensing
Protection Rating	IP20
Protective Treatment	Conformal coating
Weight	0.15 kg
Origin	US
Environmental Classes	Gas Gx, gas 3C4, dust 3S4, sand 3S4, salt level 2, mold 3B2, fungal spore 3B2
Certifications	IECEx, ATEX, EAC, Merchant Navy, CSA, RCM, CE, UL
GTIN	3595864025803

Modicon X80 Relay Output Characteristics

The BMXDRA1605H provides 16 relay-based discrete output channels with positive output logic. The relay contacts support field circuits from 19 to 264 VAC and 19 to 30 VDC within the specified nominal ranges. The minimum switching current is 1 mA at 5 VDC. Output response is specified at less than 8 ms for activation and less than 10 ms for deactivation.

The module operates from the Modicon X80 common I/O platform used with Modicon M580 and M340 Programmable Automation Controllers. Its conformal coating and stated environmental classifications support installation in severe environmental conditions. The module has an IP20 enclosure rating and requires appropriate cabinet-level protection against direct exposure to liquids and conductive contamination.

Frequently Asked Questions

Q: How many discrete outputs are provided by the BMXDRA1605H?

A: The module provides 16 normally open relay outputs with positive discrete output logic.

Q: What field voltage ranges are supported by the relay outputs?

A: The specified ranges are 19-30 VDC for DC circuits and 19-264 VAC for AC circuits, with nominal values of 24 VDC and 240 VAC.

Q: What is the specified output response time?

A: Output activation is specified at less than 8 ms, while output deactivation is specified at less than 10 ms.

Field Installation Guidelines

Install the BMXDRA1605H in the appropriate Modicon X80 rack and verify that the module position and terminal arrangement correspond to the system configuration.

Before wiring, isolate field power and verify the intended AC or DC circuit voltage. Select conductors and external protection according to the connected load and applicable electrical installation requirements.

Keep relay output wiring separated from low-level analog, communication, and sensitive signal wiring where practical. Route high-current or inductive load conductors separately from signal circuits to reduce conducted and radiated interference.

Terminate cable shields according to the plant grounding design. Do not use the module enclosure or signal wiring as an uncontrolled protective-earth path.

Because the module is IP20 rated, install it inside an enclosure providing the required environmental and electrical protection. Verify temperature, humidity, contamination, and mechanical conditions against the specified installation environment before energizing the rack.

---
