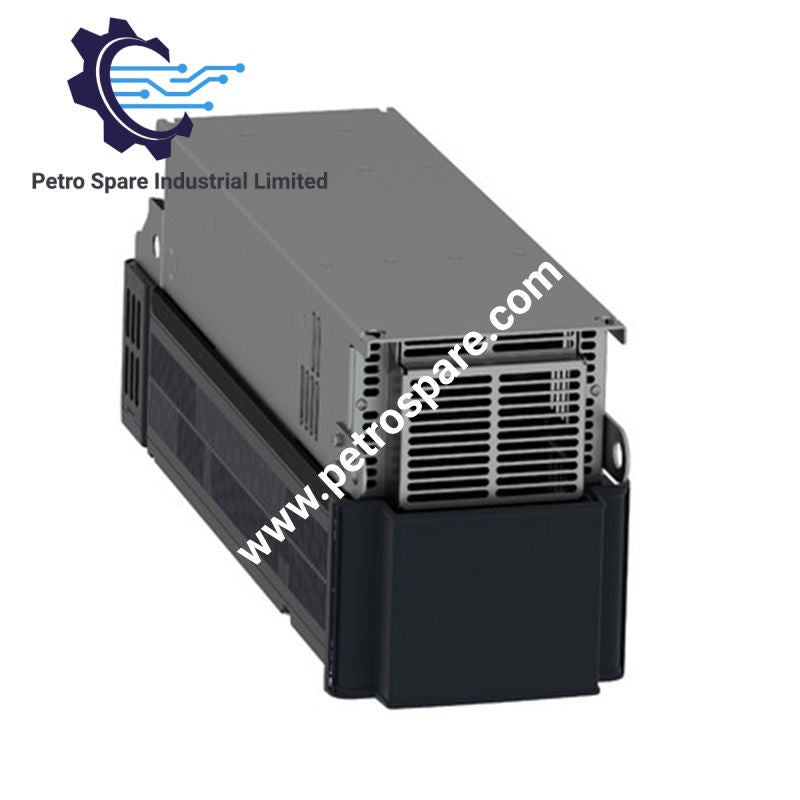

ATV630D45N4

Configured for three-phase motor speed control in the Altivar Process ATV600 platform, the Schneider Electric ATV630D45N4 (ATV630 Variable Speed Drive) provides direct power conversion from a 380 to 480 VAC supply to synchronous or asynchronous motor loads. The drive provides 88 A continuous output at 4 kHz under normal duty, IP21 protection, integrated Modbus and Ethernet communications, and Safe Torque Off (STO) rated SIL 3.

Hardware Specifications

Parameter	Specification
Model	ATV630D45N4
Base Model	ATV630
Brand	Schneider Electric
Product Series	Altivar Process ATV600
Product Type	Variable Speed Drive
Origin	India (IN)
Rated Supply Voltage	380 to 480 VAC, 3 phase
Supply Frequency	50 to 60 Hz
Motor Power	45 kW normal duty; 37 kW heavy duty
Motor Rating	60 hp normal duty; 50 hp heavy duty
Nominal Output Current	88 A normal duty; 74.5 A heavy duty at 4 kHz
Output Frequency	0.1 to 500 Hz
Switching Frequency	2 to 12 kHz adjustable; 4 to 12 kHz with derating
Communication	Modbus serial, Ethernet, Modbus TCP
Physical Interface	Ethernet and 2-wire RS485
Transmission Rate	10/100 Mbit/s Ethernet; 4800 to 38.4 Kbit/s serial
Analog Inputs	3, software configurable, 0 to 10 VDC or 0 to 20 mA, 12 bit
Analog Outputs	2, software configurable, 0 to 10 VDC or 0 to 20 mA
Digital Inputs	8; DI7 and DI8 support pulse input up to 30 kHz
Relay Outputs	3 configurable relay outputs
Safety Function	Safe Torque Off (STO), SIL 3
EMC Filter	Integrated; IEC 61800-3 Category C2/C3 according to configuration
Protection Degree	IP21; UL Type 1
Cooling	Forced convection
Dimensions	226 x 673 x 271 mm
Weight	28.7 kg
Operating Temp	-15 to 50 deg C without derating; 50 to 60 deg C with derating
Power Consumption	Power dissipation: 121 W natural convection or 943 W forced convection at 380 V, 4 kHz
Mounting	Wall mounted, vertical +/- 10 deg
Maximum Input Current	79.8 A
Maximum Transient Current	96.8 A for 60 s normal duty; 111.8 A for 60 s heavy duty
Apparent Power	57.4 kVA at 480 V normal duty; 49.1 kVA at 480 V heavy duty
Maximum THDI	Less than 48% from 80 to 100% load
Protection Functions	Motor thermal protection, drive thermal protection, overcurrent, short circuit, overvoltage, undervoltage, phase loss, overspeed and STO
Certifications	UL, ATEX Zone 2/22, ATEX INERIS, CSA, TUV, DNV-GL
Standards	UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 61508, IEC 13849-1

The principal hardware and electrical values are taken from the supplied Schneider Electric product data.

Industrial Control and Drive Characteristics

The ATV630D45N4 uses Ethernet and 2-wire RS485 interfaces for control-system communication. Modbus TCP operates over Ethernet, while the serial interface supports RTU framing with configurable parity and addresses from 1 to 247. The communication interface supports 10/100 Mbit/s Ethernet and serial rates from 4800 bps to 38.4 Kbps.

The drive provides configurable analog and digital signal interfaces. AI1, AI2 and AI3 accept voltage or current signals, while AQ1 and AQ2 provide voltage or current outputs. DI7 and DI8 can operate as pulse inputs up to 30 kHz. Sampling durations are specified as 2 ms for DI1 to DI4, 5 ms for DI5 and DI6, 5 ms for analog inputs and 10 ms for AO1.

Motor control profiles include constant torque, optimized torque and variable torque for asynchronous motors, plus permanent magnet and synchronous reluctance motor profiles. Acceleration and deceleration ramps are independently adjustable from 0.01 to 9999 s. The unit uses DC injection for braking to standstill and does not include an integrated brake chopper.

Optional communication hardware includes PROFIBUS DP V1, PROFINET, DeviceNet, Modbus TCP/EtherNet/IP, CANopen, Ethernet/IP Modbus TCP/MD-Link, BACnet MS/TP and Ethernet Powerlink modules.

Frequently Asked Questions

Q: What communication interfaces are built into the ATV630D45N4?
A: The drive has Ethernet and 2-wire RS485 physical interfaces, with Modbus serial and Modbus TCP communication supported as standard.

Q: What is the continuous output current of the ATV630D45N4?
A: Continuous output current is 88 A at 4 kHz for normal duty and 74.5 A at 4 kHz for heavy duty.

Q: Does the ATV630D45N4 provide a safety function?
A: Yes. Safe Torque Off (STO) is provided and specified as SIL 3.

Field Installation Guidelines

Mount the drive vertically on a wall within the specified +/- 10 degree operating position. Maintain the required installation clearances specified by the applicable ATV630 installation documentation and ensure that forced-convection airflow is not obstructed.

Route incoming power, motor conductors and low-level control or communication wiring separately where practical to limit conducted and radiated interference. Use the specified control, line-side and motor terminal conductor ranges for the corresponding connections.

Connect protective earth and cable shields according to the installation requirements for the drive and the connected motor system. Keep communication wiring away from high-current motor conductors and avoid unnecessary parallel runs.

For ambient temperatures from 50 to 60 deg C, apply the specified current derating. Above 1000 m altitude, apply the stated current derating of 1% per 100 m.

---
