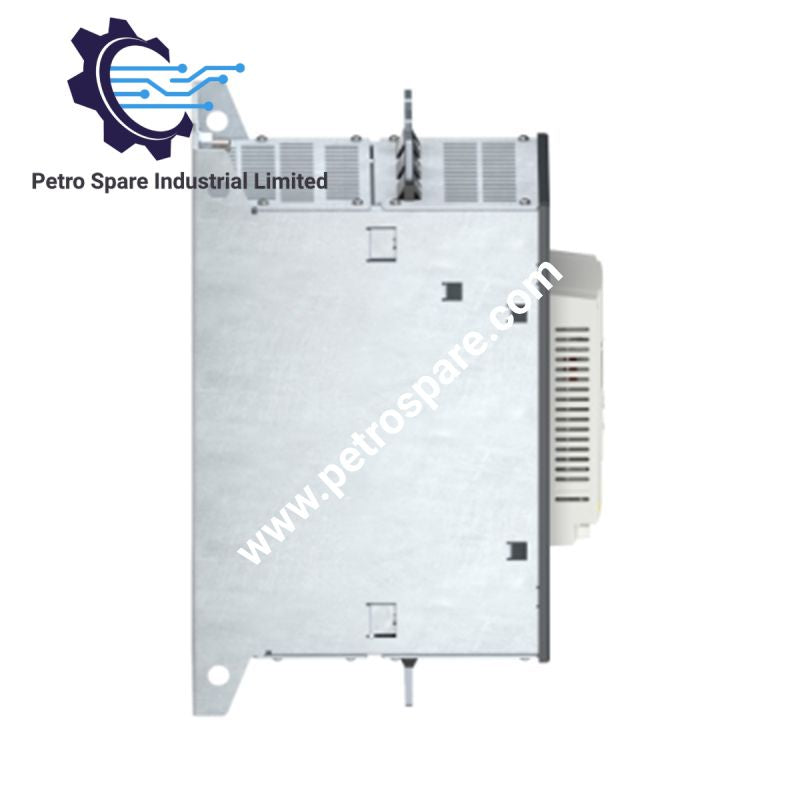

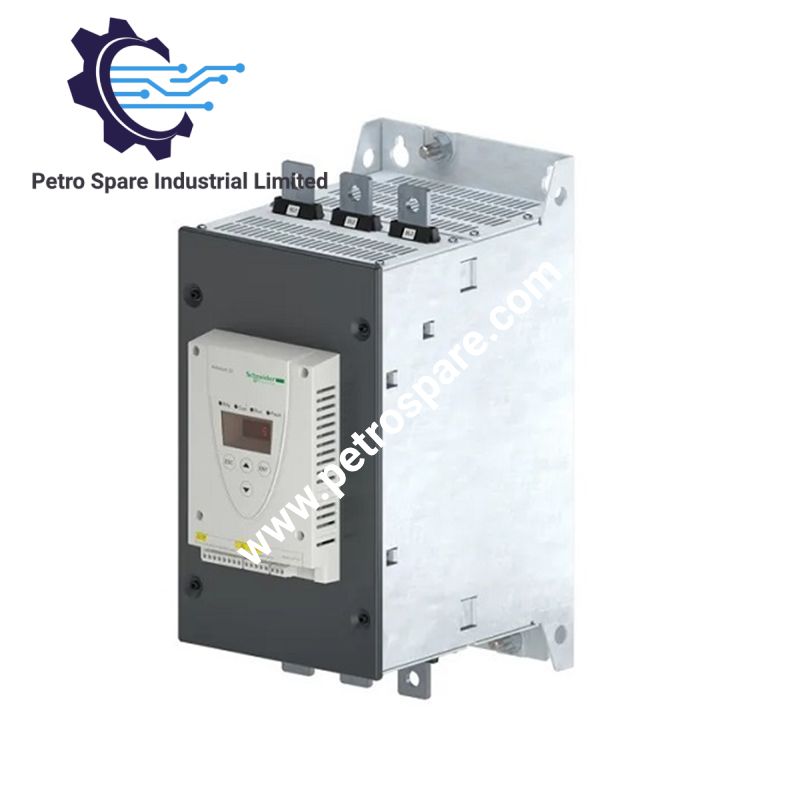

ATS22C41Q

Configured for controlled acceleration and current-limited starting of three-phase asynchronous motors, the Schneider Electric ATS22C41Q (ATS22 soft starter) provides torque-controlled motor starting through a 230 to 440 V AC power circuit. It is rated at 410 A in standard motor supply-line applications and supports integrated bypass operation.

Hardware Specifications

Parameter	Specification
Model	ATS22C41Q
Brand	Schneider Electric
Product Series	Altistart 22
Product Type	Soft Starter
Motor Type	Three-phase asynchronous motors
Rated Supply Voltage	230 to 440 VAC
Supply Voltage Limits	195 to 484 VAC
Supply Frequency	50 to 60 Hz
Network Frequency	45 to 66 Hz
Starter Rating	410 A, motor supply-line connection
Motor Power	110 kW at 230 V; 220 kW at 400 V; 220 kW at 440 V
Motor Power Range	110 to 220 kW at 380 to 440 V; 110 to 220 kW at 200 to 240 V
Utilisation Category	AC-53A
Starting Method	Torque control, current limited to 3.5 In
Output Current	0.4 to 1 Icl, adjustable
Factory Setting Current	388 A
Control Circuit Voltage	230 VAC, -15 to +10 %, 50/60 Hz
Control Circuit Consumption	20 W
Power Dissipation	177 W for standard applications
Discrete Inputs	3, LI1, LI2, LI3
Discrete Input Voltage	24 VDC, <= 30 VDC
Discrete Outputs	2 relay outputs, R1 and R2
Relay Minimum Switching Current	100 mA at 12 VDC
Relay Maximum Switching Current	5 A at 250 VAC resistive; 5 A at 30 VDC resistive
PTC Probe Input	750 Ohm
Communication Protocol	Modbus
Physical Interface	RS485 multidrop
Communication Connector	1 RJ45
Transmission Rate	4800, 9600, or 19200 bps
Installed Device Address	31
Internal Bypass	Yes
Cooling	Forced convection
Enclosure Protection	IP00
Dimensions	425 mm H x 206 mm W x 299 mm D
Weight	33 kg
Operating Position	Vertical, +/- 10 deg
Operating Temp	-10 to 40 deg C without derating; 40 to 60 deg C with 2.2 % current derating per deg C
Storage Temp	-25 to 70 deg C
Relative Humidity	0 to 95 %, non-condensing
Operating Altitude	<= 1000 m without derating; above 1000 to 2000 m with 2.2 % current derating per additional 100 m
Pollution Degree	Level 2
Standard	IEC 60947-4-2
Certifications	GOST, CCC, CSA, UL, C-Tick

Industrial Control and Modbus Interface

The ATS22C41Q uses a serial RS485 multidrop interface with Modbus protocol for control-system communication. The available transmission rates are 4800, 9600, and 19200 bps, with an installed device address of 31. The three logic inputs provide 24 VDC control signals, while relay outputs R1 and R2 provide status functions including running, alarm, trip, stopped, starting, and ready states.

The starter accepts connection to the motor supply line or motor delta terminals. Torque control limits starting current to 3.5 In, while the adjustable output-current range is 0.4 to 1 Icl. The internal bypass changes the operating power path after starting and reduces continuous starter power dissipation.

Frequently Asked Questions

Q: What supply voltage does the ATS22C41Q accept?
A: The rated supply range is 230 to 440 VAC, with operating supply limits of 195 to 484 VAC at 50 to 60 Hz.

Q: What communication interface is provided?
A: The unit provides one RJ45 communication connection using serial RS485 multidrop and Modbus protocol at 4800, 9600, or 19200 bps.

Q: What are the physical installation requirements?
A: The starter uses forced convection cooling, has an IP00 enclosure, and is specified for vertical installation within +/- 10 deg. The supplied dimensions are 425 mm H x 206 mm W x 299 mm D.

Field Installation Guidelines

Install the starter vertically within the specified operating-position tolerance and provide the clearance required for forced-convection cooling. The IP00 enclosure does not provide protection against direct contact with conductive contamination or moisture, so the installation enclosure must provide the required environmental protection.

Route motor power conductors separately from low-level control and communication wiring where practical. Maintain appropriate separation between the RS485 communication wiring and high-current motor conductors to reduce electromagnetic coupling. Connect cable shields and protective earth according to the applicable installation standard and the system grounding design.

Verify the motor connection method before energization. The ATS22C41Q supports connection in the motor supply line or to the motor delta terminals. Confirm the supply voltage, motor current, control voltage, input logic, relay loading, and Modbus addressing before commissioning. For ambient temperatures above 40 deg C or installation altitudes above 1000 m, apply the specified current derating.

---
