ABL8REM24030

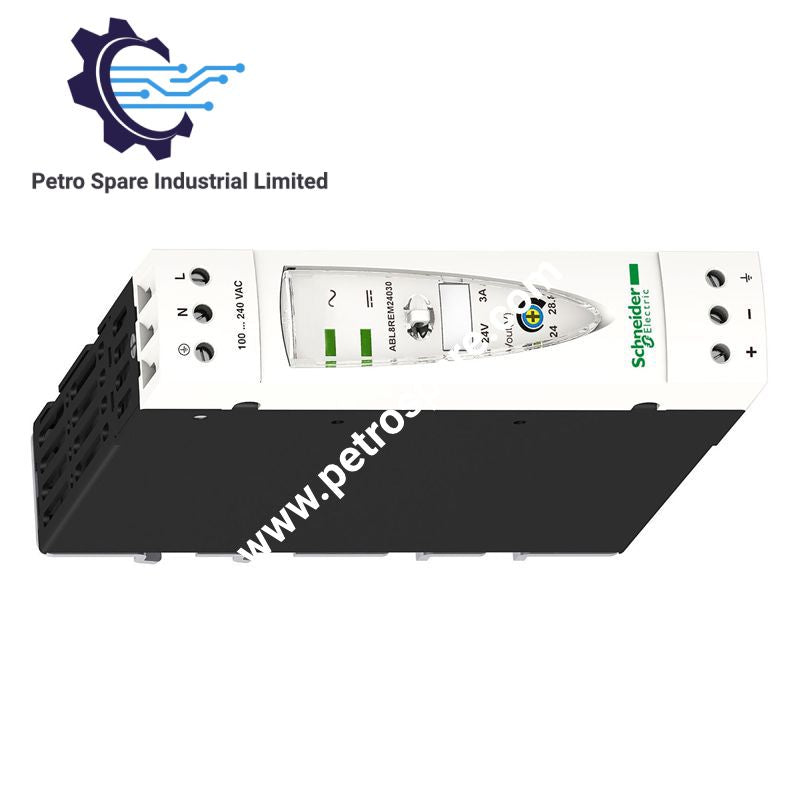

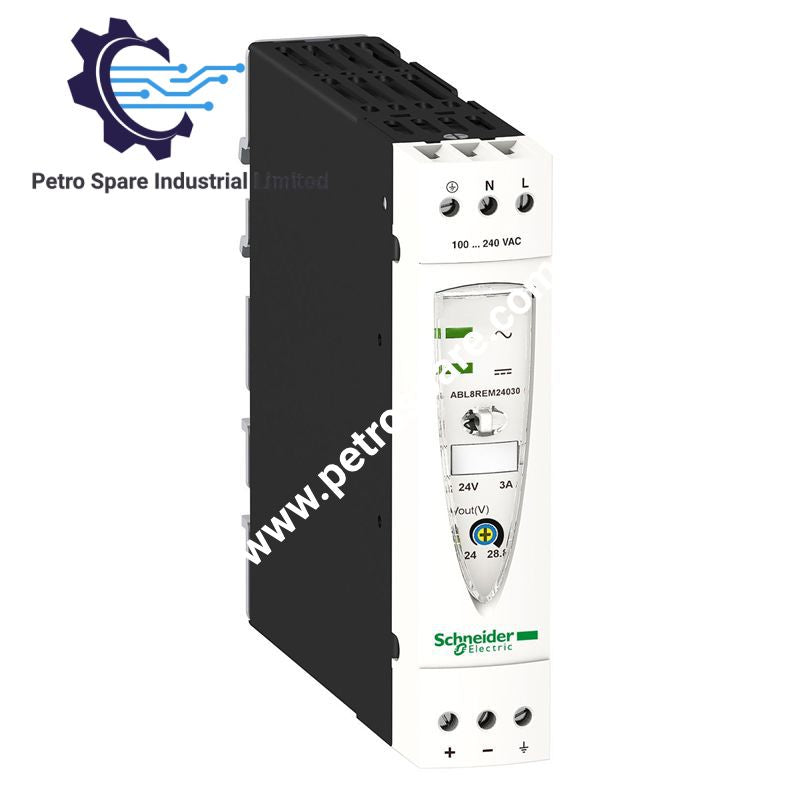

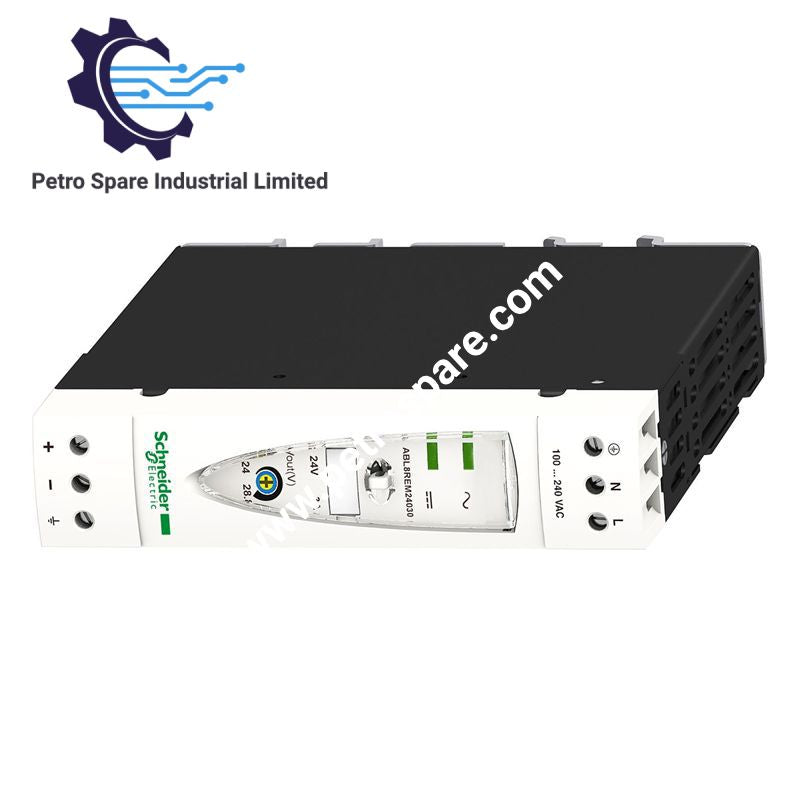

Configured for 24 VDC power conversion in industrial control systems, the Schneider Electric ABL8REM24030 (ABL8REM24030 Power Supply Unit) provides 3 A output capacity from a 100-240 VAC input range. The unit provides 72 W rated output power, 85% efficiency, adjustable output voltage, and protection against overload, overvoltage, short-circuit, and undervoltage conditions.

Hardware Specifications

Parameter	Specification
Model	ABL8REM24030
Brand	Schneider Electric
Product Line	Modicon
Product Type	Power Supply Unit
Weight	1.19 lb
Power Consumption	0.83 A at 240 VAC; 1.46 A at 100 VAC
Nominal Input Voltage	100-240 VAC
Output Voltage	24 VDC
Output Current	3 A
Rated Power Output	72 W
Product Efficiency	85%
Power Factor	0.65 at 24 VDC
Power Dissipation	12.7 W
Inrush Current	30 A
Output Voltage Adjustment	100-120% adjustable
Protection	Overload, overvoltage, short-circuit, undervoltage
Mounting Type	DIN rail, 27 mm wide
Input Connections	Screw terminals, 2 x 0.14-2.5 mm2 (AWG 26-14)
Input Ground Connection	Screw terminal, 1 x 0.14-2.5 mm2 (AWG 26-14)

Schneider Electric Modicon Power Conversion Characteristics

The ABL8REM24030 accepts a nominal 100-240 VAC input and produces a regulated 24 VDC output. Its rated output current is 3 A, corresponding to a stated 72 W rated power output.

The output voltage can be adjusted from 100% to 120% of the nominal 24 VDC value. This adjustment should be performed according to the connected equipment requirements and system voltage limits.

Input current varies with supply voltage, with specified consumption of 0.83 A at 240 VAC and 1.46 A at 100 VAC. The stated 30 A inrush current should be considered when selecting upstream protective devices and distribution components.

Protection functions cover overload, overvoltage, short-circuit, and undervoltage conditions. The 85% efficiency specification corresponds to 12.7 W stated power dissipation under the referenced operating conditions.

Frequently Asked Questions

Q: What output capacity does the ABL8REM24030 provide?

A: The unit provides 24 VDC output at 3 A, with a stated rated power output of 72 W.

Q: How is the ABL8REM24030 mounted?

A: The supplied data specifies DIN rail mounting with a 27 mm wide mounting configuration.

Q: What wiring terminals are specified?

A: Screw terminals accept 0.14-2.5 mm2 conductors, corresponding to AWG 26-14, for the specified connections.

Field Installation Guidelines

Install the power supply on the specified DIN rail and verify mechanical engagement before energizing the unit.

Use conductors within the specified 0.14-2.5 mm2 range and tighten screw terminals according to the applicable installation procedure.

Route AC input conductors separately from low-level analog, communication, and sensor wiring where practical. Maintain appropriate separation from high-current switching conductors.

Connect protective earth and functional wiring according to the electrical cabinet grounding design. Do not use signal cable shields as substitutes for protective earth conductors.

Check input polarity, terminal identification, conductor sizing, and upstream protection before applying AC power.

Consider the specified 30 A inrush current when evaluating upstream circuit protection and power distribution behavior.

Verify the adjustable output voltage before connecting sensitive 24 VDC loads. Set the output only within the documented 100-120% adjustment range.

After energization, confirm the DC output voltage under the intended load condition and inspect terminal temperature, wiring condition, and enclosure ventilation.

---
