ABE7H16F43

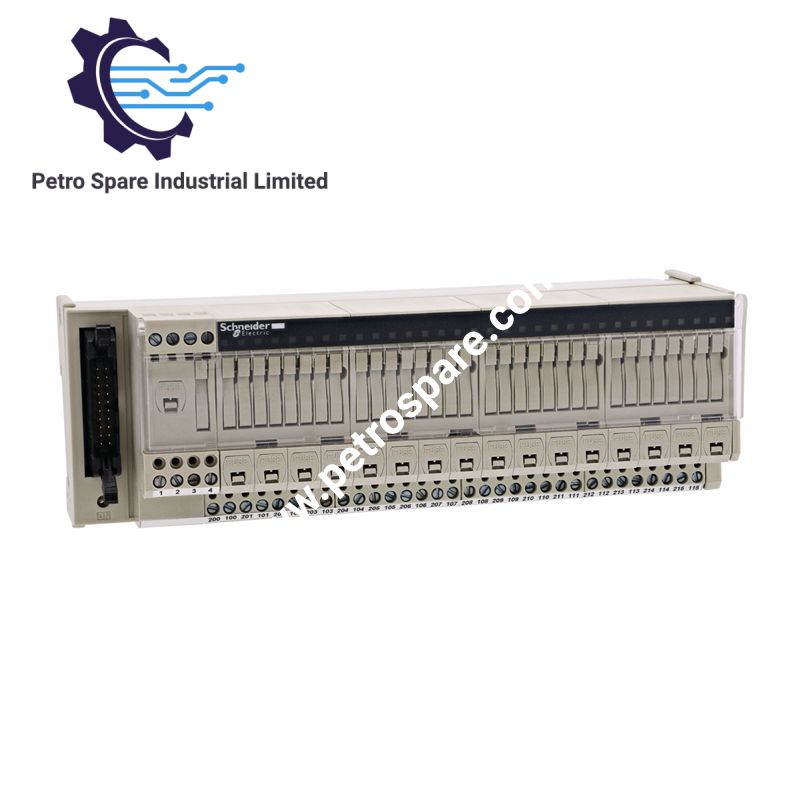

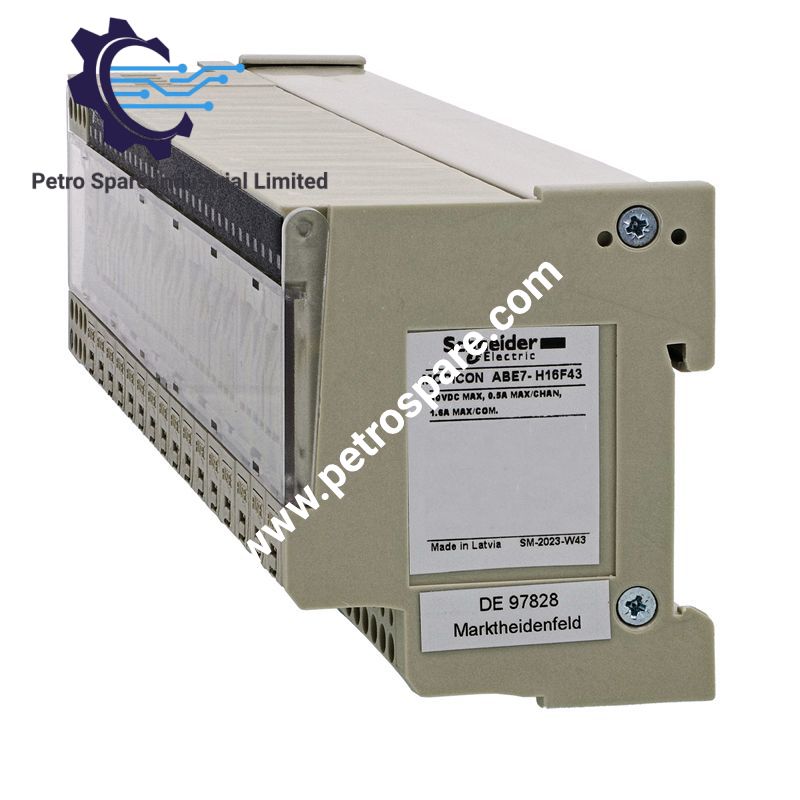

Configured for discrete signal distribution in Modicon PLC architecture, the Schneider Electric ABE7H16F43 (ABE7H16F43 Passive Connection Sub-Base) provides direct physical/electrical execution. This unit adapts 16-channel digital output signals from controller I/O interfaces via a 20-pin HE10 connector to field-level instrumentation, integrating fused circuit protection, individual switch disconnectors, and status indication LEDs within a compact DIN-rail housing.

Hardware Specifications

Parameter	Specification
Model	ABE7H16F43
Brand	Schneider Electric
Weight	0.64 kg
Dimensions	206 mm x 8.3 cm x 6.8 cm (W x D x H)
Operating Temp	-5 to 60 deg C
Power Consumption	1.8 A maximum supply current
Sub-Base Type	Passive discrete output sub-base
Number of Channels	16 (2 terminals per channel)
Rated Supply Voltage	19 to 30 VDC (24 VDC nominal)
Channel Protection	0.125 A fast-blow fuse per channel (5 x 20 mm)
Main Supply Protection	2 A fast-blow internal fuse (5 x 20 mm)
Signal Interface	20-pin HE10 connector
Field Wiring Terminals	Screw terminals (0.09 to 2.5 mm sq wire size)
Degree of Protection	IP20 / IP2X
Isolation Voltage	2000 V rated insulation voltage
Mounting Type	35 mm symmetrical DIN rail or screw panel mount

Fieldbus Interface & Firmware Determinism

Operating within the Modicon hardware ecosystem, the ABE7H16F43 delivers high-density I/O routing for Modicon M221, TSX Micro, Modicon Premium, TM3, and X80 expansion modules. Physical signal routing relies on high-density backplane bus communication velocity and deterministic I/O signal processing between controller output cards and field actuators. The internal channel distribution maintains strict firmware flash compatibility across legacy and modern Modicon platforms, ensuring uniform logic propagation, minimal signal transit delays, and dedicated channel-level isolation to prevent back-fed transient faults from reaching the host PLC CPU.

Frequently Asked Questions

Q: What is the current capacity limit per output channel on the ABE7H16F43?

A: Each individual output channel is rated for a maximum current of 0.125 A and is protected by a dedicated 0.125 A fast-blow 5 x 20 mm fuse. The combined total current across all output commons must not exceed 1.8 A.

Q: Can individual channels be manually isolated during maintenance without powering down the entire module?

A: Yes. The sub-base features 1 switch disconnector per channel, allowing field technicians to physically isolate individual load circuits for troubleshooting without interrupting power or logic signals to adjacent channels.

Q: How does the module indicate blown fuse status?

A: The ABE7H16F43 includes individual status LED indicators for each channel. Green LEDs indicate active channel signal status, while red LEDs light up specifically to signal a blown 5 x 20 mm output fuse condition.

Field Installation Guidelines

Mount the sub-base horizontally on a standard 35 mm symmetrical DIN rail or fix it directly to a solid mounting plate using the integrated screw kit. Ensure a minimum clearance around the unit to facilitate ambient air convective cooling between -5 deg C and 60 deg C.

Connect the host controller I/O card using a pre-wired HE10 20-pin cable assembly. When wiring field devices to the terminal blocks, strip wire leads appropriately and apply a maximum tightening torque of 0.6 N.m (5.3 lbf.in) using a flat 3.5 mm screwdriver. Ensure proper field grounding and route low-voltage 24 VDC wiring separately from high-voltage AC power lines to avoid inductive noise coupling.

---
