140MMS53502

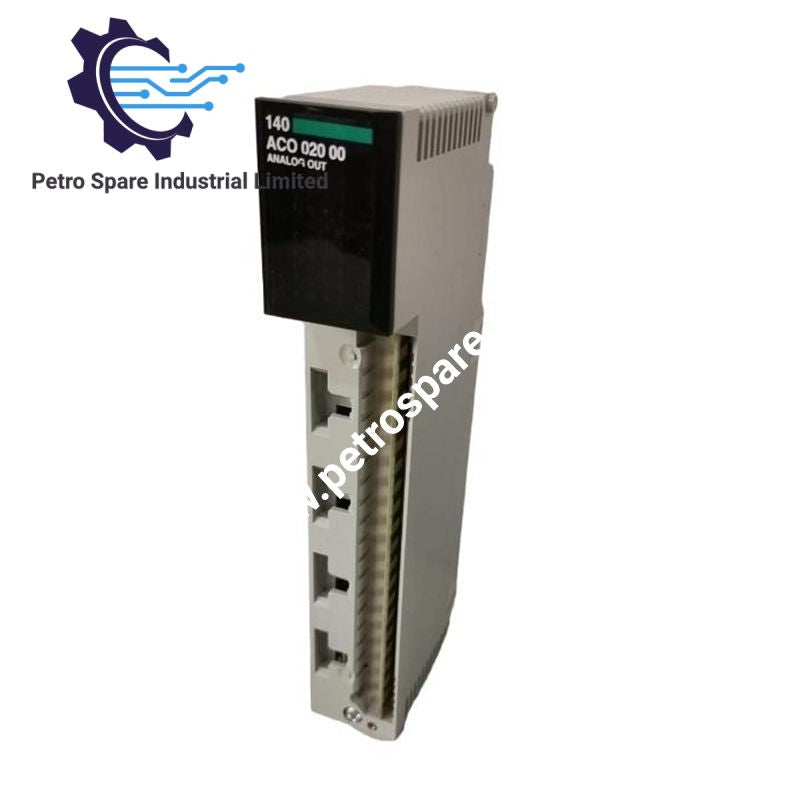

Configured for high-speed axis positioning and digital servo drive synchronization in Modicon Quantum PAC platforms, the Schneider Electric 140MMS53502 (140MMS53502 Motion Control Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter	Specification
Model	140MMS53502 (141MMS53502)
Brand	Schneider Electric / Modicon
Origin	France
Weight	0.45 kg
Dimensions	Single-slot Quantum backplane width
Operating Temp	0 to 60 deg C
Power Consumption	1.2 A at 5 VDC (backplane bus)
On-Board Processor	586-class motion execution coprocessor
Physical Topology	SERCOS fiber-optic ring loop
Axis Capacity	Up to 8 real, 4 imaginary, and 4 coordinate axes

Backplane Bus Communication Velocity and Deterministic Networking

The module utilizes Quantum backplane bus communication velocity protocols to offload high-frequency position loop execution from the main CPU. By executing motion trajectory profiles locally through its dedicated processor, the unit reduces backplane arbitration latency. Firmware flash compatibility ensures synchronized cyclic exchange over the optical SERCOS interface, maintaining real-time deterministic motion update rates independent of primary PLC scan cycles.

Frequently Asked Questions

Q: What are the backplane power supply restrictions during module insertion?

A: The module requires strict observance of Quantum rack power limits. While the Quantum backplane architecture supports module replacement, hot-swapping motion modules requires stopping active axis motion loops to prevent communication faults on the fiber ring.

Q: How is physical communication established between the module and digital servo drives?

A: Connectivity is established exclusively via standard SERCOS SMA fiber-optic cable loops, eliminating electrical ground loops and high-frequency noise interference between the control rack and field drives.

Field Installation Guidelines

1. Seat the module into a single slot of the Modicon Quantum backplane rack until the top and bottom retaining clips engage fully.
2. Maintain a minimum bending radius of 30 mm for all SERCOS optical fiber cables during routing to prevent attenuation loss.
3. Ground the main backplane DIN-rail or rack frame directly to functional earth (FE) with a minimum 6 mm sq copper conductor.
4. Verify that optical port dust caps remain installed on unused fiber channels to prevent contaminant build-up on optical transceivers.

---
