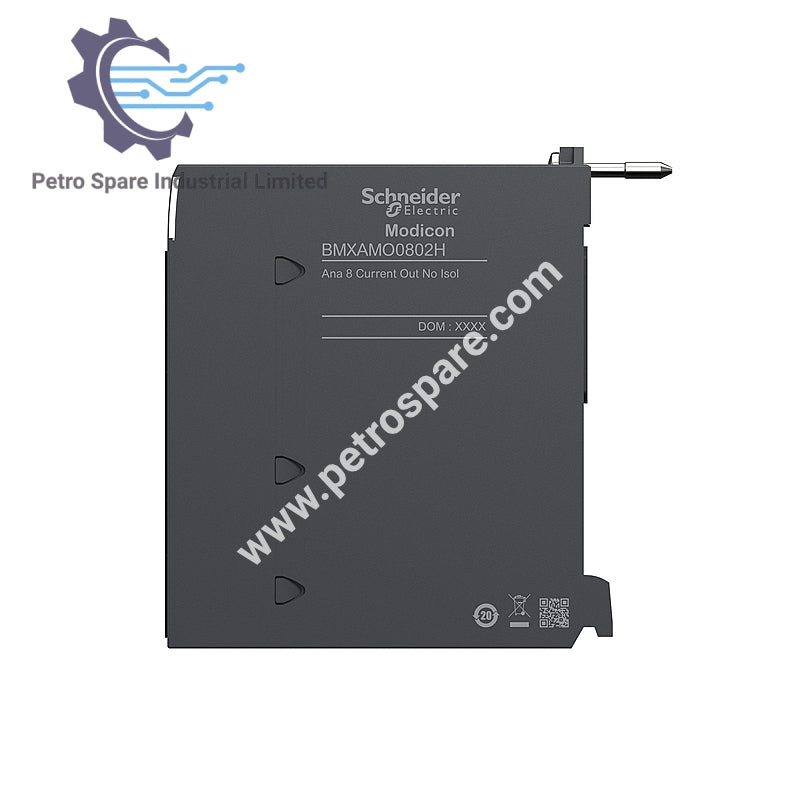

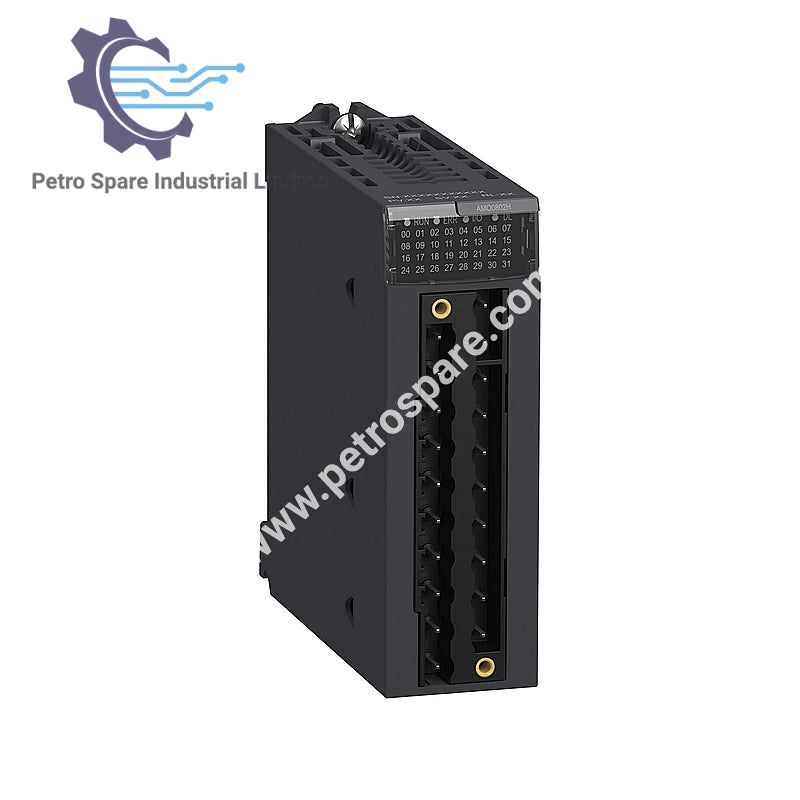

BMXAMO0802H

Overview

• Model: BMXAMO0802H

• Type: Analog Output Module

• Range: Modicon X80

• Application: For severe environments

Output Specifications

• Number of Outputs: 8

• Output Type: Current (0–20 mA, 4–20 mA)

• Resolution: 16 bits

• Conversion Time: ≤ 4 ms

• Max Conversion Value: 0–21 mA (0–20 mA / 4–20 mA)

• Fallback Mode: Configurable / predefined

Electrical Characteristics

• Supply: Internal via rack

• Power Consumption:

  • 3.6 W typical (24 V DC)

  • 3.9 W max (24 V DC)

  • 0.35 W typical (3.3 V DC)

  • 0.48 W max (3.3 V DC)

• Current Consumption: 150 mA at 3.3 V DC, 135 mA at 24 V DC

• Isolation Voltage: 1400 V DC (channels to ground, channels to bus)

Performance

• Measurement Error: ≤ 0.45 % full scale (25–70 °C), 0.1 % full scale (25 °C)

• Temperature Drift: 45 ppm/°C (0–20 mA, 4–20 mA)

• Crosstalk Attenuation: ≥ 80 dB

• Common Mode Rejection: ≥ 80 dB

• Detection: Open circuit (4–20 mA), short circuit (0–20 mA)

• Load Impedance: ≤ 350 Ω (0–20 mA, 4–20 mA)

• MTBF Reliability: 1,500,000 h

Indicators

• RUN LED: 1 green

• Channel Diagnostic LED: 1 green per channel

• ERR LED: 1 red

• I/O LED: 1 red

Environmental Specifications

• Operating Altitude: 0–2000 m (standard), 2000–5000 m with derating

• Operating Temperature: 0 to 55 °C

• Storage Temperature: −20 to 75 °C

• Humidity Range: 10–90 % RH (non‑condensing)

---
