416NHM30032

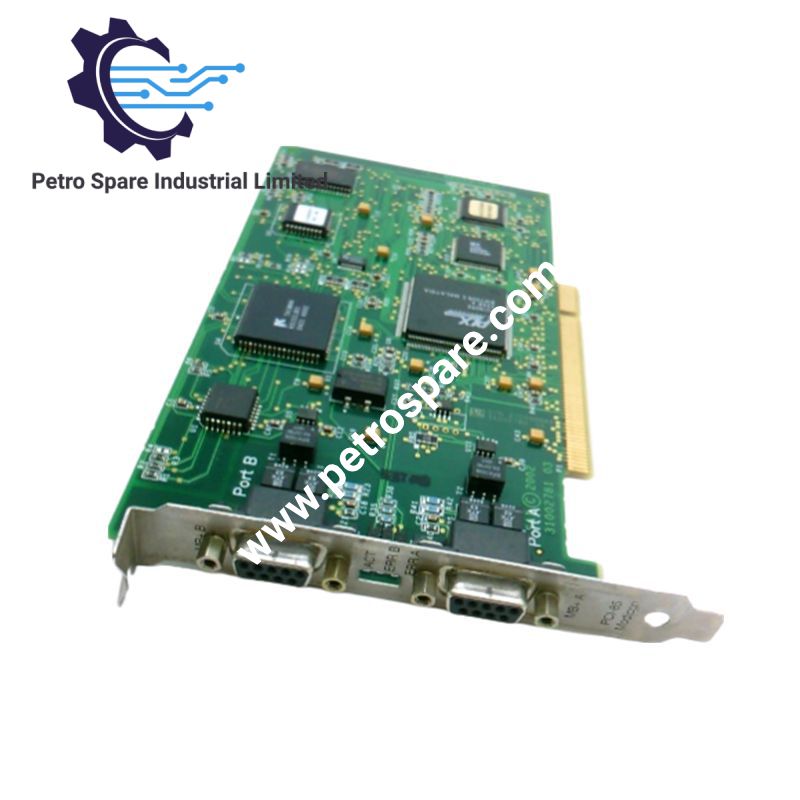

The Schneider 416NHM30032, also cataloged as the 416NHM30032 MB+ PCI Adapter Board, operates as a dedicated hardware component for Modbus Plus network interfacing within Modicon Quantum backplane platforms. Configured as a 32-bit Plug-and-Play (PnP) two-port board, the unit handles high-speed frame translation between localized backplane buses and industrial Ethernet TCP/IP or serial Modbus networks without intermediate software overhead.

Hardware Specifications

Parameter	Specification
Model	416NHM30032
Brand	Schneider Electric
Origin	France
Weight	0.33 lbs
Dimensions	110 x 55 x 90 mm
Operating Temp	-10 to +55 deg C
Power Consumption	0.5 W (5 VDC at 100 mA)
Supply Voltage	5 VDC (via backplane bus)
Memory Capacity	4 MB
Network Protocols	Modbus, Modbus Plus, Ethernet TCP/IP
Interface Configuration	2-port board (32-bit PCI structure)
Programming Standard	IEC 61131-3
Enclosure Rating	IP20
Mounting Options	DIN rail or Quantum modular rack
Certifications	CE, UL

Backplane Bus Communication and Deterministic Network Processing

The 416NHM30032 interface board interfaces with the Modicon Quantum backplane to process deterministic fieldbus communications. Built on a 32-bit PCI card architecture, the board offloads protocol processing directly from the main rack controller, preventing CPU cycle degradation during heavy Modbus Plus network traffic. Its 4 MB onboard memory buffer handles packet queues and prevents frame loss during burst communication periods. The dual-port layout enables concurrent connections across segregated physical channels, maintaining bus communication velocity and deterministic message packet execution across distributed I/O clusters. Firmware flash compatibility ensures synchronized operational states across changing controller chassis revisions.

Frequently Asked Questions

Q: Does the 416NHM30032 support hot-swapping inside a live Quantum rack assembly?

A: No. Power to the rack backplane must be completely deactivated prior to inserting or removing the board to prevent electrical transients on the 5 VDC logic bus.

Q: How is operating power supplied to the 416NHM30032 board?

A: The module draws power directly from the 5 VDC backplane bus rail of the Modicon Quantum chassis, requiring approximately 100 mA during full dual-port network execution.

Q: What physical grounding setup is mandatory for the dual communication ports?

A: Signal cable shields attached to the communication ports must be grounded at a single point to the main chassis earth ground, avoiding ground loops across remote network drops.

Field Installation Guidelines

1. Ensure the Modicon Quantum rack backplane power supply is isolated and zero-voltage status is verified before board handling.
2. Observe proper ESD protection procedures, wearing an earthed wrist strap before removing the 416NHM30032 board from its anti-static package.
3. Align the 32-bit card edge connector with the designated expansion slot on the Quantum rack or DIN-rail mounting base assembly.
4. Press the module firmly into place until the retention mechanism fully engages with the chassis frame.
5. Connect shielded twisted-pair cables to the dual ports, verifying that shield foil and drain wire are properly bonded to the grounding bar.
6. Verify minimum bend radius guidelines for network cables to prevent signal attenuation and mechanical stress on the board connectors.
7. Apply system power and monitor diagnostic LED indicators to verify backplane enumeration and port communication link status.

---
