AMM32J

Product Overview

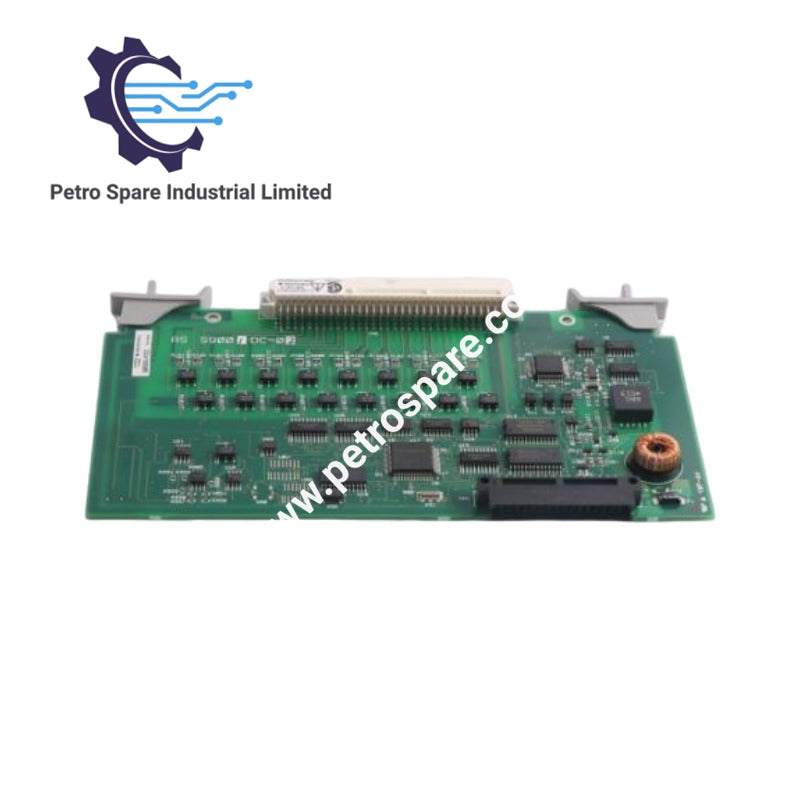

The Yokogawa AMM32J / AMM32J-S1 is a high-performance RTD (Resistance Temperature Detector) Input Multiplexer Module designed for seamless integration with Yokogawa's Distributed Control Systems (DCS), such as CENTUM VP and CENTUM CS 3000.

Technical Specifications

Measurement & Channel Configuration
• Model: AMM32J / AMM32J-S1
• Channels: 32 RTD input channels
• Supported Sensor Types: 2-wire and 3-wire RTDs (e.g., Pt100)

Temperature Performance
• Temperature Range: -200°C to +600°C

Electrical Characteristics
• Power Supply: 24 V DC (±10%)
• Withstanding Voltage: 500 V AC (between field terminals and system)

Environmental Conditions
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 5% to 90% RH (non-condensing)

Physical Characteristics
• Weight: Approx. 1.0 kg to 1.8 kg (depending on configuration)

System Compatibility
• DCS Compatibility: Yokogawa CENTUM VP / CENTUM CS 3000
• Terminal Block: AMT16R (terminal disconnection detection may vary by I/O configuration)

---
