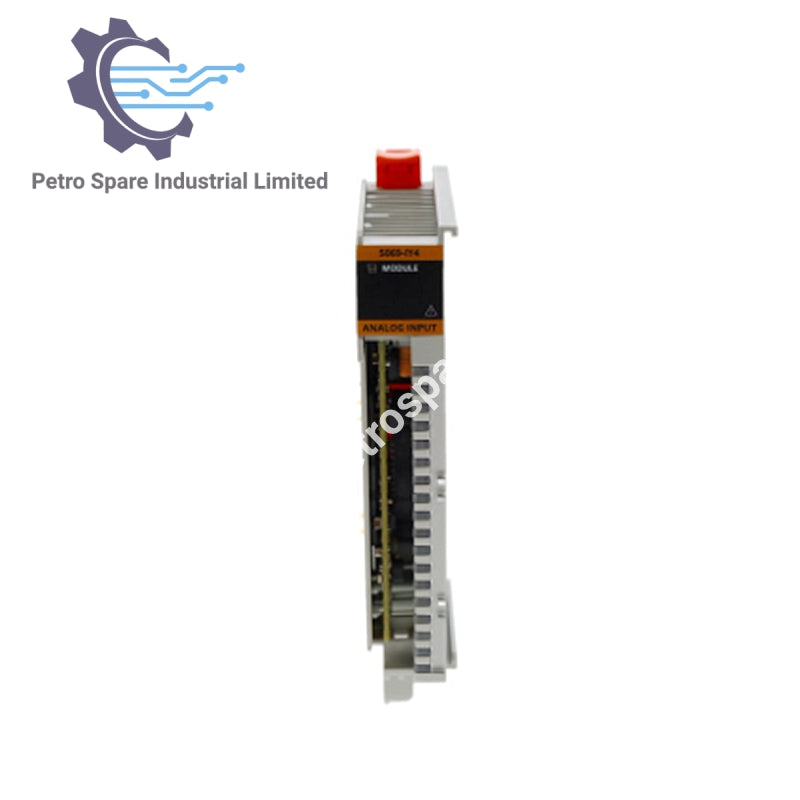

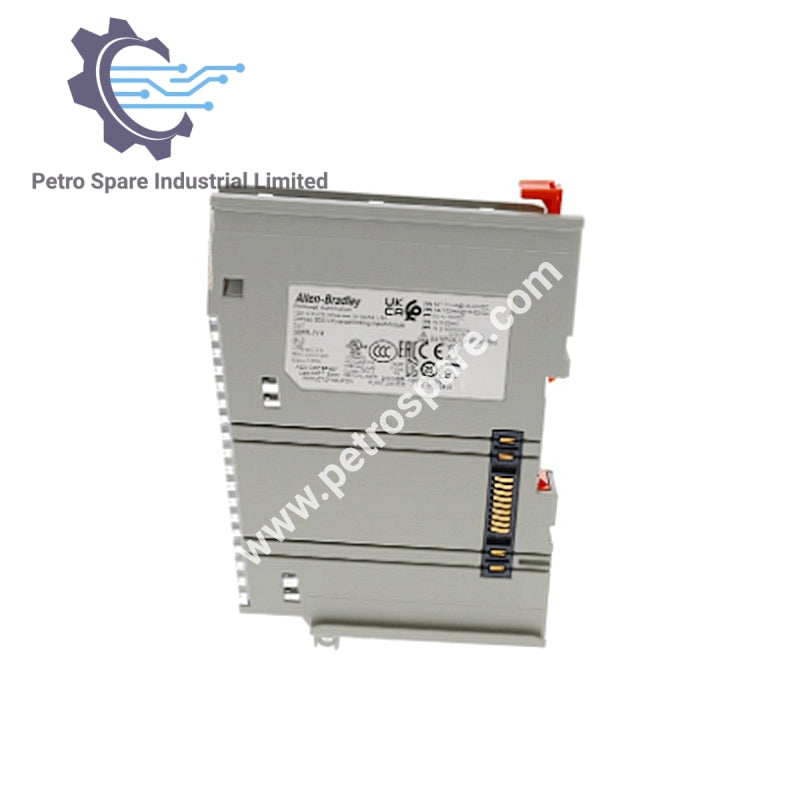

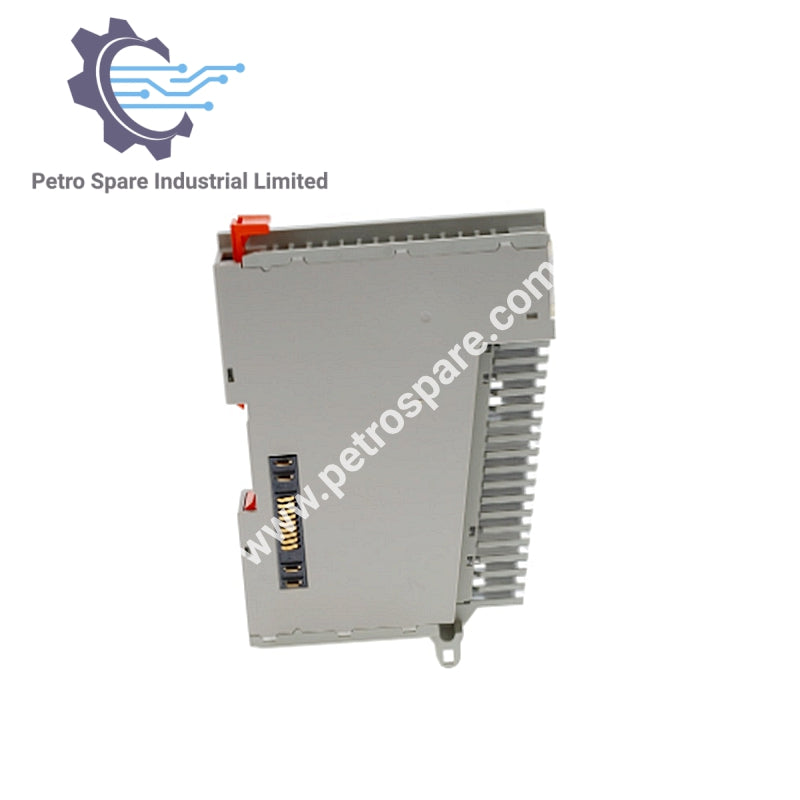

5069-IY4

Overview

• Model: 5069-IY4

• Type: Analog I/O Module

• Brand: Rockwell Allen‑Bradley

• Series: Compact 5000 I/O

• Application: Analog input acquisition for industrial automation

Electrical Specifications

• Analog Input Ratings: ±10 V DC, 0–20 mA, 0–4 kΩ per channel

• MOD Power: 75 mA @ 18–32 V DC

• MOD Power Passthrough: 9.55 A @ 18–32 V DC (max)

• SA Power: 100 mA @ 18–32 V DC

• SA Power Passthrough: 9.95 A @ 18–32 V DC (max)

• Isolation Voltage:

  • 250 V continuous (basic insulation)

  • 50 V functional isolation (SA power vs input ports)

  • No isolation between individual input ports

Environmental Specifications

• Operating Temperature: 0–60 °C

• Surrounding Air Temperature (max): 60 °C

• Enclosure Type: None (open‑style)

Performance

• Passthrough Current Limit: Do not exceed 10 A (MOD or SA)

• Isolation Type: Basic insulation, functional isolation between SA power and input ports

Dimensions & Weight

• Dimensions: 12.0 cm × 10.0 cm × 3.0 cm

• Weight: 0.20 kg

---
