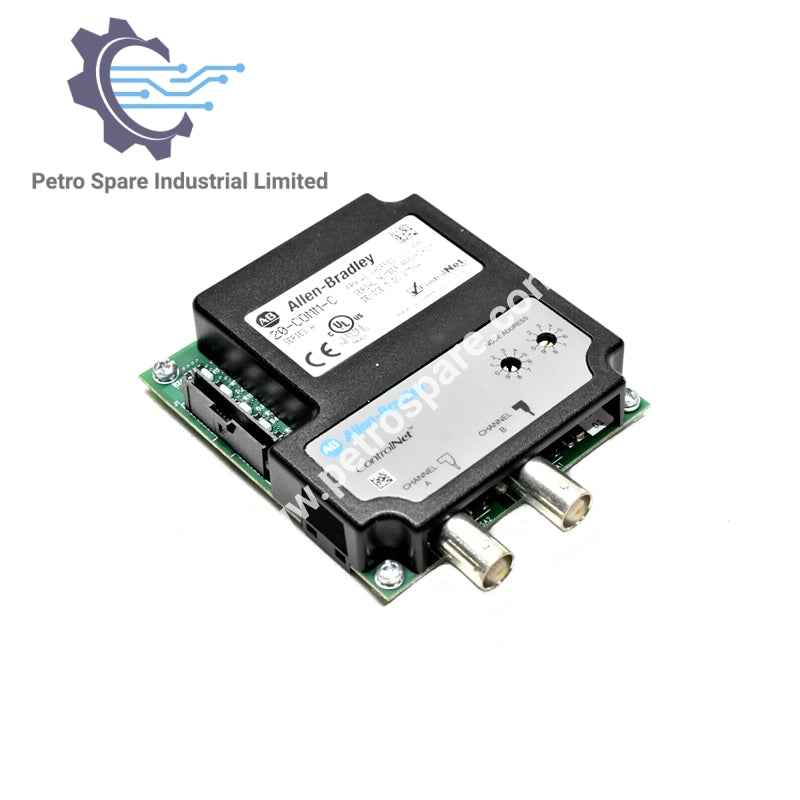

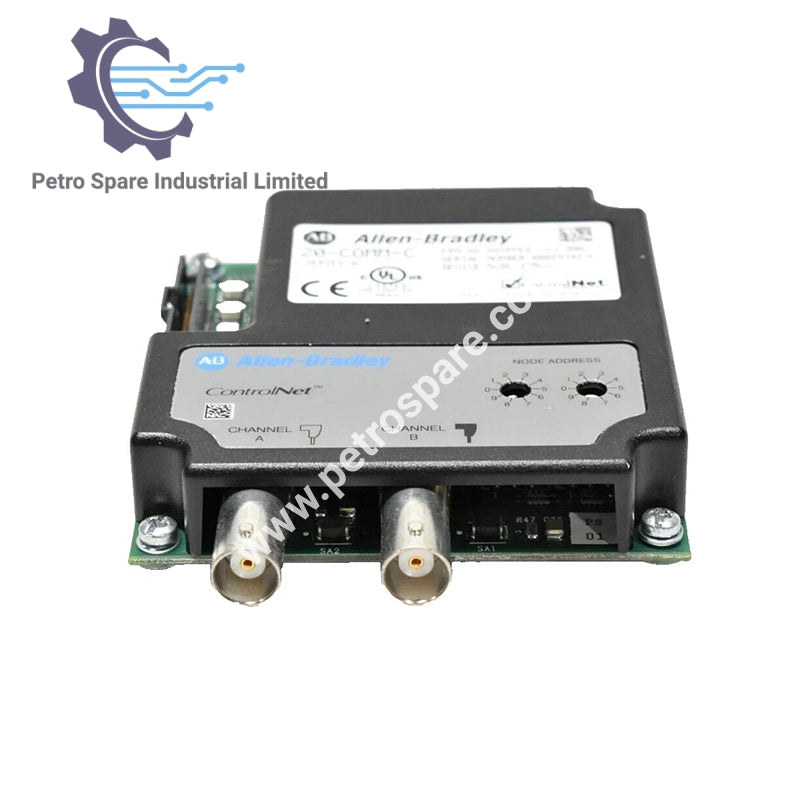

20-COMM-C

Overview

• Model: 20-COMM-C

• Type: ControlNet Communication Adapter

• Category: Communication Module

• Compatible Drives:

  • PowerFlex 70, 700, 700H, 700S, 700L, 750

  • PowerFlex Digital AC Drives

  • DPI external communication kits

  • SMC Flex and SMC-50 smart motor controllers

Communication Specification

• Communication Ports:

  • 1 DPI connector

  • 1 RJ45 connector

  • 2 BNC ports (ControlNet)

• Protocol Support: ControlNet, DPI

• ControlNet Redundancy: Supported

• Data Rate: 5 Mbps full duplex (fixed)

• Connection Limits: 30 TCP connections

• RPI Rate: 5 ms minimum

Electrical Specification

• Drive Electrical Consumption: 350 mA at 5 VDC (supplied by host drive or DPI external kit)

• Network Electrical Consumption: None

Functional Specification

• LED Indicators: 4 LEDs (DPI, adapter, network status)

Environmental Specification

• Operating Temperature Range: 10–50 °C (14–122 °F)

• Storage Temperature Range: -40–85 °C (-40–185 °F)

Mechanical Specification

• Weight: 0.44 lbs (0.20 kg)

---
