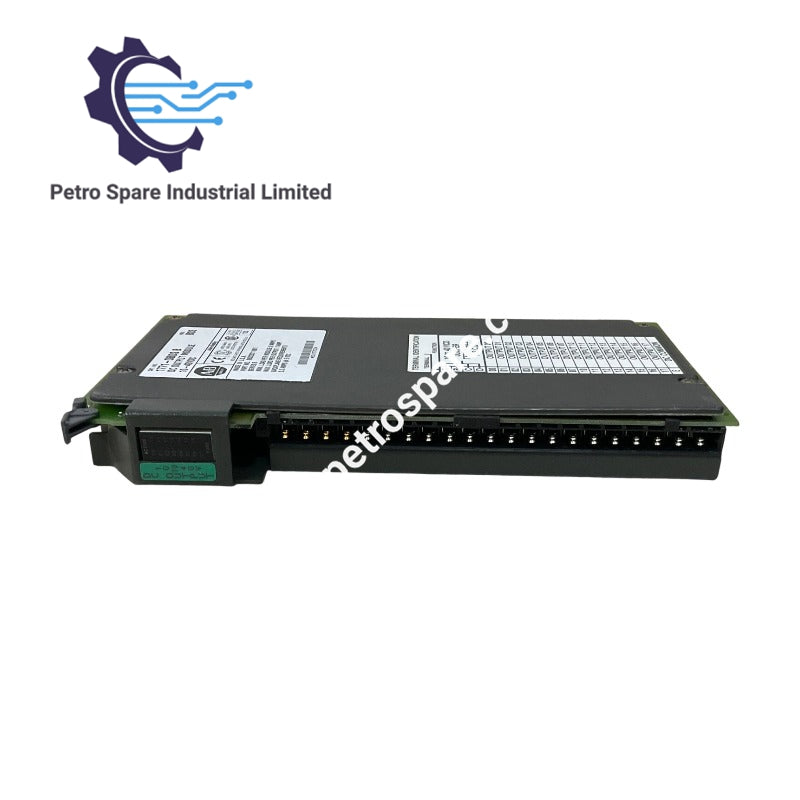

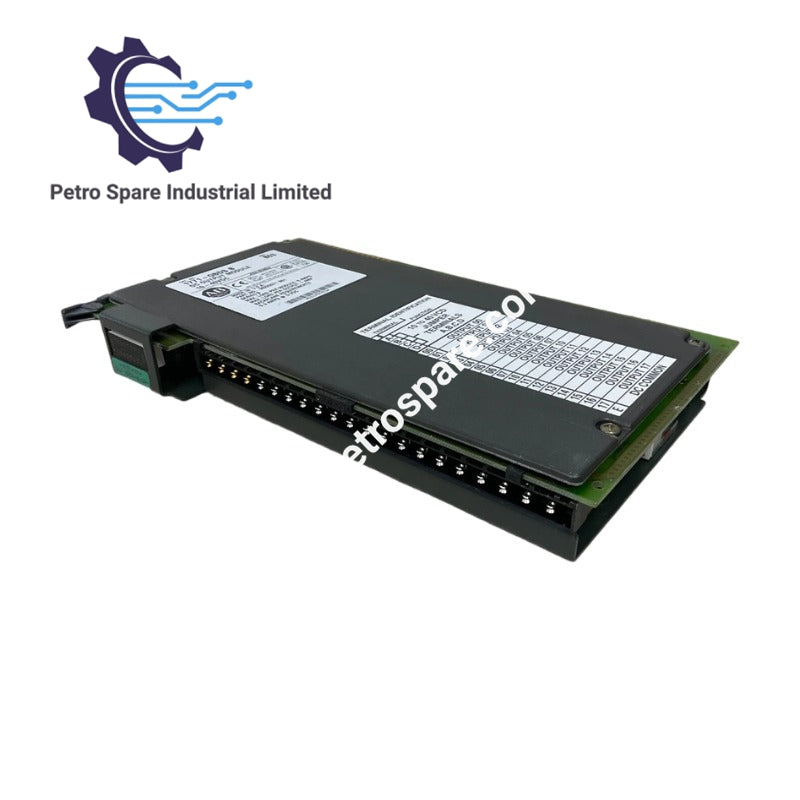

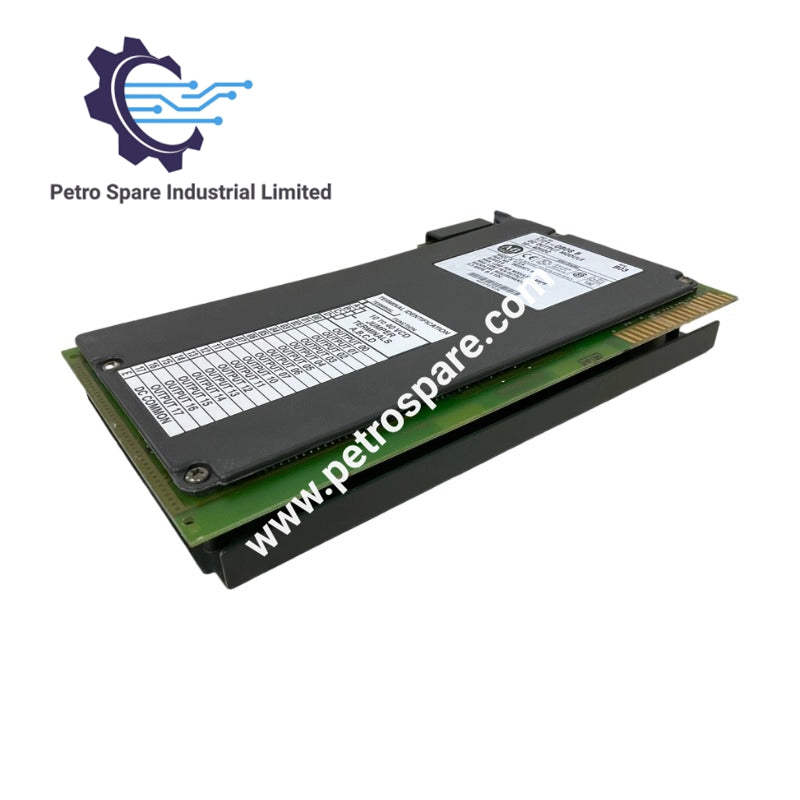

1771-OBDS

Product Overview

1771-OBDS is a current-limiting DC digital output module in the Allen-Bradley PLC-5 series.

Technical Specifications

• Number of Outputs: 16 Outputs
• Voltage Category: 10–60 V DC (Source)
• DC Operating Voltage: 10–40 V
• Backplane Current: 300 mA
• Max Continuous Current Per Output: 1 A
• Max Continuous Current Per Module: 8 A
• Wiring Arm: 1771-WH
• Coating: Conformal coat
• Data Format: BDC or Natural Binary
• Typical AC Signal Delay (Off): 45 ±15 ms
• Typical DC Signal Delay (Off): 50 ms
• ESD Immunity: 4 kV contact discharge, 8 kV air discharge
• Mounting: Rack mountable
