IC670MDL930

Product Overview

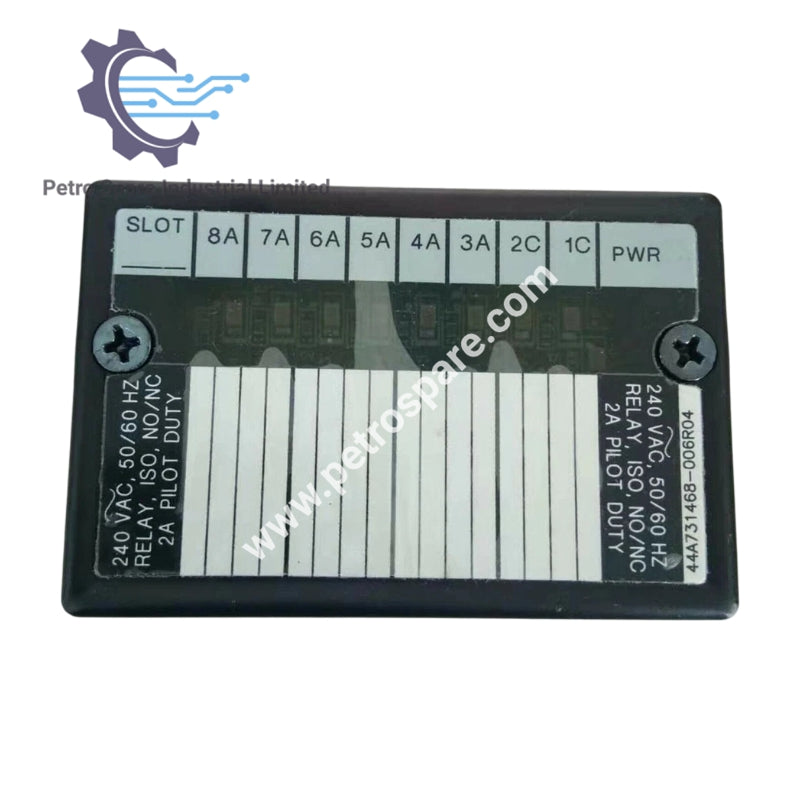

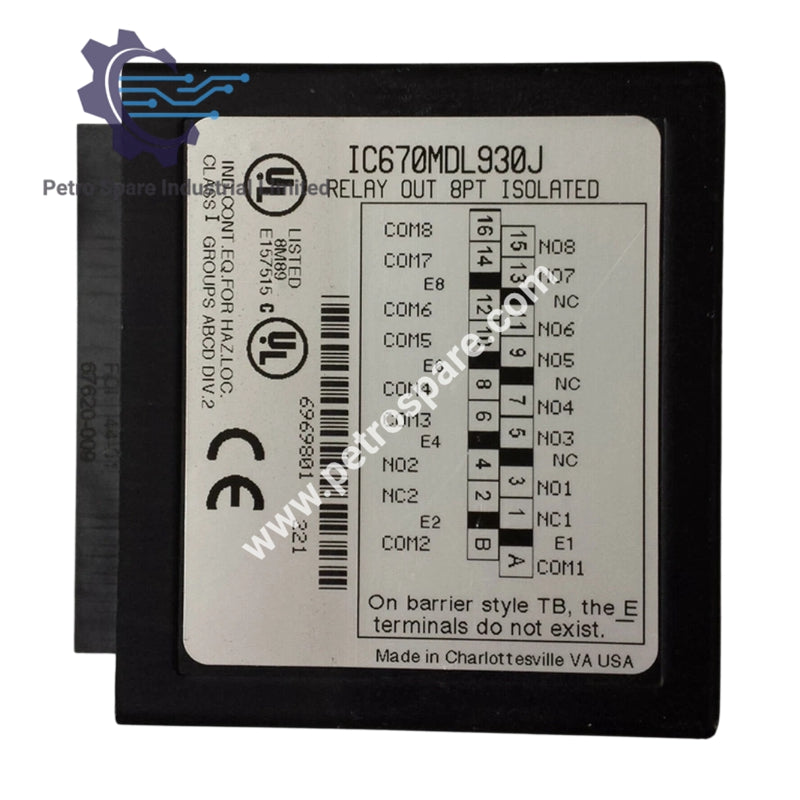

The IC670MDL930 is a Field Control I/O relay output module manufactured by GE Fanuc Emerson.

Technical Specifications

• Manufacturer: GE Fanuc Emerson
• Product Line: Field Control
• Weight: 0.56 lbs (0.26 kg)
• Rated Voltage: 5/24/125 Volts DC, 120/240 Volts AC
• Number of Channels: Eight (8) relay outputs
• Voltage Range: 0-130 Volts DC, 0-265 Volts AC
• Contact Forms: Six (6) Normally Open (Form A); Two (2) Normally Closed (Form C)
• Frequency Range: 47-63 Hertz
• Maximum Load Current: 16 Amps per module
• Relay Type: Fixed coil, moving armature
• Current Drawn from BIU: 313 mA
• LED Indicators: Individual channel LED; PWR LED
• Switching Frequency: 20 cycles/minute
• Contact Type: Silver Alloy
• Protection: Snubber, no fuse
• Maximum Inrush: 5 Amps for 20 ms
• Minimum Load Current: 10 mA per point
• Contact Life: Mechanical: 20 x 10^6 operations; Electrical: 10^5 operations at rated resistive load
• Product Lifecycle Status: Discontinued/Obsolete
