PLX32-EIP-SIE

Product Overview

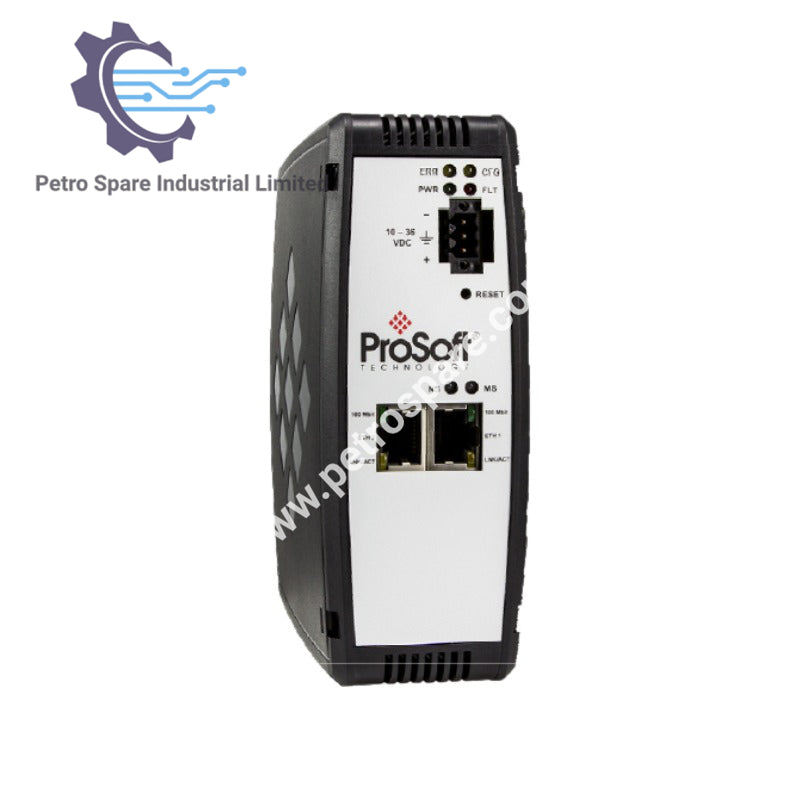

The PLX32-EIP-SIE is a ProSoft Industrial Ethernet Communication Gateway providing data exchange between EtherNet/IP and Siemens Industrial Ethernet networks.

CIP Connections

• Class 3 Server Connections: 5
• Class 3 Client Connections: Connected: 2, Unconnected: 1
• Class 1 I/O Connections: 2
• I/O Connection Sizes: 248/248
• Max RPI Time: 5 ms per connection

Supported PLC Types

• PLC2, PLC5, SLC, CLX, CMPLX, MICROLX

Supported Message Types

• PCCC and CIP

CIP Services Supported

• 0x4C - CIP Data Table Read
• 0x4D - CIP Data Table Write

Command List Support

• 100 commands per Client, configurable for command type, IP address, register to/from addressing and word/bit count

Command Sets

• PLC-2/PLC-3/PLC5 Basic Command Set
• PLC5 Binary Command Set
• PLC5 ASCII Command Set
• SLC500 Command Set

Siemens Industrial Ethernet Specifications

• Supported PLC Data Exchange: Siemens S7-200, S7-300, S7-400, S7-1200, S7-1500
• Supported Register Types: DB, Inputs, Outputs, Flags, Counters, Timers
• Supported Clients: 20

Power Supply

• Nominal Voltage: 24V DC
• Allowed Range: 10 to 36V DC
• Terminals: Positive, Negative, GND
• Current Load: 24V DC nominal @ 300 mA; 10-36V DC @ 610 mA max

Temperature & Humidity

• Operating Temperature: –25°C to +70°C
• Storage Temperature: –40°C to +80°C
• Relative Humidity: 5% to 95% RH (non‑condensing)

Dimensions

• H × W × D: 5.38 × 1.99 × 4.38 in (13.67 × 5.05 × 11.13 cm)

Included Accessories

• 2.5 mm screwdriver
• J180 Power Connector

---
