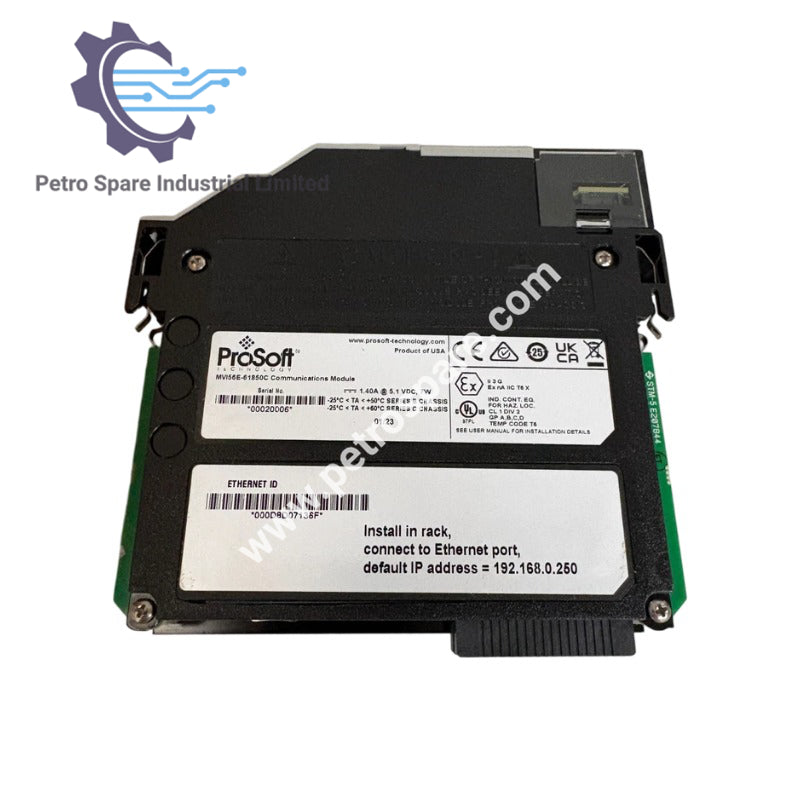

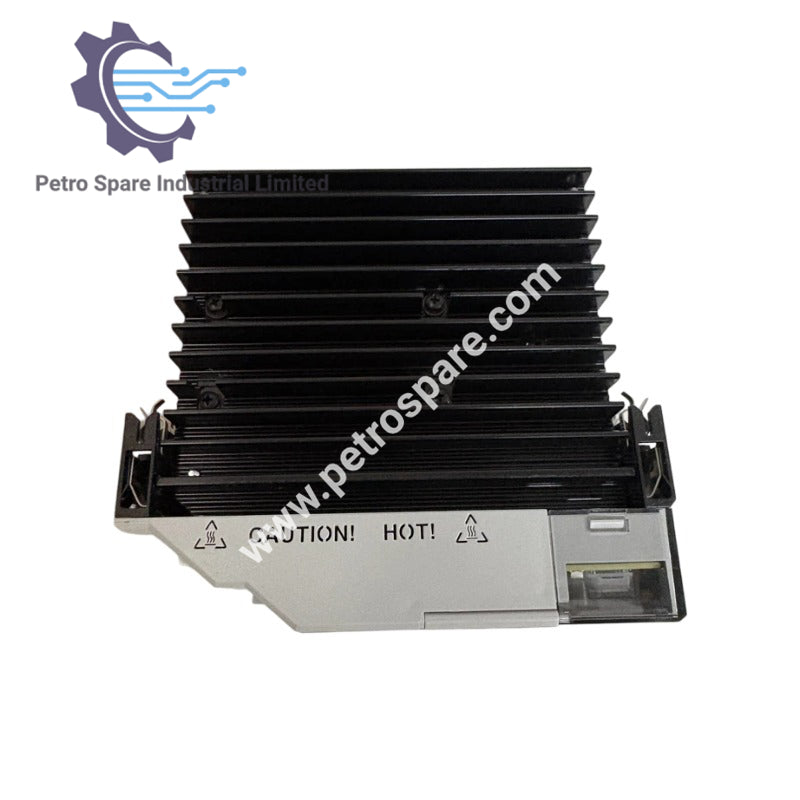

MVI56E-61850C

Product Overview

The MVI56E-61850C is a ProSoft Client Communication Module for ControlLogix, supporting IEC 61850 ACSI Basic Conformance with SCSM: IEC 61850 8.1 (MMS) and full ACSI model conformance.

ACSI Model Conformance

• Reporting
• GOOSE
• Control
• Buffered Report Control Block (BRCB)
• Unbuffered Report Control Block (URCB)
• entryID, DataRefInc
• Direct‑with‑Normal‑Security
• SBO‑with‑Normal‑Security
• Direct‑with‑Enhanced‑Security
• SBO‑with‑Enhanced‑Security

Logical Nodes

• IEC 61850 Logical Nodes, including Logical Nodes for Hydro Power Plants and Logical Nodes for Wind Power Plants

Configurable Parameters

• Status Data
• MMS Command Delay
• Status available per node
• Report and GOOSE status available
• High‑level status data available within Studio 5000

---
