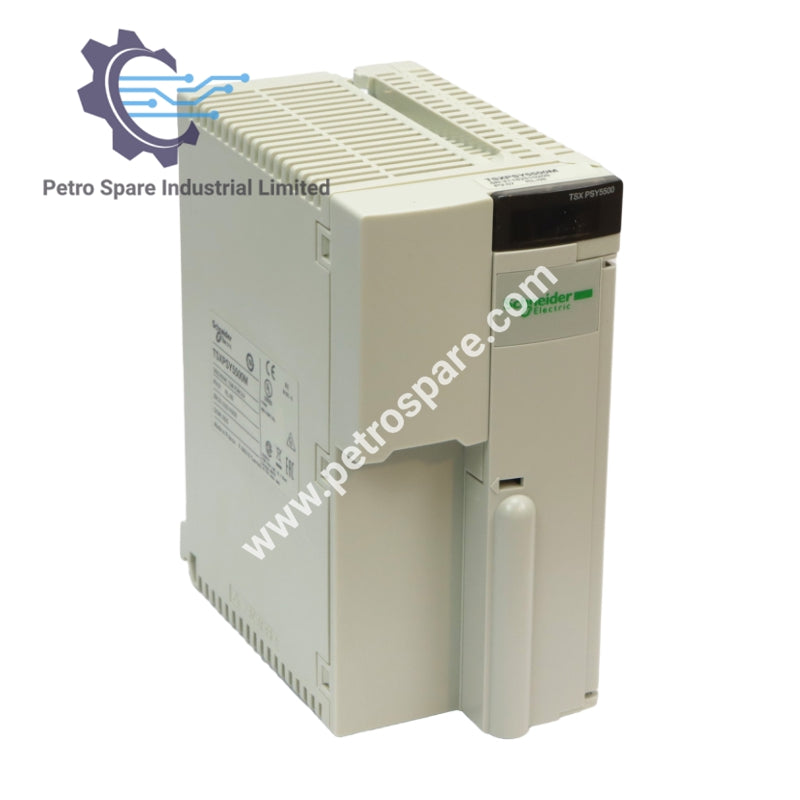

TSXPSY5500M

Product Overview

TSXPSY5500M is the TSXPSY5500M is a power supply module providing 24 V DC output with dual AC input compatibility for the Modicon Premium platform.

Technical Specifications

Electrical Input

• Primary voltage: 100–120 V AC (85–140 V), 200–240 V AC (190–264 V)
• Network frequency: 50/60 Hz
• Network frequency limits: 47–63 Hz
• Input current: 1700 mA at 100 V, 500 mA at 240 V
• Inrush current: 38 A at 100 V / 240 V
• I²t on activation: 4 A²·s at 100 V, 2 A²·s at 240 V
• It on activation: 0.11 A·s at 100 V / 240 V

Protection

• Primary protection: Internal time-delay fuse 4 A (5 × 20 mm)
• Secondary protection: Overload protection, overvoltage protection, short-circuit protection

Output

• Total useful secondary power: 50 W
• Secondary power (24 V DC): 19 W
• Secondary power (5 V DC): 35 W
• Current at secondary voltage: 0.8 A (24 V DC relay power supply)

Environmental & Electrical Strength

• Immunity to microbreaks: ≤ 10 ms
• Dielectric strength: 2000 V primary/earth, 2000 V primary/secondary

---
