TSXPSY5500

Product Overview

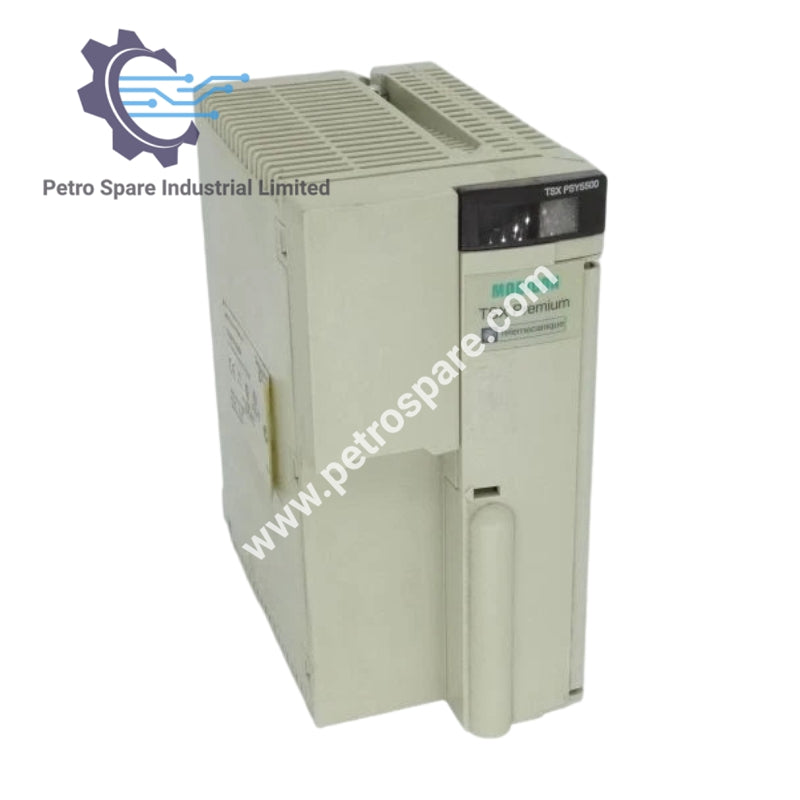

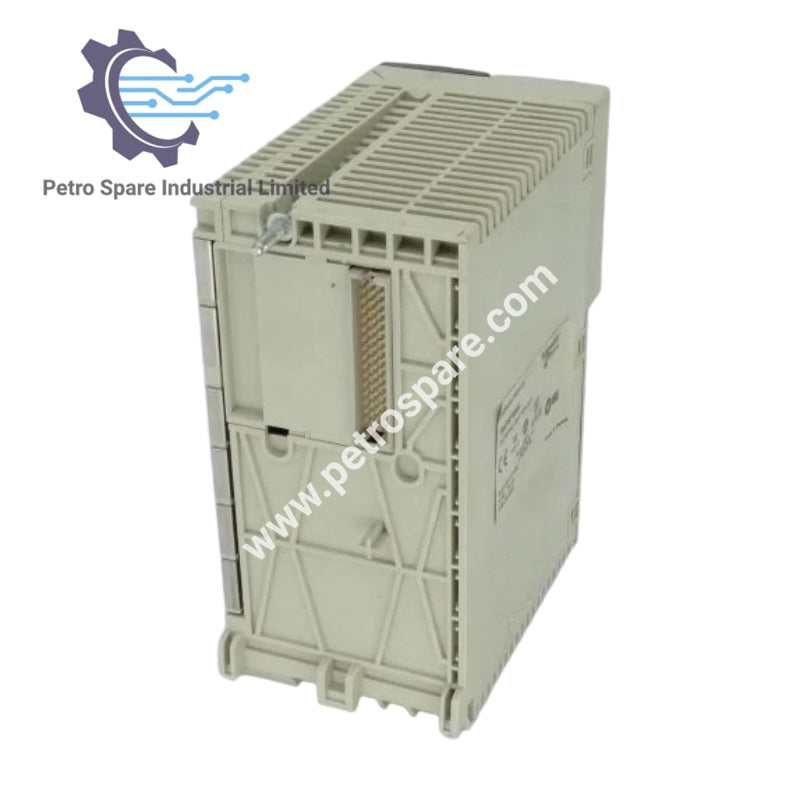

The Schneider Electric TSXPSY5500 is a high-performance power supply module belonging to the Modicon Premium automation platform.

Technical Specifications

• Electrical Characteristics
• Primary Voltage: 100...120 V AC (85...140 V) or 200...240 V AC (190...264 V)
• Network Frequency: 50/60 Hz (47...63 Hz limits)
• Input Current: 1700 mA at 100 V, 500 mA at 240 V
• Inrush Current: 38 A at 100 V, 38 A at 240 V
• I²t on Activation: 4 A².s at 100 V, 2 A².s at 240 V
• It on Activation: 0.11 A.s at 100 V, 0.11 A.s at 240 V
• Power Output
• Total Useful Secondary Power: 50 W
• Secondary Power: 19 W at 24 V DC, 35 W at 5 V DC
• Current at Secondary Voltage: 7 A at 5 V DC, 0.8 A at 24 V DC relay power supply, 0.8 A at 24 V DC sensor power supply
• Protection & Insulation
• Protection Type: Internal fuse (4 A, 5 x 20 mm time-delayed primary circuit), overload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
• Insulation Resistance: >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
• Compliance & Standards
• Marking: CE
