1769-PA2

Product Overview

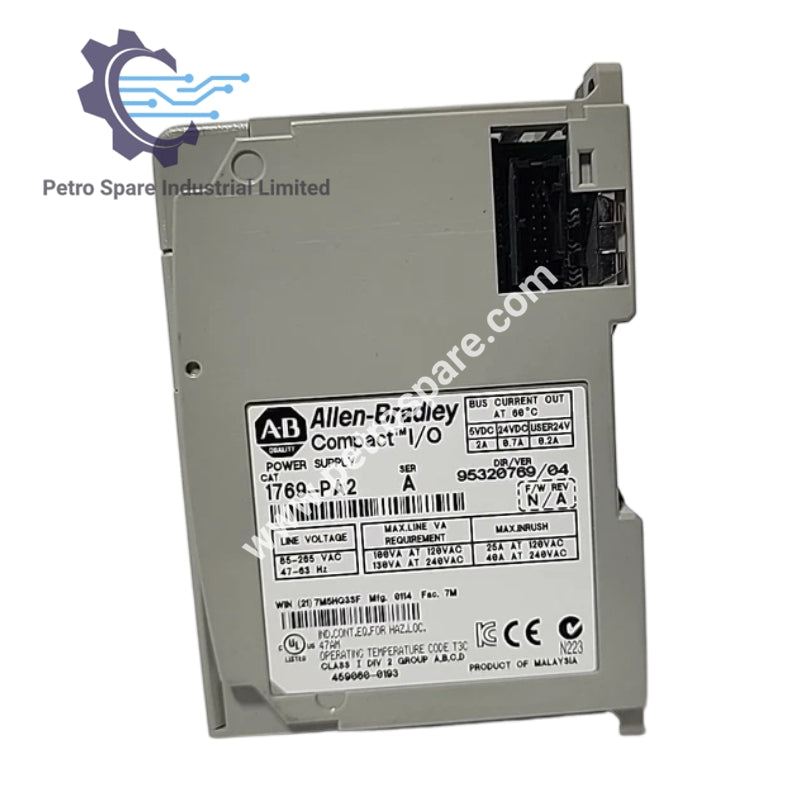

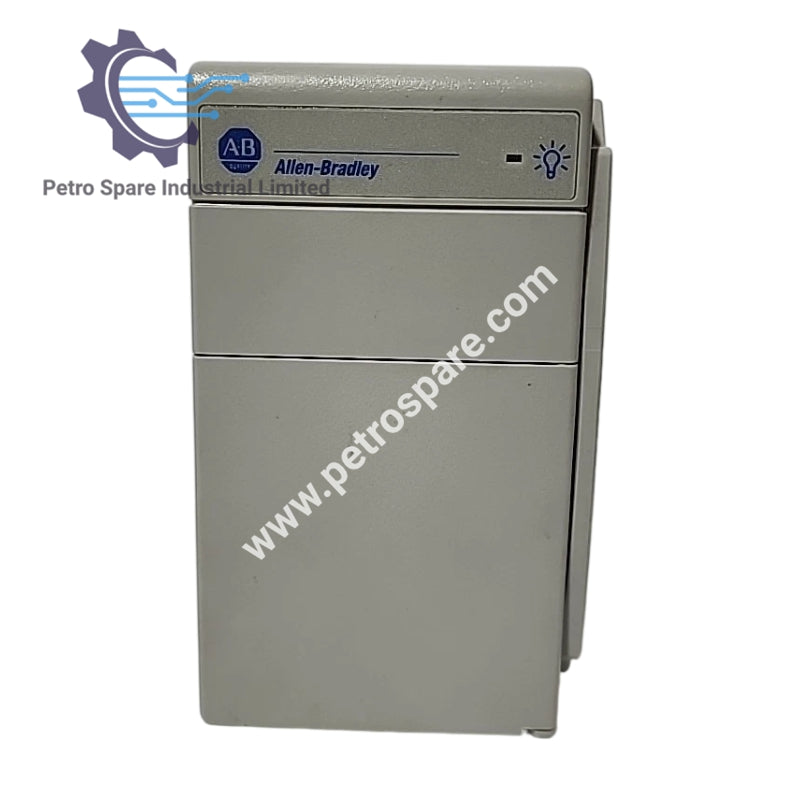

1769-PA2 is a power supply module from Allen Bradley’s CompactLogix series.

Technical Specifications

• Manufacturer: Allen Bradley
• Product Type: Power Supply Module
• Product Line: CompactLogix
• Nominal Input Voltage: 120/220V AC
• Input Voltage Range: 85-265V AC
• Power Consumption: 100 VA at 120V AC, 130 VA at 240V AC
• Power Dissipation: 8 Watts at 60°C
• Current Capacity at 5V: 2 Amps
• Current Capacity at 24V: 0.8 Amps
• Max. Inrush Current: 25 Amps at 132V AC
• Panel Mounting: Supported
• DIN Rail Mounting: Supported
• Mounting Screw Torque: 1.16 Nm
• Power Supply Distance Rating: 8 Modules
