1734-IE4C

Product Overview

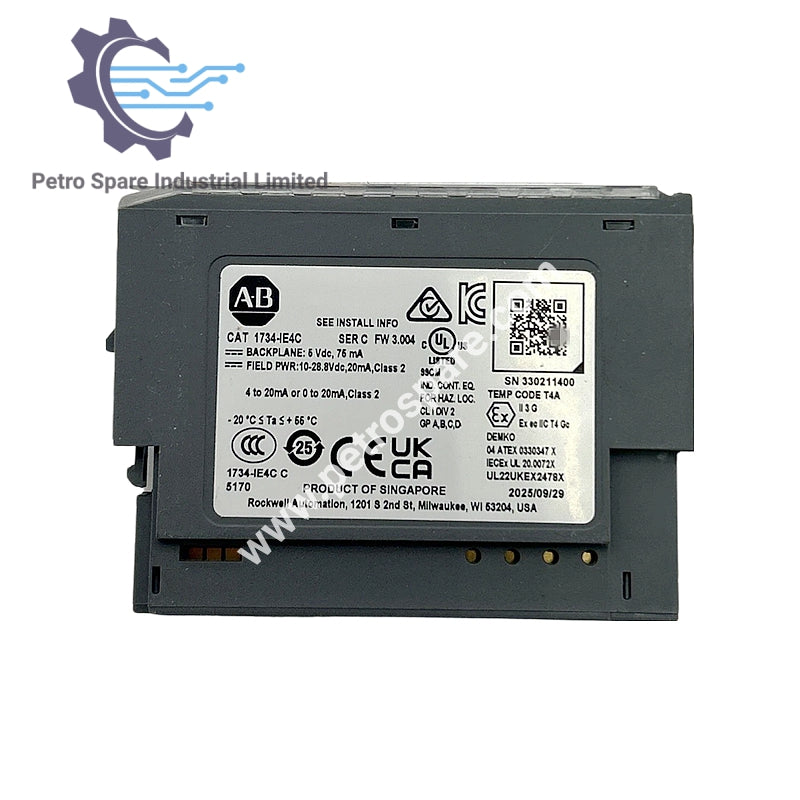

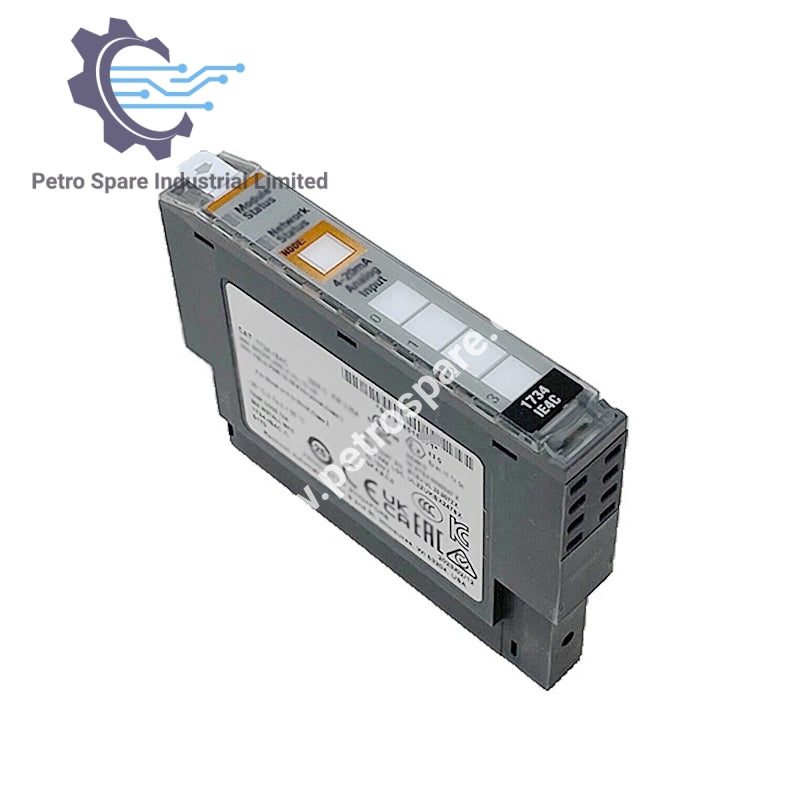

The Point I/O 1734-IE4C Allen-Bradley Analog Input Module is designed for precise current signal input monitoring.

General Specifications

• Weight: 0.06 lbs (0.03 kg)
• Series: POINT I/O
• Module Type: Analog Input Module
• Inputs: Four (4) single-ended, non-isolated
• Key Switch Position: 3
• Signal Type: Current
• Enclosure Type Rating: Open
• Input: 4-Point
• Data Format: Signed Integer

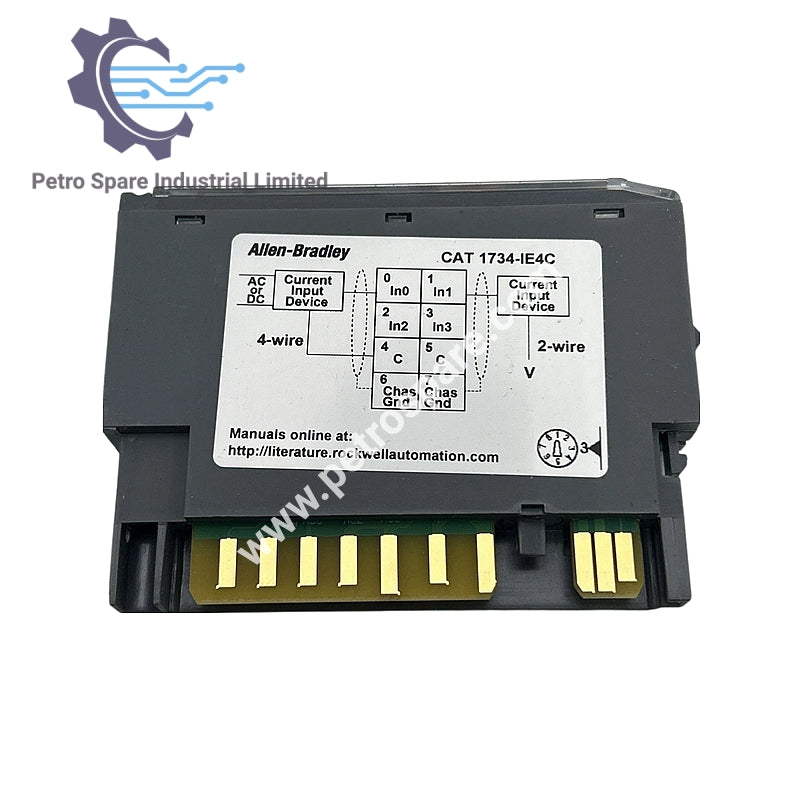

• Terminal Base: 1734-TB3, 1734-TB3S wiring base assembly

Input Specifications

• Input Signal Range: 4 - 20 mA, 0 - 20 mA
• Conversion Type: Delta Sigma
• Absolute Accuracy: 0.1% Full Scale @ 25 °C
• Resolution: 16 bits - over 0 - 21 mA, 0.32 μA/cnt

Power Specifications

• Power Dissipation: 0.55 W @ 28.8 V DC
• Thermal Dissipation: 2.0 BTU/hr @ 28.8 V DC

---
