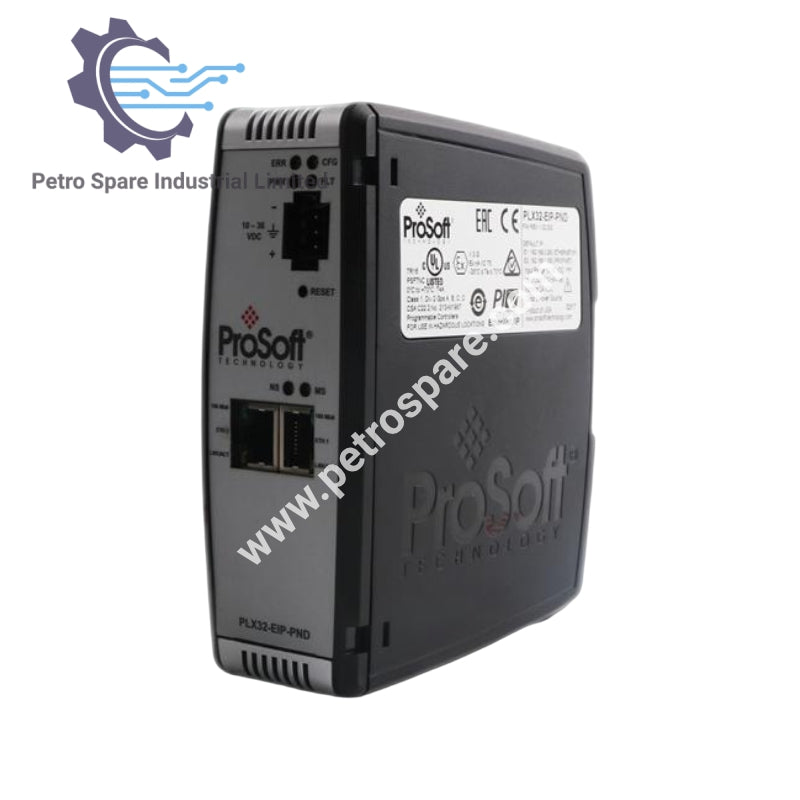

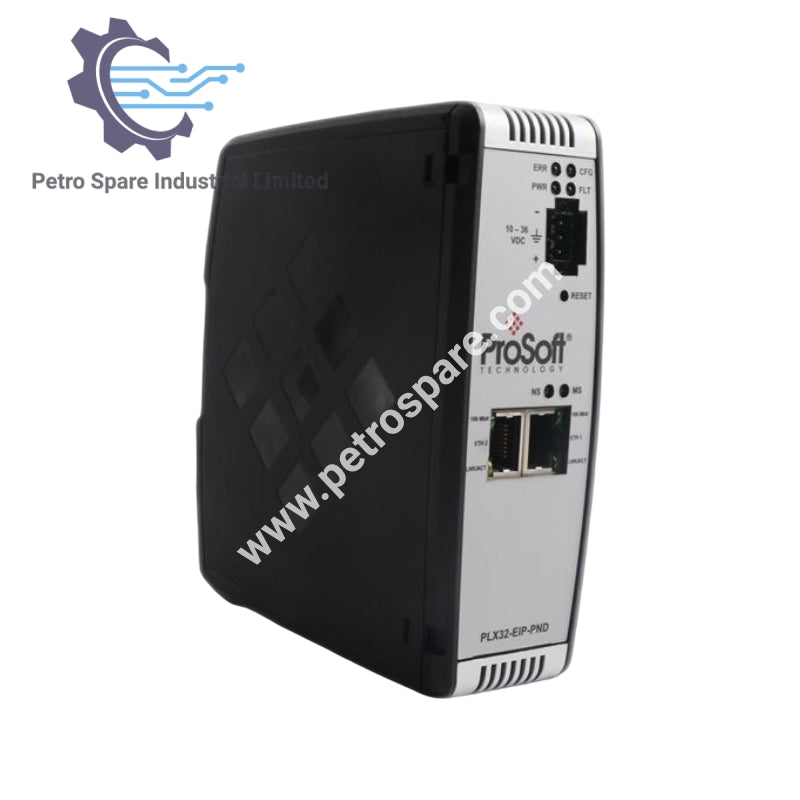

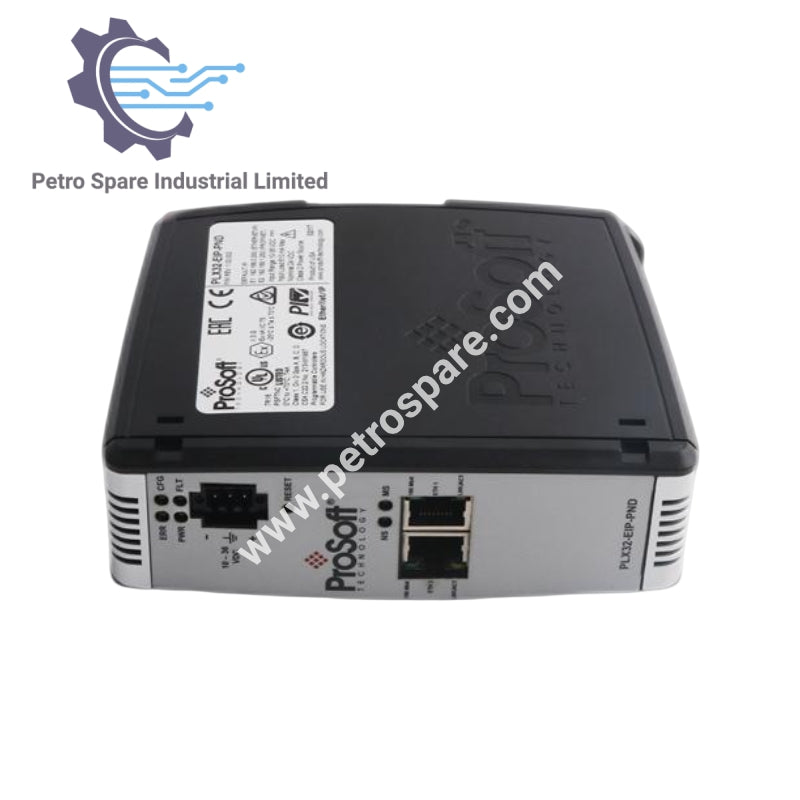

PLX32-EIP-PND

Overview

• Model: PLX32-EIP-PND

• Type: EtherNet/IP to PROFINET Gateway

• Application: Industrial gateway enabling seamless communication between EtherNet/IP and PROFINET networks

Electrical Characteristics

• Power Supply: 24 V DC nominal

• Allowed Range: 10 … 36 V DC

• Current Load:

  • 24 V DC nominal: 300 mA

  • 10 … 36 V DC: 610 mA max

• Terminals: Positive, Negative, GND

Environmental Conditions

• Operating Temperature: –25 … +70 °C (–13 … +158 °F)

• Storage Temperature: –40 … +80 °C (–40 … +176 °F)

• Relative Humidity: 5 … 95% RH (non‑condensing)

• Shock Resistance: IEC 60068‑2‑27; 15 G @ 11 ms, 3‑axis (operational) / 30 G @ 18 ms, 3‑axis (non‑operational)

• Vibration Resistance: IEC 60068‑2‑6; 5 G @ 10 … 150 Hz

Mechanical Specifications

• Dimensions (H × W × D): 13.67 × 5.05 × 11.13 cm (5.38 × 1.99 × 4.38 in)

• Design: Compact DIN‑rail mountable gateway

Connectivity

• Ethernet Ports: (2) RJ45, 10/100 Mbit, full/half duplex

• Electrical Isolation: 1500 V rms @ 50 … 60 Hz for 60 s (IEC 60950:1991 section 5.3.2)

• Ethernet Broadcast Storm Resiliency: ≤ 5000 ARP frames/s, ≤ 5 min duration

Shipped Accessories

• Included: 2.5 mm screwdriver, J180 power connector

---
