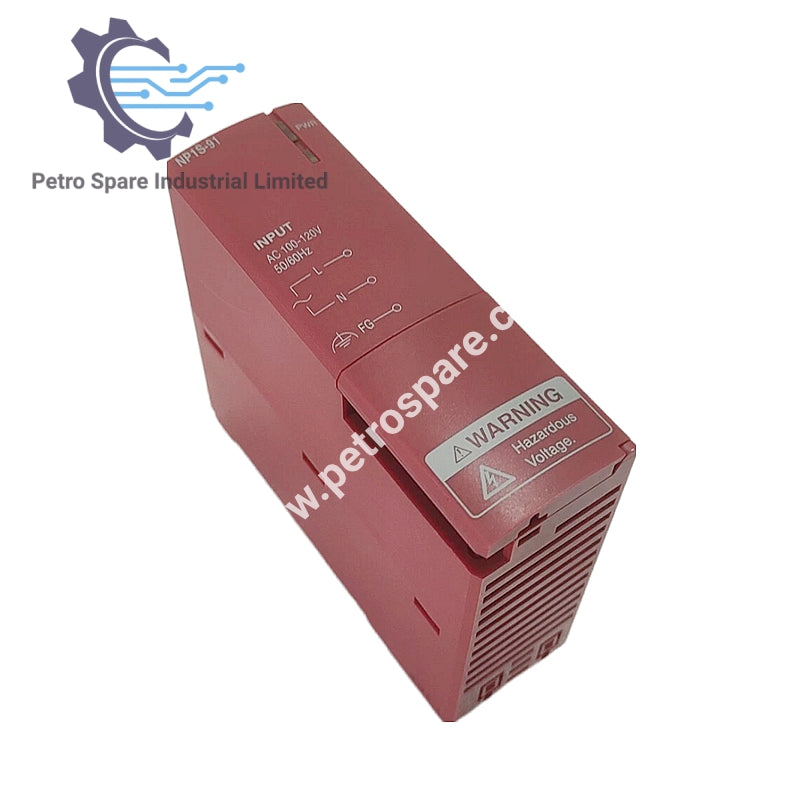

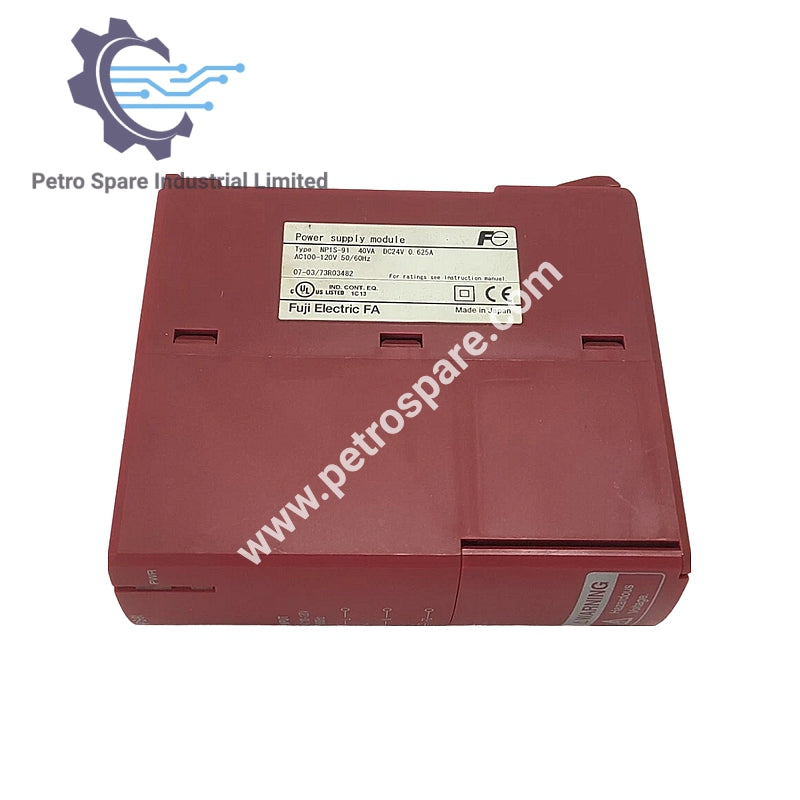

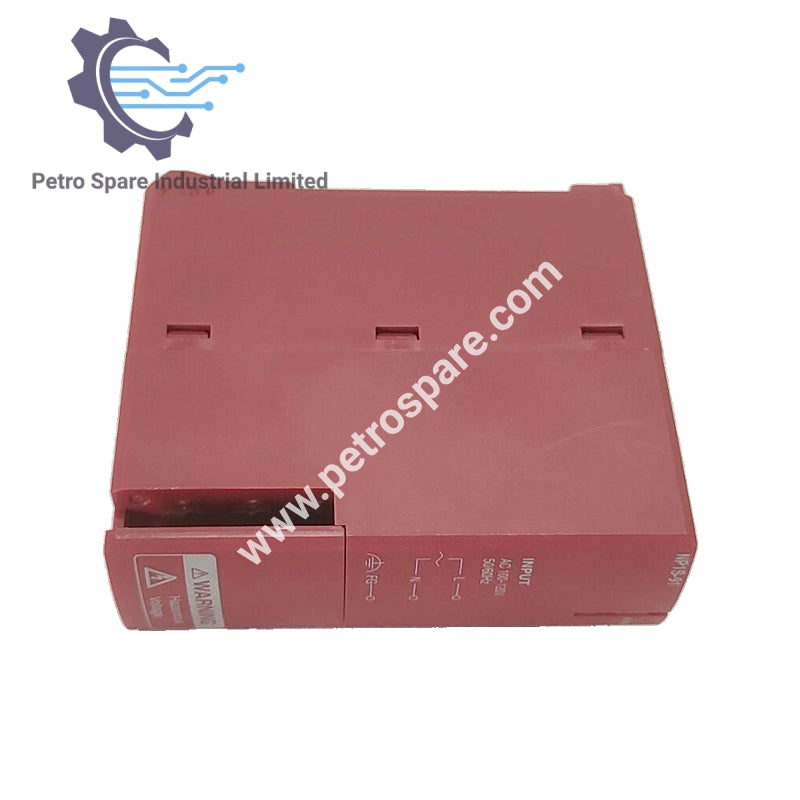

NP1S-91

Overview

NP1S-91 is a Fuji Electric power supply module designed for industrial automation systems, providing stable 24 V DC output with transformer isolation.

Electrical Input

• Rated input voltage: 100–120 V AC (85–132 V AC) / 170–264 V AC

• Rated frequency: 50/60 Hz

• Frequency tolerance: 47–63 Hz

• Power failure tolerance: ≤1 cycle (≤10 ms at rated load)

• AC waveform distortion factor: ≤5 %

• Leakage current: ≤0.25 mA

• Inrush current (≤25 °C, non-repetitive): ≤2.5 A (≤1 ms)

• Power consumption: ≤110 VA

Electrical Output

• Rated output voltage: 24 V DC (22.8–26.4 V DC)

• Output current: 0–1.46 A

• Isolation method: Transformer

---
