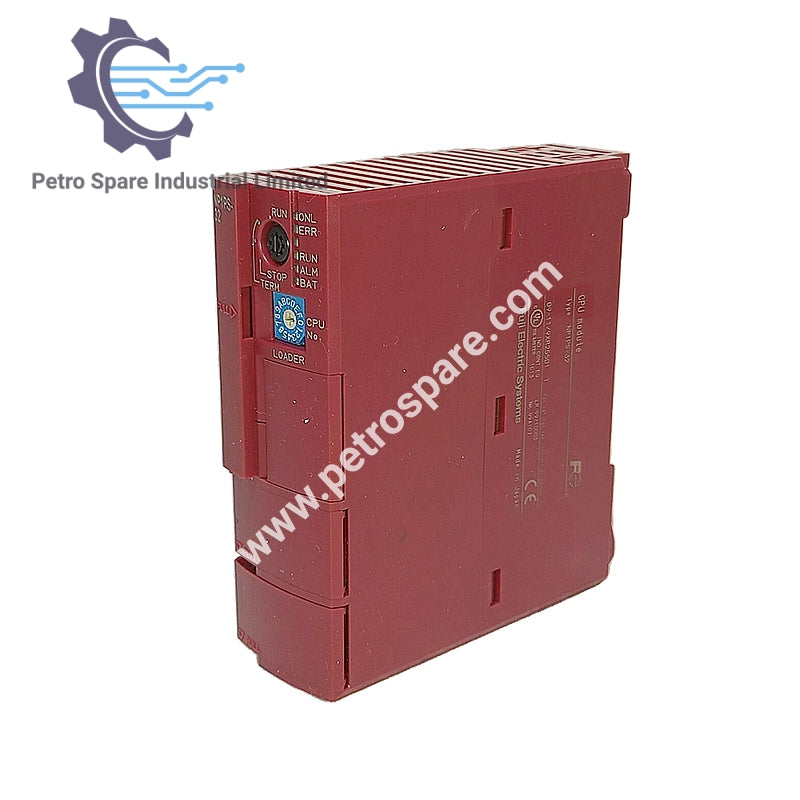

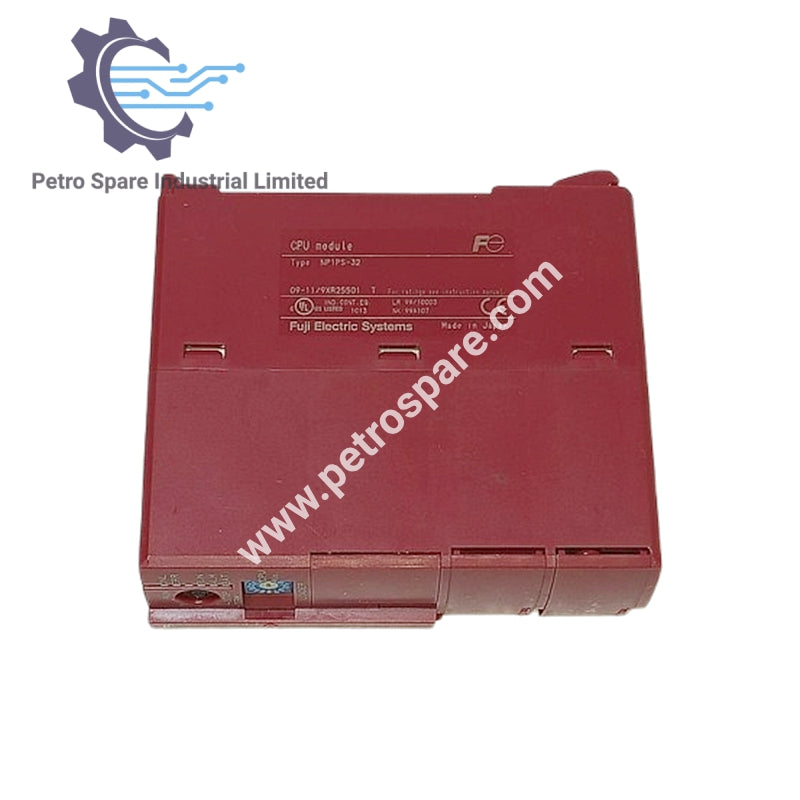

NP1PS-32

Overview

NP1PS-32 is a Fuji Electric CPU module with 32-bit OS processor, supporting multiple programming languages (IL, ST, LD, FBD, SFC), direct and remote I/O control, and cyclic scan system with periodic and event tasks.

Control & Operation

• Control method: Stored program, cyclic scan system

• Task types: Default cyclic task (1), periodic tasks (max. 4), event tasks (max. 4, total ≤4 with periodic)

• I/O control: Direct I/O (SX bus), remote I/O (OPCN-1, DeviceNet)

• I/O system: Device-level network (per corresponding module manual)

CPU & Programming

• Processor: 32-bit OS processor

• Memory types: Program, data, temporary

• Programming languages:

  • With D300win: IL, ST, LD, FBD, SFC

  • With Standard Loader Origin LD: LD only

• Program capacity: 32,768 steps

• I/O points: 512 words (max. 8,192 points)

Memory

• General memory: 8,192 words

• Retentive memory: 4,096 words

• User FB instance memory: 4,096 words

• Timers: 512 points

• Integral timers: 128 points

• Counters: 256 points

• Edge detection points: 1,024

• Other system FB memory: 8,192 words

• System memory: 512 words

Program & Tasks

• Programs (max.): 256 (max. 128 per task)

Electrical Data

• Supply voltage (DC): 24 V

• Current consumption: ≤200 mA

---
