MPC265

Overview

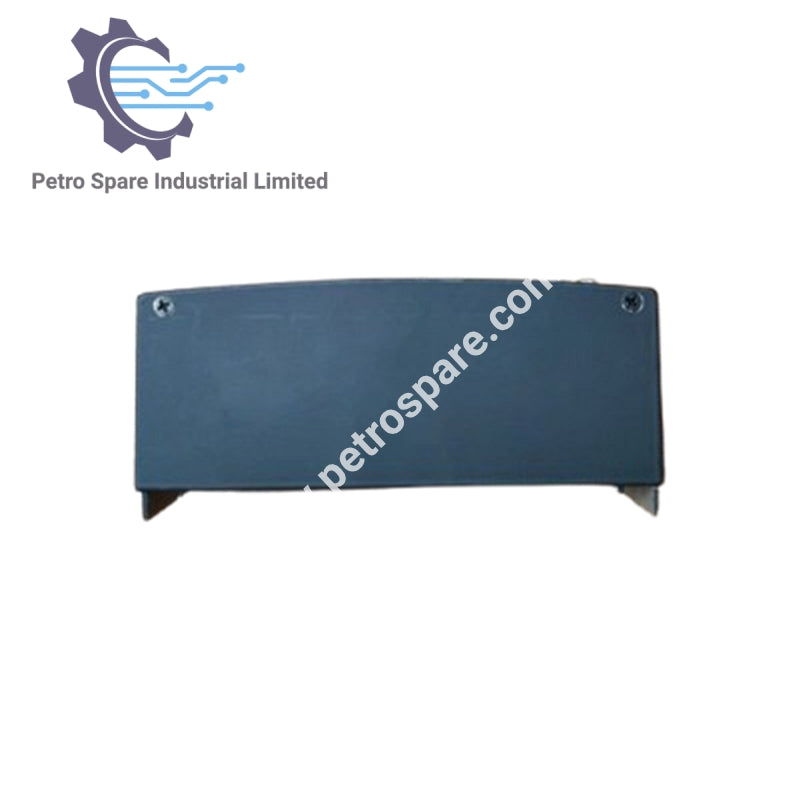

MPC265 is a Bachmann MPC200 series processor module with embedded Celeron/Pentium III architecture, supporting multiple memory types and industrial interfaces.

Identification

• Series: MPC200

• Model: MPC265

• CPU: Celeron 650 MHz

• Architecture: Celeron / Pentium III, 400/650/700 MHz

Memory

• CF (mass storage): No restriction

• NVRAM-0: 512 Kb SRAM, battery backup

• NVRAM-1: 64 Kb FRAM, no battery

• DRAM: 64 or 128 MB

• PC card: PCC201/xx with 16/32/64 MB FLASH

• Internal FLASH: 4 MB system software

Interfaces

• Serial: 1× RS232 + 1× RS232/422/485

• Ethernet: 2× 10/100 Base-TX

• USB: 1× V1.1

Power Supply

• External module: 5 V, ±15 V via backplane

Ambient Conditions

• Operating temperature: 0–60 °C (fan-free)

• Relative humidity: 5–95 % (non-condensing)

---
