IS200AEPAH1ABB

Overview

The GE IS200AEPAH1ABB is a printed circuit board in the Mark VIe system, designed for Alternative Energy Pitch Axis control with multiple I/O capabilities.

General Information

• Manufacturer: General Electric

• Series: Mark VIe

• Function: Pitch axis control PCB

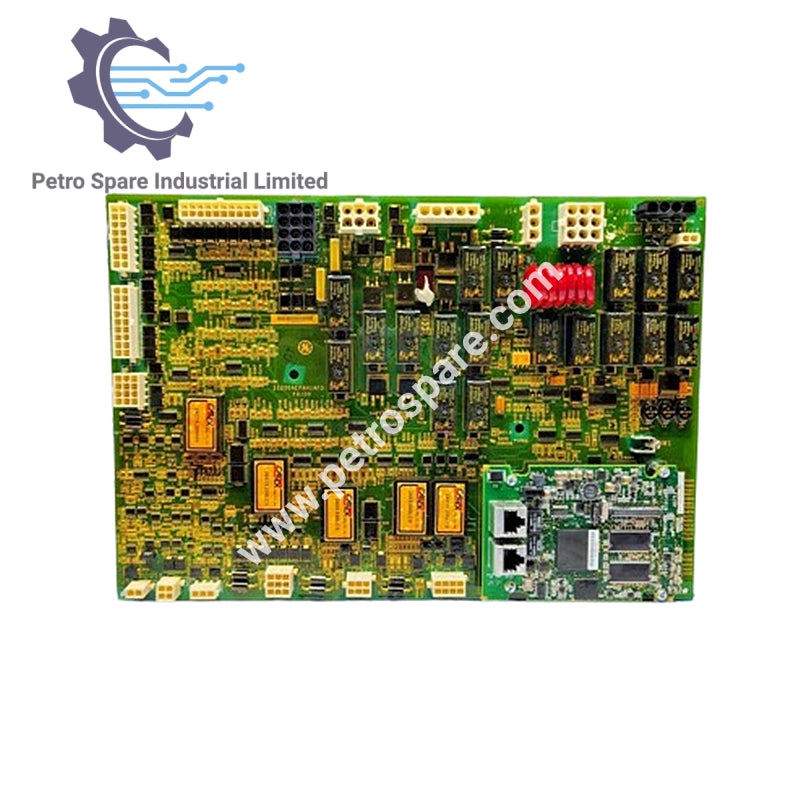

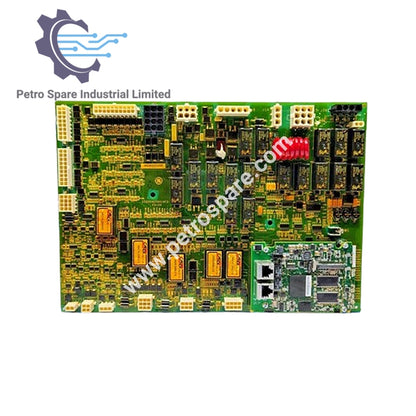

Hardware Features

• Auxiliary Board: Optional, attached via screws and standoffs

• Connectors: Two male pin connectors for processor communication

• Components: Integrated circuits, two female phone plugs, three‑pin female connector, two LEDs

• Indicators: LED status lights along left edge

I/O Compatibility

• Analog Inputs: 8

• Incremental Encoder Input: 1

• Absolute Encoder Input: 1

• Analog Output: 1

• Discrete Inputs: 20

• Discrete Output: 1

• Relay Outputs: 8

• RS‑485 Interfaces: 2

• Brake Control Output: 1

---
