IS200JPDMG1A

Overview

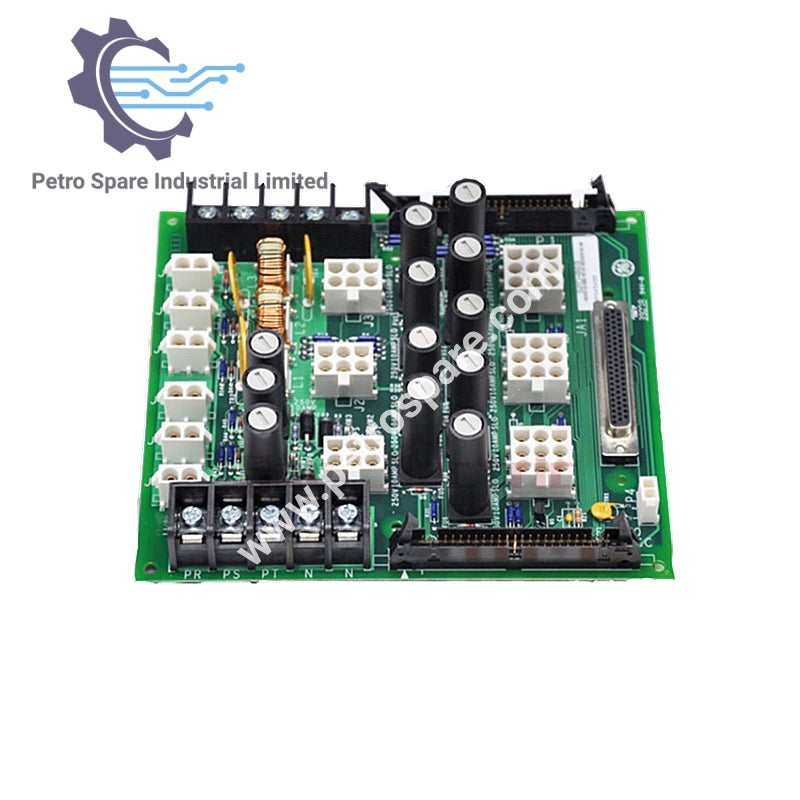

General Electric IS200JPDMG1A Mark VI Power Distribution Board (JPDM) is designed for the Mark VI Turbine Control System Series. It distributes power through multiple buses, integrates fuses and connectors, and supports PPDA I/O pack connections.

Basic Information

• Manufacturer: General Electric

• Product number: IS200JPDMG1A

• Series: Mark VI

• Type: Power Distribution Board

Connectors

• 50‑pin connectors: 2 (P1, P2)

• DC62 female connector: 1 (JA1, for PPDA I/O pack)

• Plugs: 13 total (3 × 9‑position, 7 × 2‑position, 3 × 6‑position)

Fuses & Terminal Blocks

• Fuses: 12, arranged in 3 lines

• Terminal blocks: 2, opposite sides of PCB

• Power buses: 3 accessible

• Max input per screw: 35 A

Components

• Varistors: 4

• Inductor coils: 3

• Transistors: Present

• Resistors: Various

• Capacitors: Numerous

---
