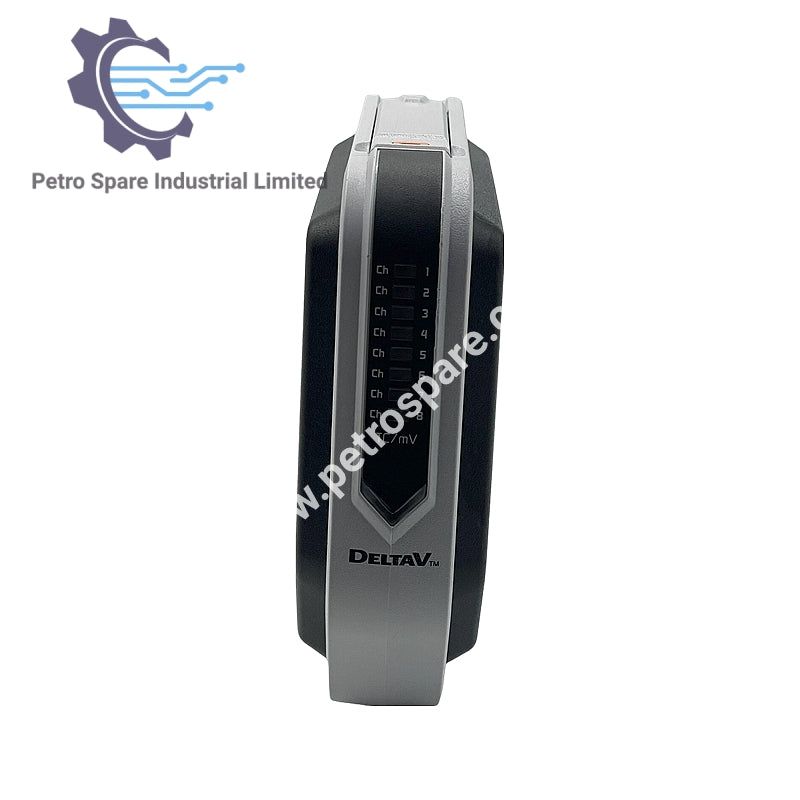

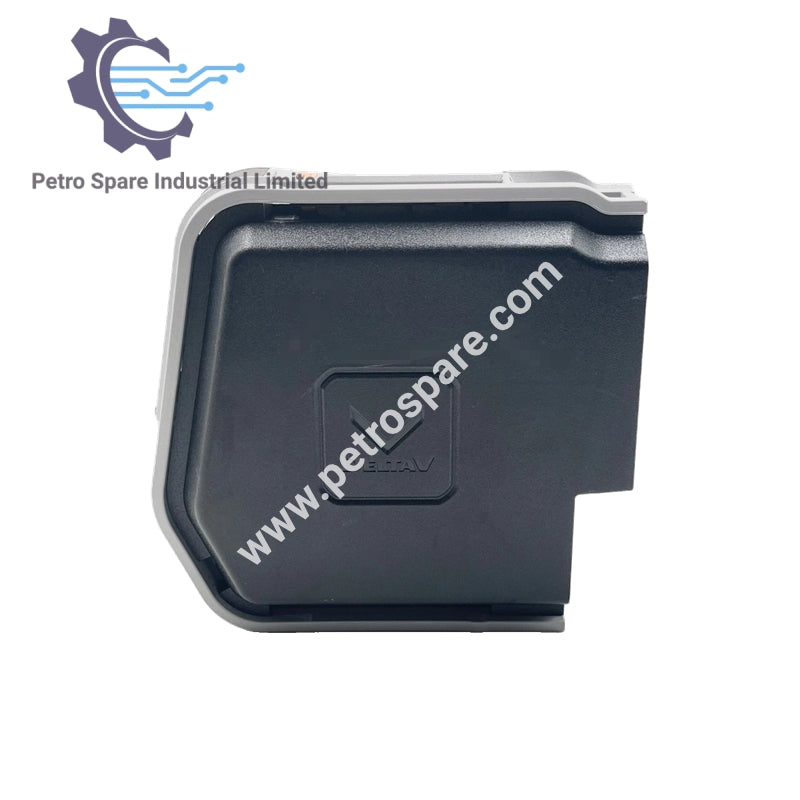

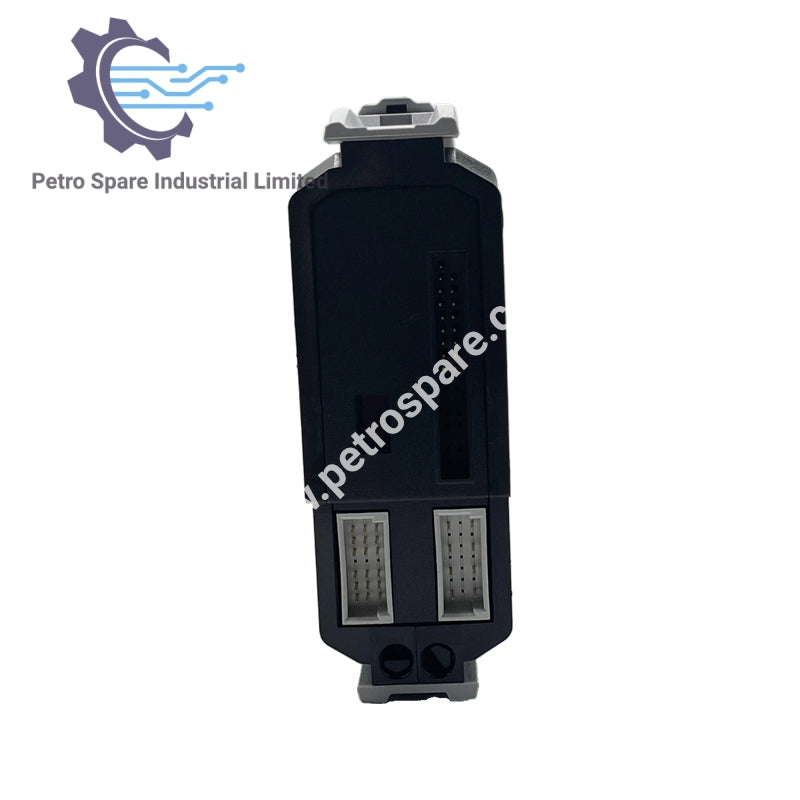

KJ3224X1-BK1

Product Overview

• Model: KJ3224X1-BK1

• Type: S-Series Thermocouple/mV Input Module

• Function: Thermocouple and millivolt signal input for Emerson S-Series systems

Power Specification

• Local Bus Power: 12 VDC at 210 mA

Environmental Specification

• Operating Temp: -40 °C to +70 °C

• Shock: 10 g, half-sine wave, 11 ms

• Vibration: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)

• Airborne Contaminants: ISA-S71.04-1985 Class G3

• Relative Humidity: 5–95%, non-condensing

• Terminal Block Key Position: C1

---
