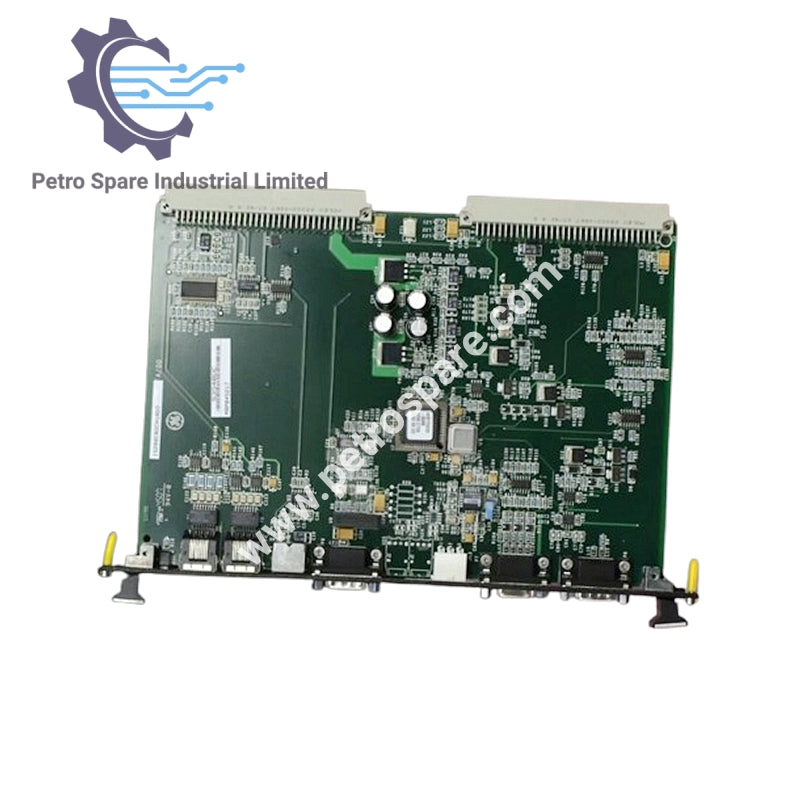

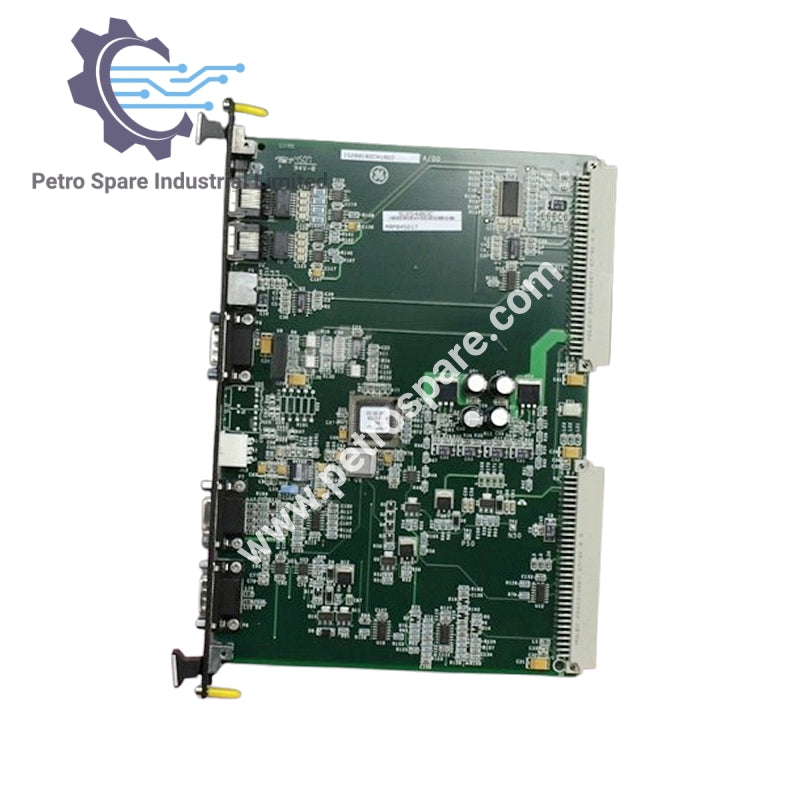

IS200EROCH1AED

Product Overview

General Electric IS200EROCH1AED Exciter Regulator Option Card (EROC) is part of the EX2100 series. It supports regulator options, ground detection, and terminal board power connections for exciter systems. The card integrates communication ports, LEDs, and ISBUS connectors for monitoring and control.

Basic Information

• Manufacturer: General Electric

• Series: EX2100

• Product number: IS200EROCH1AED

• Type: Exciter Regulator Option Card

Functional Features

• Supports: Regulator options, GE ground detector, terminal board power connection

• Associated module: IS200ERGTH1A (detects resistance leakage to ground in generator field current)

Interfaces

• Front faceplate: Keypad connector (RS‑232 cable)

• Backplane: Keypad connector

• ISBUS connectors: 2

• Tool connector: D‑pin

Indicators

• Power LED: Located at top of faceplate (GE Energy label)

• Status: Provides operational feedback

Components

• Circuits: Multiple integrated circuits

• Board design: Single slot with connectors and monitoring features

---
