6ES7153-4BA00-0XB0

Product Overview

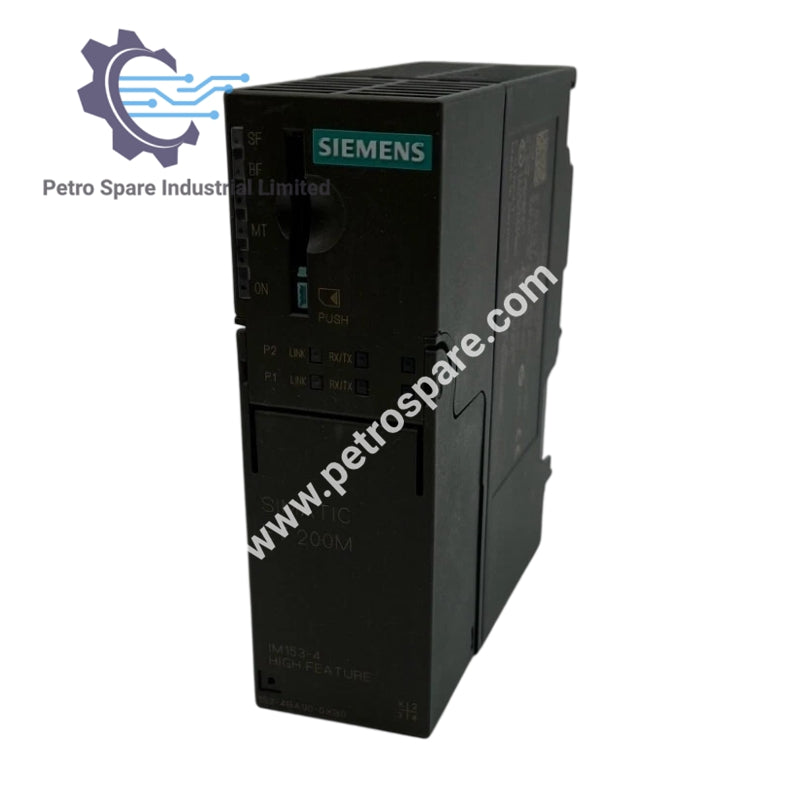

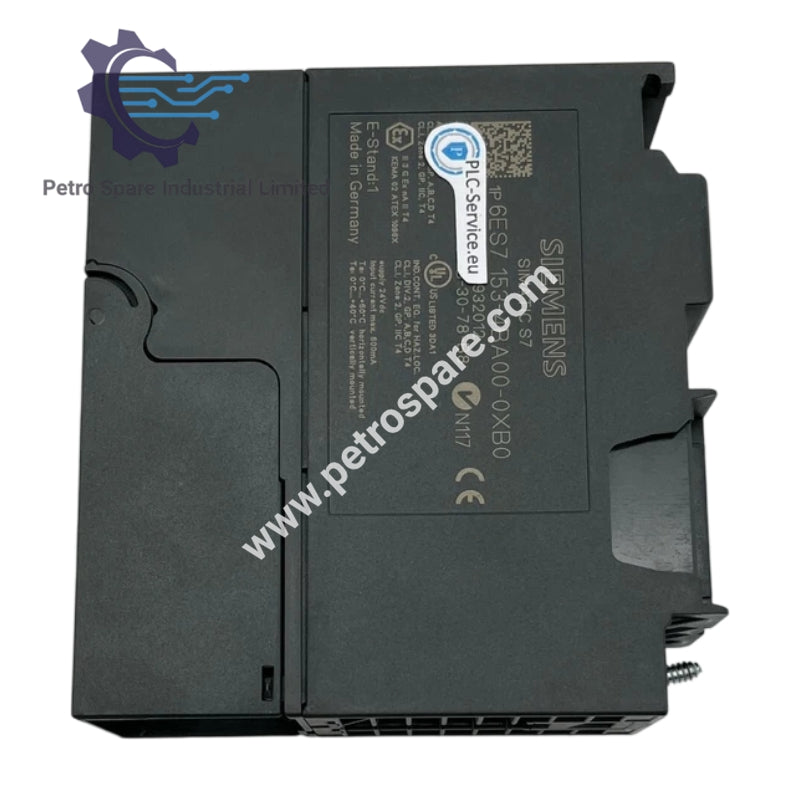

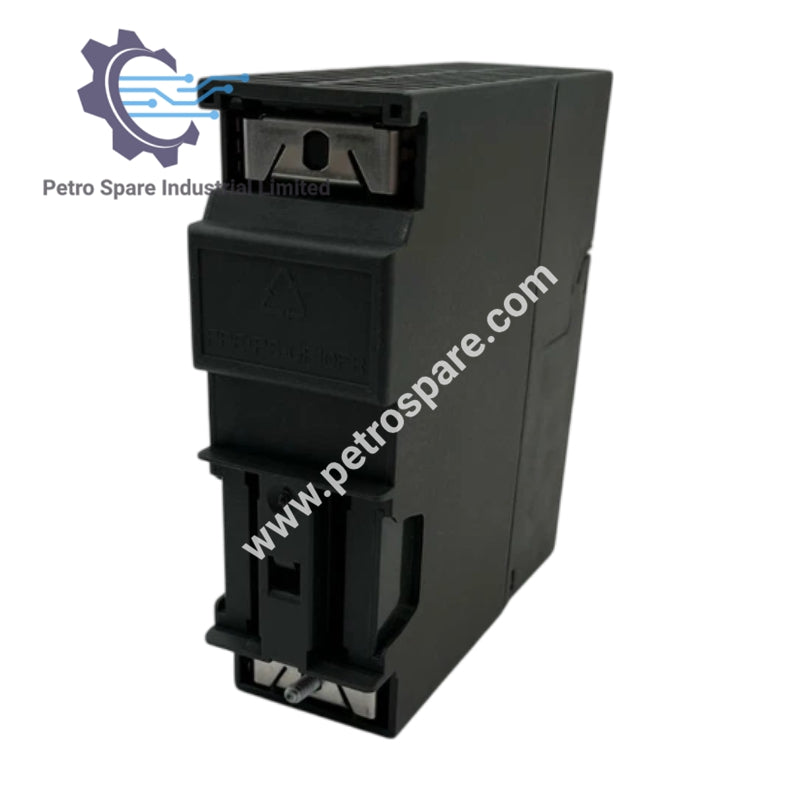

6ES7153-4BA00-0XB0 is a SIMATIC DP ET 200M interface module (IM 153-4 PN IO High Feature) that supports up to 12 S7-300 modules, including fail-safe modules, HART modules, Shared Device functionality, and Media Redundancy Protocol (MRP).

Technical Specifications

• Vendor ID: 002AH

• Device ID: 0302H

• Supply Voltage:

• Rated Voltage: 24 V DC
• Permissible Range: 20.4 to 28.8 V DC
• Permissible Range (Including Ripple): 18.5 to 30.2 V DC

• Protection Requirements:

• Fuse recommended for redundant interface modules in grounded systems
• Recommended fuse rating: 2.5 A

• Power Characteristics:

• Stored Energy Time During Power Failure: 5 ms
• Maximum Current Consumption: 600 mA
• Typical Inrush Current: 4 A
• I²t Value: 0.09 A²·s
• Typical Power Loss: 6 W

• Output Specifications:

• Output Voltage: 5 V DC
• Backplane Bus Output Current: Up to 1.5 A

• Address Capacity:

• Input Data: 672 bytes (including extended HART user data)
• Output Data: 192 bytes

• Module Capacity:

• Supports up to 12 S7-300 modules
• Compatible with fail-safe and HART modules
• Supports Shared Device and MRP functionality

---
