IC75SCBW07CDA

Product Overview

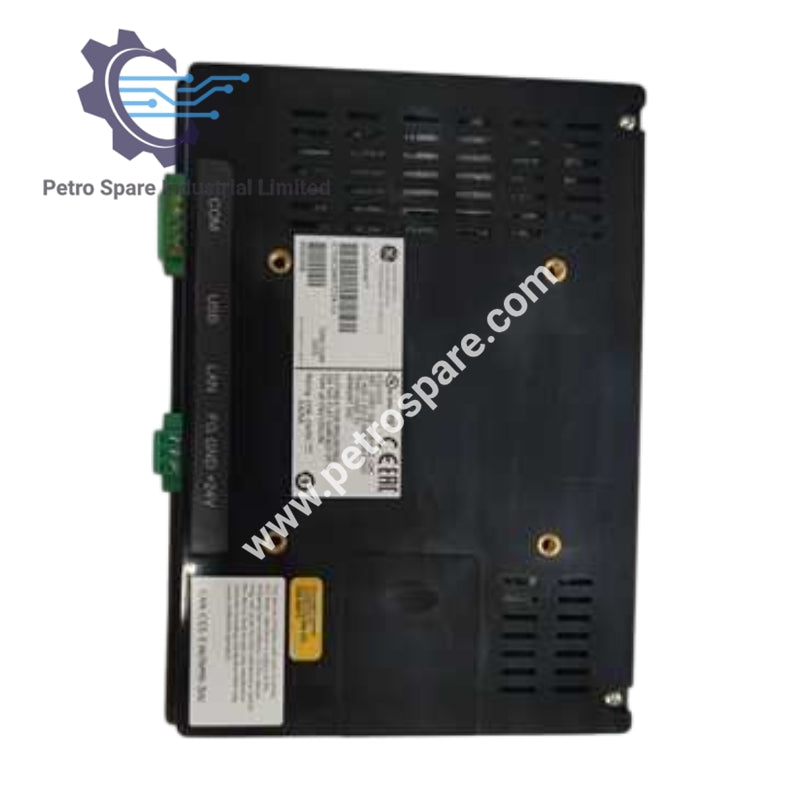

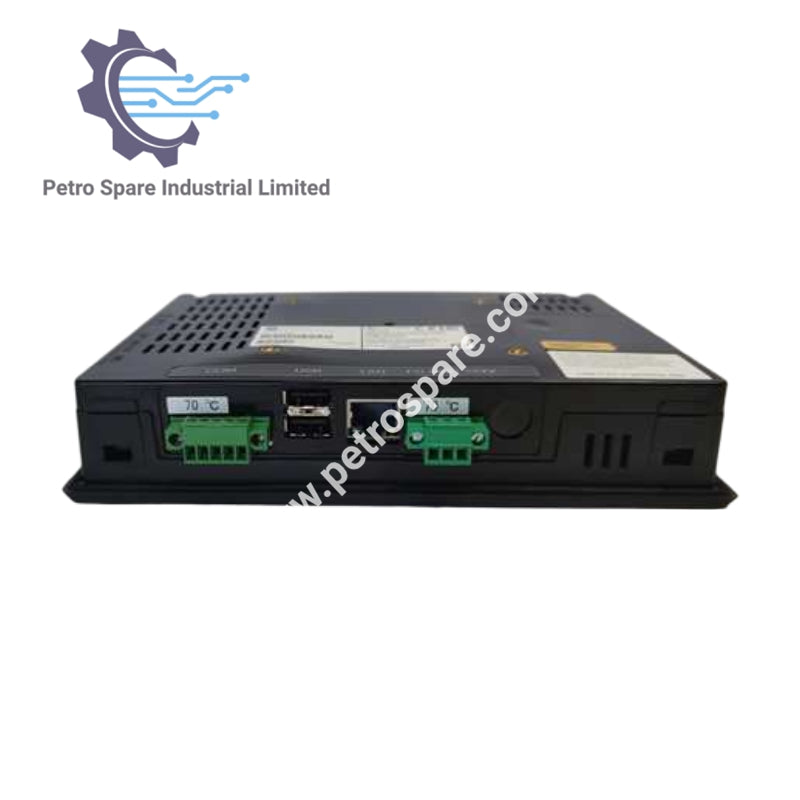

IC755CSW07CDA is a QuickPanel+ Operator terminal manufactured by Emerson Automation.

Technical Specifications

• Manufacturer: GE Fanuc Emerson
• Product Type: Operator Terminal
• Product Line: QuickPanel
• Weight: 0.77 kg (1.69 lbs)
• Voltage: 24 VDC
• Screen Size: 7 inches
• Resolution: 800 x 480 pixels
• Display Type: Colored TFT widescreen
• Processor: Freescale i.MX535 1 GHz ARM Cortex A8
• Clock Speed: 1 GHz
• Operator Input: Multi-touch
• Power Consumption: 15 W
• Integral Memory: 512 MB DDR2 SDRAM; 256 MB SLC NAND Flash; 512 KB battery-backed SRAM
• Communication Interface: One Ethernet port; One RS232 port
• USB Ports: Two USB 2.0 Type-A (Host); One USB 2.0 Mini Type-B (Device)
• Removable Storage Slot: 1x SD/SDHC card slot
• Operating System: Windows CE 7 (Windows Compact Embedded 7)
• Operating Temperature: 0–55°C
• Mounting: Panel Mount; VESA 75
• Status Indicators: Tri-color LED (Amber/Green/Red); On-board buzzer
• Functionalities: HMI; PLC; Process controller; Data historian; Gateway
• Programming Languages: Ladder Diagram (LD); Function Block Diagram (FBD); Structured Text (ST); Instruction List (IL); Sequential Function Chart (SFC)
• Bezel: With manufacturer monogram
