IC694ALG221
Description
Description
Overview

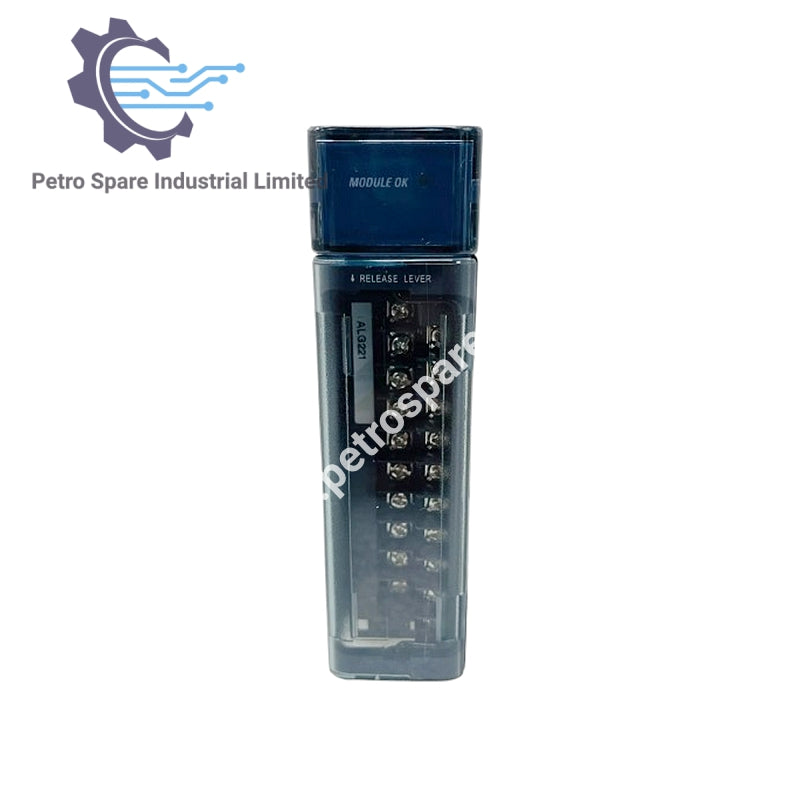

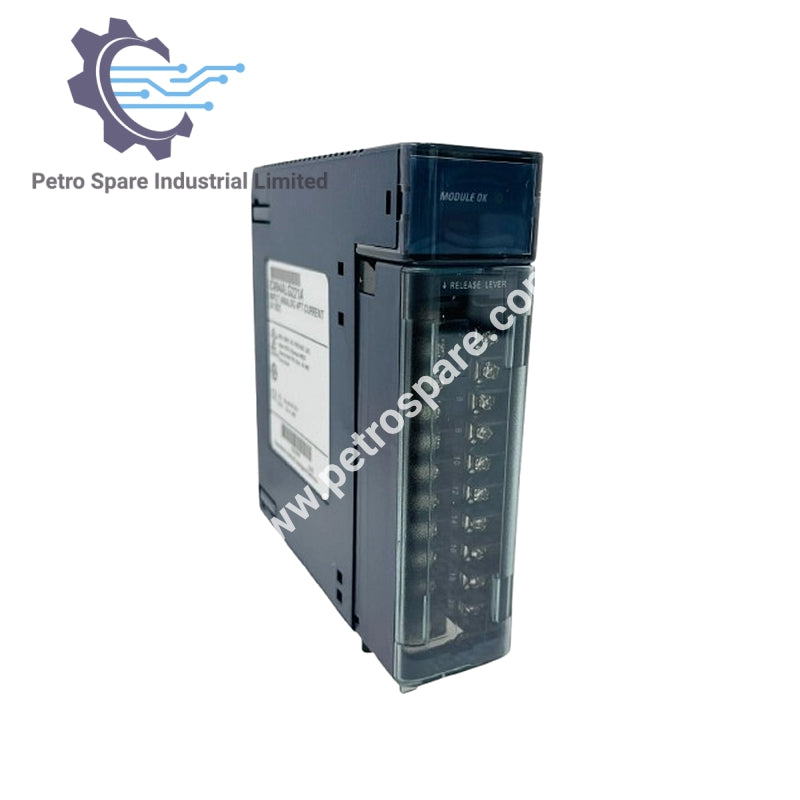

The IC694ALG221 is a 4-channel Analog Current Input Module for GE Fanuc RX3i PACSystems, providing precise current measurement with selectable ranges of 4–20 mA or 0–20 mA.
Channels & Input
-
Number of Channels: 4
-
Input Range: 4–20 mA (default) or 0–20 mA
-
Conversion Speed: 0.5 ms per channel (2 ms update for two channels per jumper)
-
Input Filter Response: 325 Hz
Protection & Isolation
-
Input Protection: Up to 200 V common-mode (reduced performance)
-
Electrical Isolation: Optical isolation between field wiring and backplane
Power & Installation
-
Power Consumption: 25 mA @ 5 VDC, 100 mA @ 24 VDC (isolated)
-
Installation: Any RX3i I/O slot; requires external 24 VDC if on universal backplane, otherwise backplane provides power
-
LED Status: Module OK indicator shows power functionality
Cabling
-
Recommended Wiring: Twisted, shielded instrumentation cable
-
Shield Connection: COM or GND
