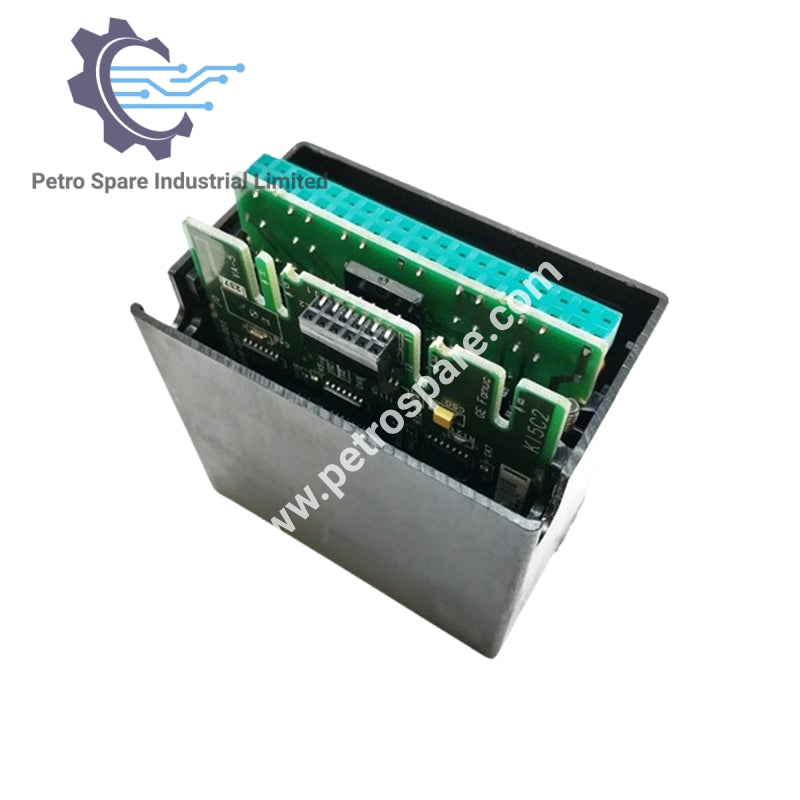

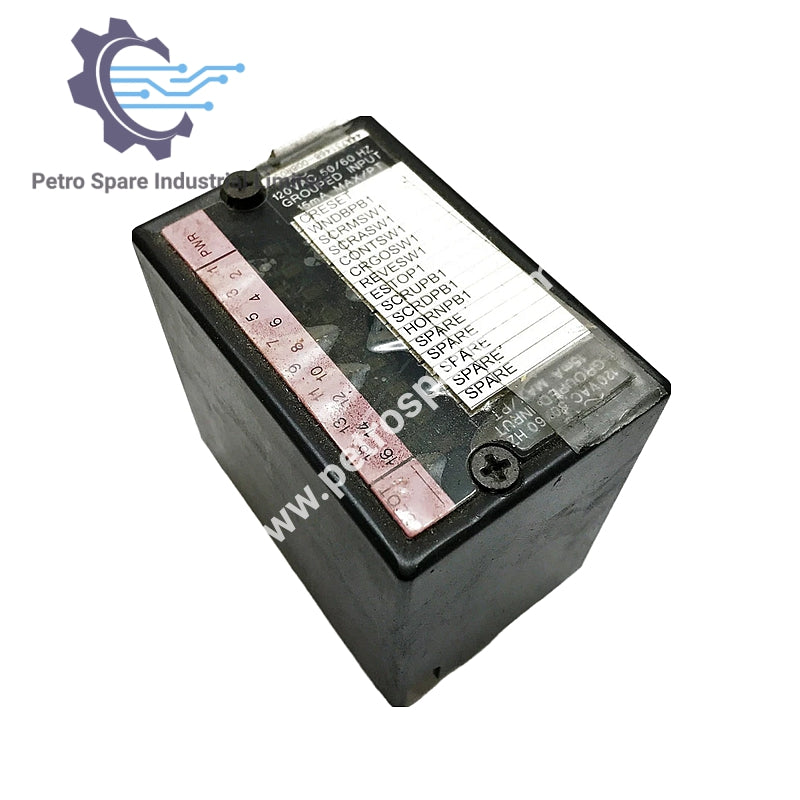

IC670MDL240

Overview

• Model: IC670MDL240

• Type: Discrete Input Module (Grouped)

• Series: GE Fanuc Field Control

Electrical Specification

• Rated Voltage: 120 VAC

• Input Voltage Range: 0–132 VAC (47–63 Hz)

• User Input Current: 15 mA per point @ 120 VAC

• Indicators:

  • 1 LED per point (individual status)

  • PWR LED indicates backplane power present

• Isolation:

  • User input to logic: 250 VAC continuous, 1500 VAC for 1 min

  • User input to frame ground: 250 VAC continuous, 1500 VAC for 1 min

  • Group to group: 250 VAC continuous, 1500 VAC for 1 min

  • No isolation between individual points in a group

• Current Drawn from BIU Power Supply: 77 mA max

Input Characteristics

• Input Impedance: 8.6 kΩ typical (reactive)

• On-State Voltage: 70–120 VAC

• Off-State Voltage: 0–20 VAC

• On-State Current: 5–15 mA

• Off-State Current: 0–2.5 mA

• Response Time:

  • ON: 12 ms typical, 20 ms max

  • OFF: 25 ms typical, 40 ms max

---
