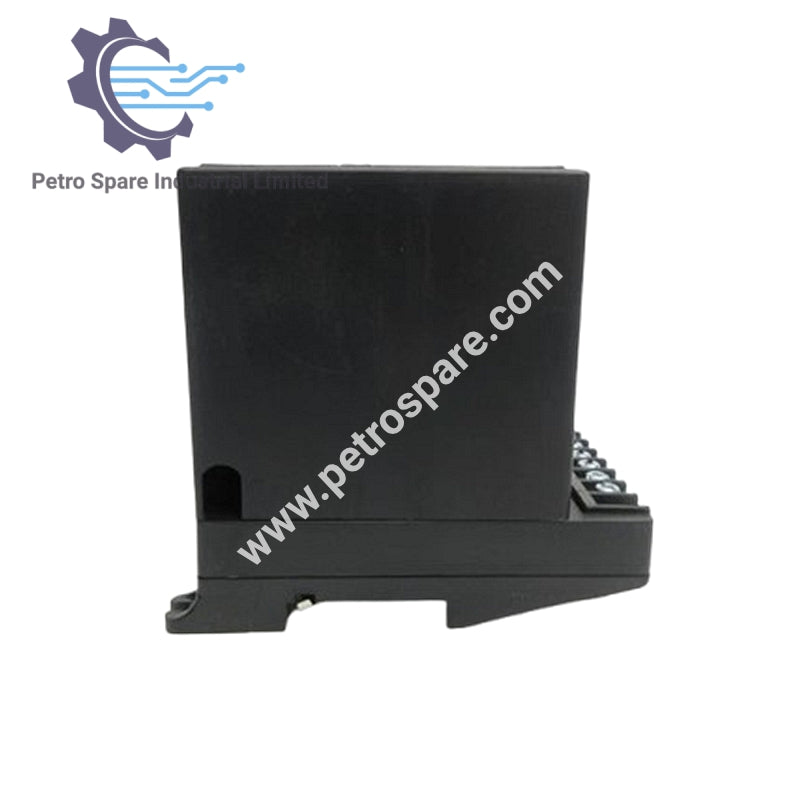

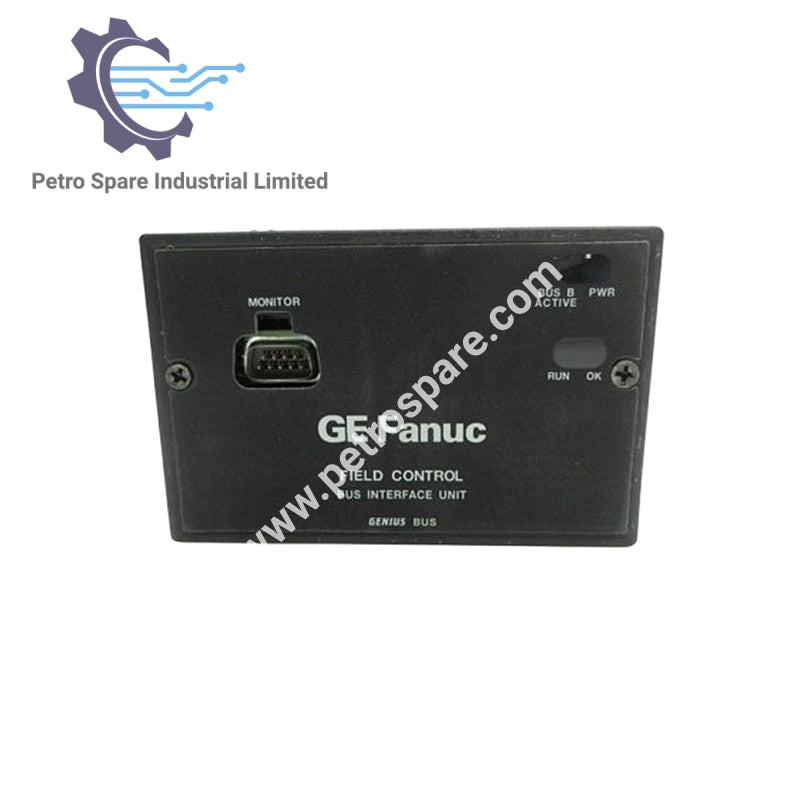

IC670GBI102

Product Overview

• Model: IC670GBI102

• Type: Profibus Bus Interface Unit (BUI)

• Series: Field I/O Control

• Compatibility: Field Control IC670GB / IC670GBI

Electrical Specification

• Nominal Rated Voltage: 115 VAC, 125 VDC

• Supply Voltage Range: 90–135 VAC, 105–150 VDC

• Nominal Supply Voltage: 115 VAC, 125 VDC

• Frequency: 47–63 Hz

• Power Consumption:

  • 115 VAC: 48 VA max at full load

  • 125 VDC: 24 W max at full load

• Inrush Current: 15–50 A peak, 3 ms max

• Power Supply Output: 6.5 VDC ±5%

• Holdup Time: 10 ms

Communication Specification

• Transmission Speed: 53.6 Kbaud (standard), 153.6 Kbaud (extended), 76.8 Kbaud, or 38.4 Kbaud

• Supported Protocols: Genius

• Terminating Resistors: 75 Ω, 100 Ω, 120 Ω, 150 Ω

• Pre-fabricated Cables: IC660BLM506, IC660BLM508

• Hot Insertion/Removal Compatibility: IC670GBI002(F), IC670GBI102A

Functional Specification

• Supported Functions: I/O forcing, diagnostic display, program upload/download

• Compatible Hand-Held Programmers: IC660HHM501, IC693PRG300

• No. of Supported I/O Modules: Up to 8 modules

• Reliability: MTBF >183,000 hours (calculated)

Mechanical Specification

• Mounting: DIN rail / panel mount via BIU terminal block

• Weight: 1.88 lbs (0.85 kg)

---
