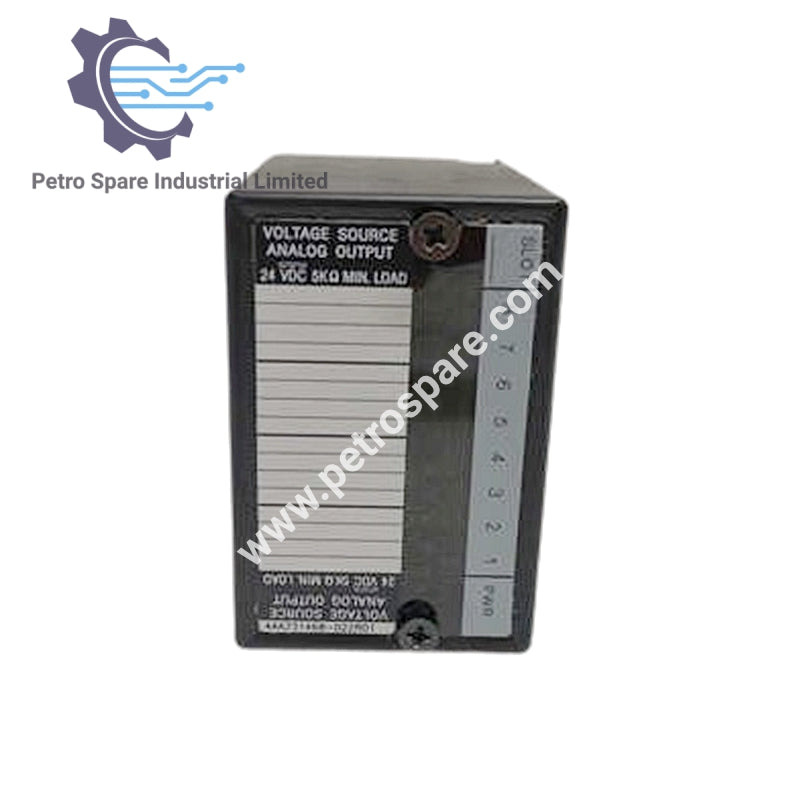

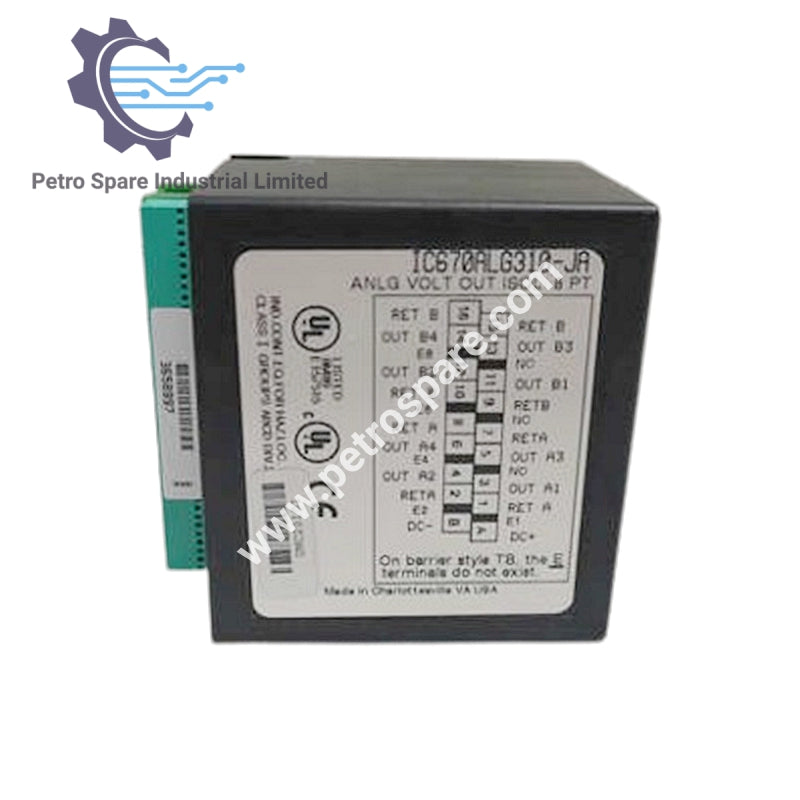

IC670ALG310

Overview

• Model: IC670ALG310

• Type: Isolated Analog Output Module

• Series: GE Fanuc Field Control

Electrical Specification

• Output Voltage Range: -10 to +10 V

• Over/Under Range: ±50 mV

• Resolution: 14 bits

• Number of Channels: 8 output channels

• Magnitude Data Size: 14 bits

• Minimum Load Resistance: ≥5 kΩ

• Output Load Capacitance: 1 µF

• Power Supply Range: 18–30 VDC

• Current Drawn from Bus: 170 mA

Functional Specification

• Input Data Capacity: 0–8 words, 0–3 bytes, 0–2 bytes

• Calibration: Field recalibration supported

Mechanical Specification

• Weight: 1.00 lbs (0.45 kg)

Environmental Specification

• Operating Temperature: 0–55 °C

---
