FS-TSGAS-1624

Product Overview

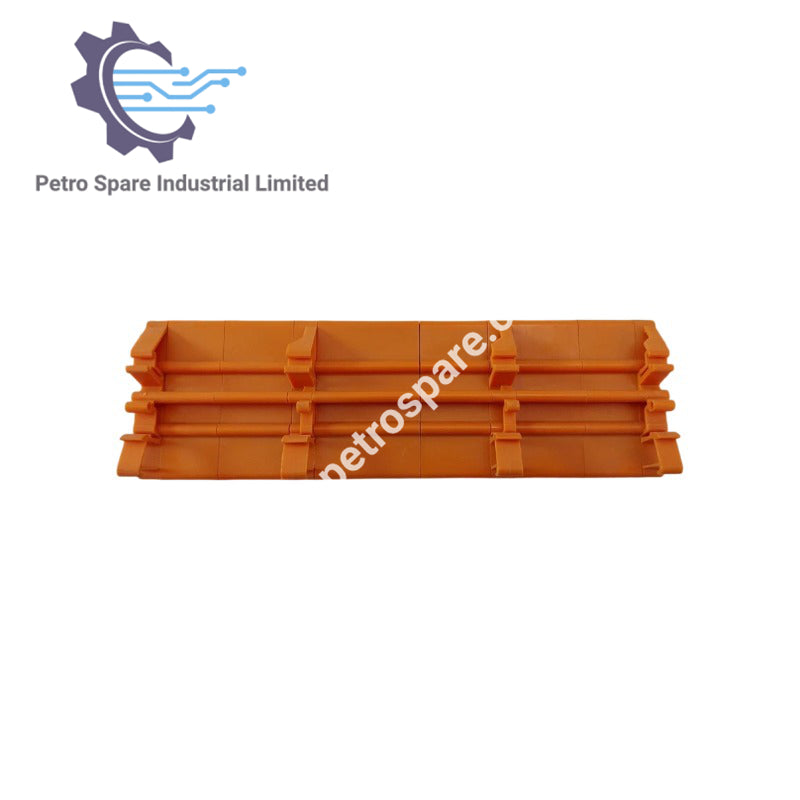

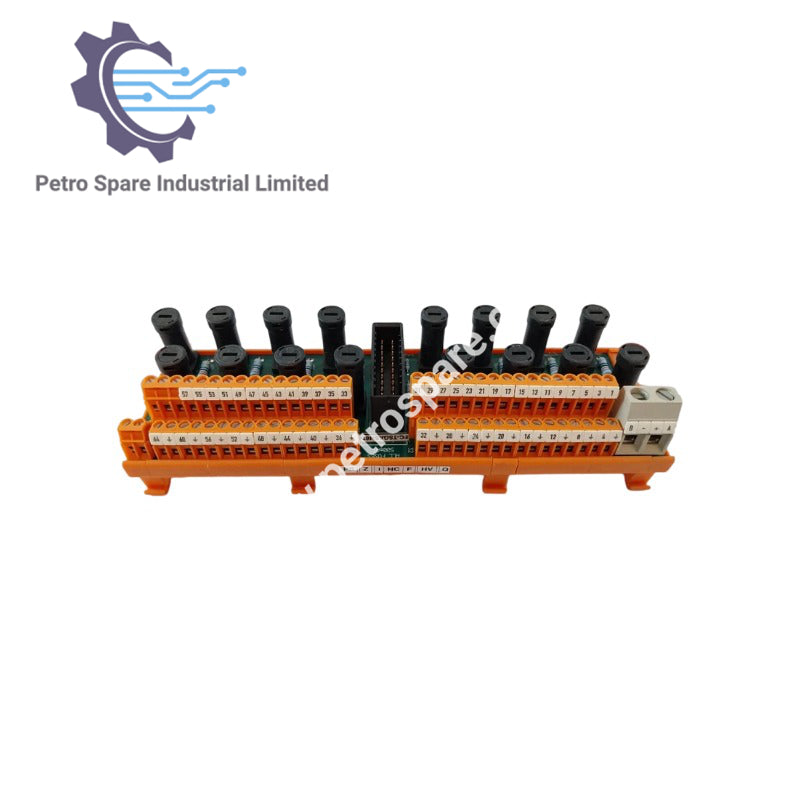

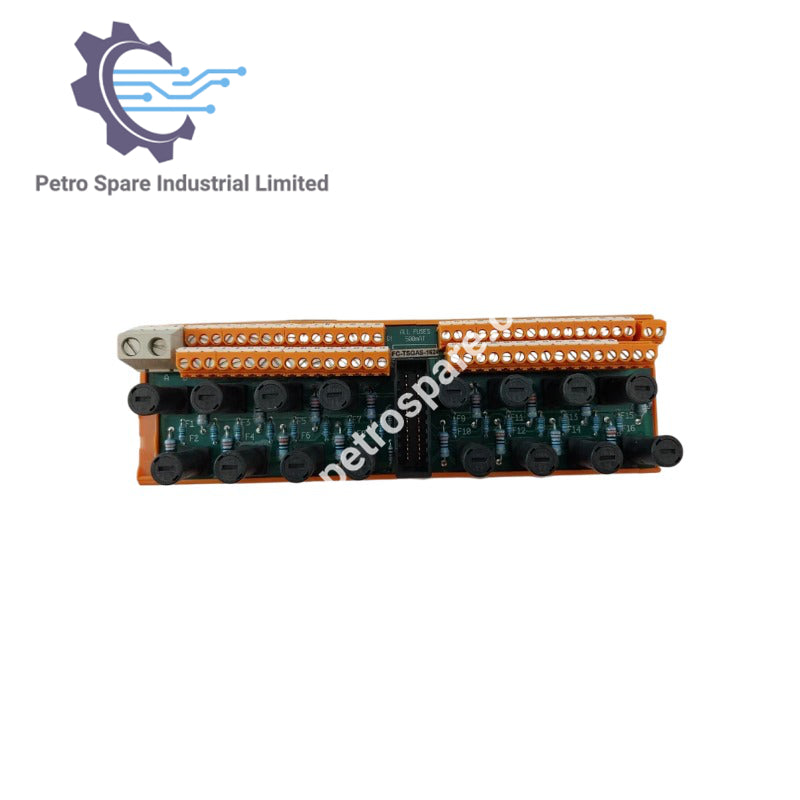

The FS-TSGAS-1624 is a Fail‑safe Gas Flame Detector Input FTA (Field Termination Assembly) designed for industrial safety systems.

General Specifications

• Type Number: FS‑TSGAS‑1624

• Number of Input Channels: 16 (with common 0 V)

Input Specifications

• Power Requirements: 24 Vdc external, 3 mA (without field loads)
• Input Current: 0 to 25 mA
• Input Resistance: 500 Ohm (±5%)

To 10105/2/1 Module

• Output Voltage: 0 to 4 Vdc
• Accuracy: 0.1%

Fuses

• Rating: 500 mAT (slow‑acting), 5 x 20 mm (0.20 x 0.79 in)

Physical Dimensions

• Module Dimensions: 225 x 70 x 60 mm (L x W x H) – 8.86 x 2.76 x 2.36 in
• DIN EN Rails: TS32 / TS35 x 7.5
• Used Rail Length: 226 mm (8.90 in)

Termination – Screw Terminals

• Max. Wire Diameter: 2.5 mm² (AWG 14)
• Strip Length: 7 mm (0.28 in)
• Tightening Torque: 0.5 Nm (0.37 ft‑lb)

Power Screw Terminals (A, B)

• Max. Wire Diameter: 16 mm² (AWG 8)
• Strip Length: 7 mm (0.28 in)
• Tightening Torque: 1.2 Nm (0.88 ft‑lb)

---
