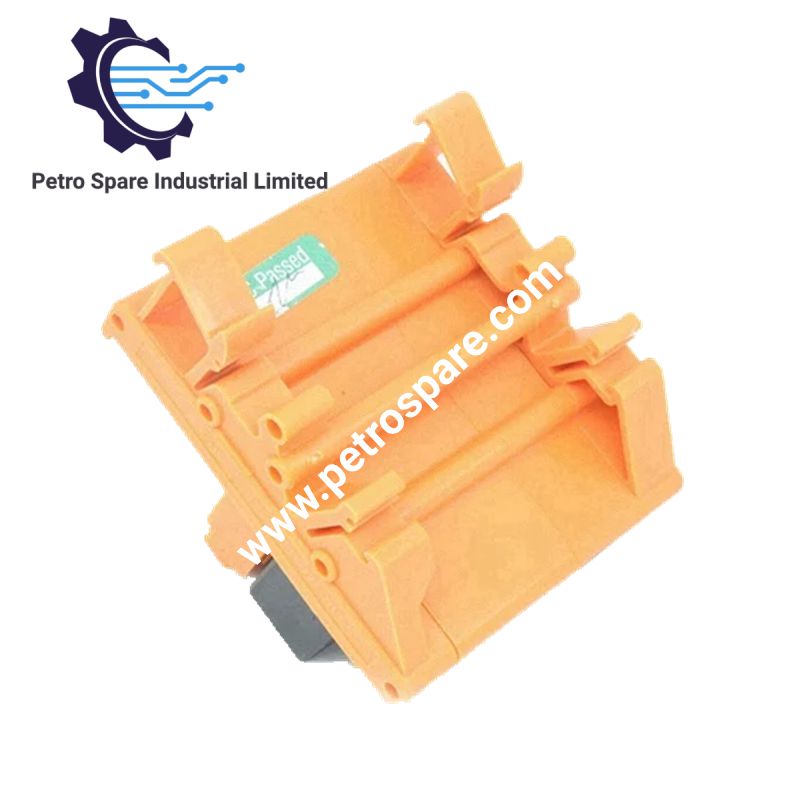

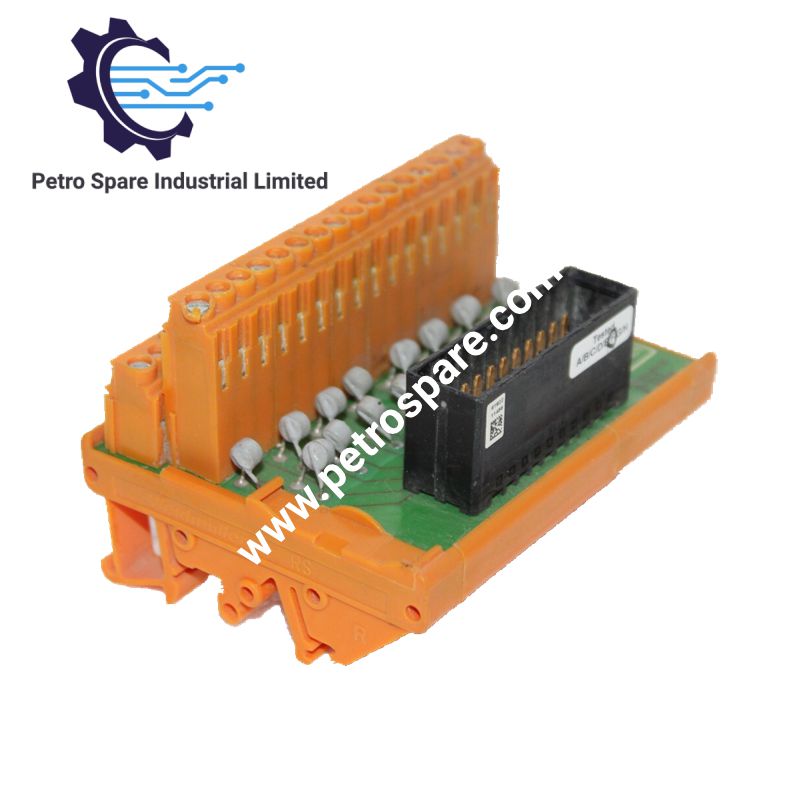

FS-GIMTLDI-1624

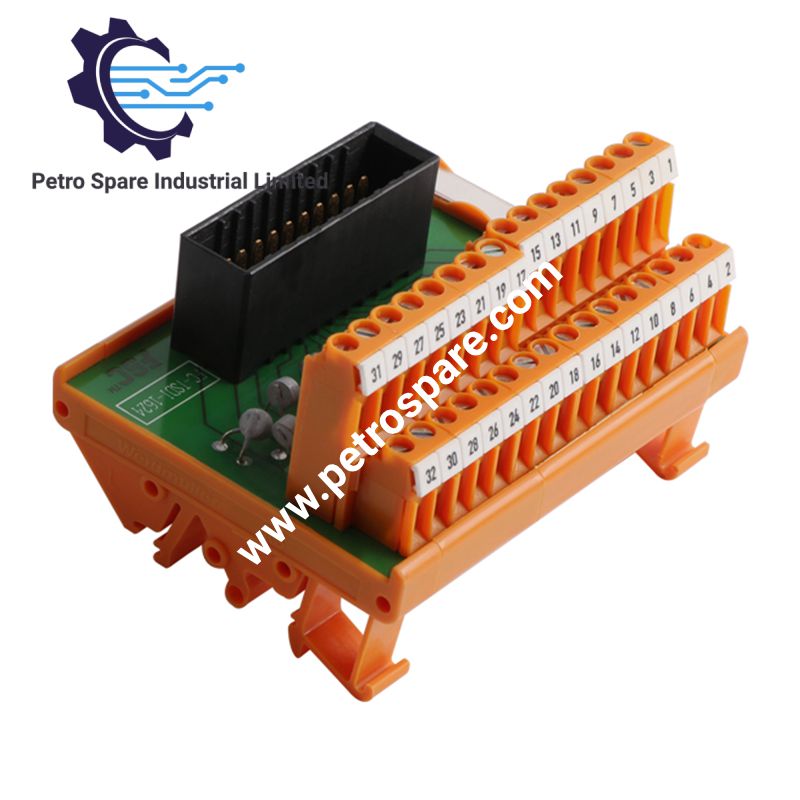

The Honeywell FS-GIMTLDI-1624, also associated with the FS-GIMTLDI-1624 digital input interface assembly, is specified for acquiring 24 VDC discrete field signals in Honeywell FSC and Safety Manager safety control systems. Its stated 16-channel configuration and galvanic isolation support the electrical interface between field contacts and safety controller inputs.

Hardware Specifications

Parameter	Specification
Model	FS-GIMTLDI-1624
Brand	Honeywell
Operating Temp	-40 to 70 deg C (provided data)
Storage Temperature	-55 to 85 deg C
Relative Humidity	5% to 95%, non-condensing
Product Series	FSC / Safety Manager
Product Type	Digital Input Module / Galvanic Isolation Interface Assembly
Number of Channels	16
Nominal Input Voltage	24 VDC
Input Voltage Range	18 to 30 VDC
Typical Input Voltage	21 to 28 VDC
Isolation	Channel-to-channel / channel-to-system galvanic or optical isolation, as described in supplied data
Safety Integrity Level	SIL 2 / SIL 3 suitability stated in supplied data; exact certification requires verification
Mounting	DIN rail or rack mounting, as described in supplied data

Galvanic Isolation and Digital Signal Acquisition

The stated isolation architecture separates field-side signals from controller-side electronics to limit ground-loop interference and the transfer of electrical disturbances. The 16-channel configuration is intended for discrete signals from switches, proximity sensors, and dry contacts.

The supplied information also describes diagnostics for signal integrity, loop continuity, and open- or short-circuit conditions. The exact diagnostic coverage, channel isolation ratings, and fault response behavior should be verified against the manufacturer documentation for the specific assembly.

Frequently Asked Questions (FAQ)

Q: What field signal voltage does the FS-GIMTLDI-1624 support?

A: The supplied specifications state a nominal input voltage of 24 VDC, with an operating input range of 18 to 30 VDC.

Q: Can the module be replaced while the system is energized?

A: Hot-swap capability is not confirmed by the supplied data. Verify the applicable Safety Manager or FSC hardware installation manual before removing or replacing the assembly.

Q: What should be checked when connecting field inputs?

A: Confirm terminal assignments, input polarity, field supply voltage, and the specified isolation arrangement. Verify that field wiring and grounding follow the system installation documentation.

Field Installation Guidelines

• Confirm the complete part number and hardware revision against the installed FSC or Safety Manager configuration.
• Verify mounting compatibility with the intended DIN rail or rack assembly.
• Check field input voltage and terminal assignments before energizing the circuit.
• Route discrete signal wiring separately from high-voltage and high-current conductors where practical.
• Apply cable shielding and grounding according to the manufacturer's installation instructions.
• Verify channel status and fault diagnostics during commissioning.
• Confirm approved replacement procedures before disconnecting or removing installed hardware.

---
