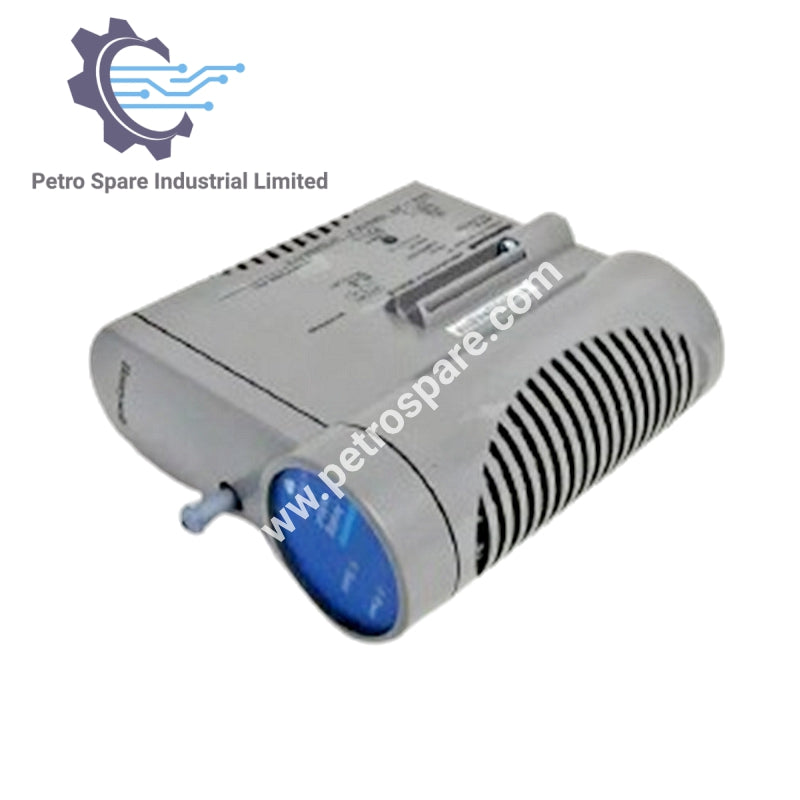

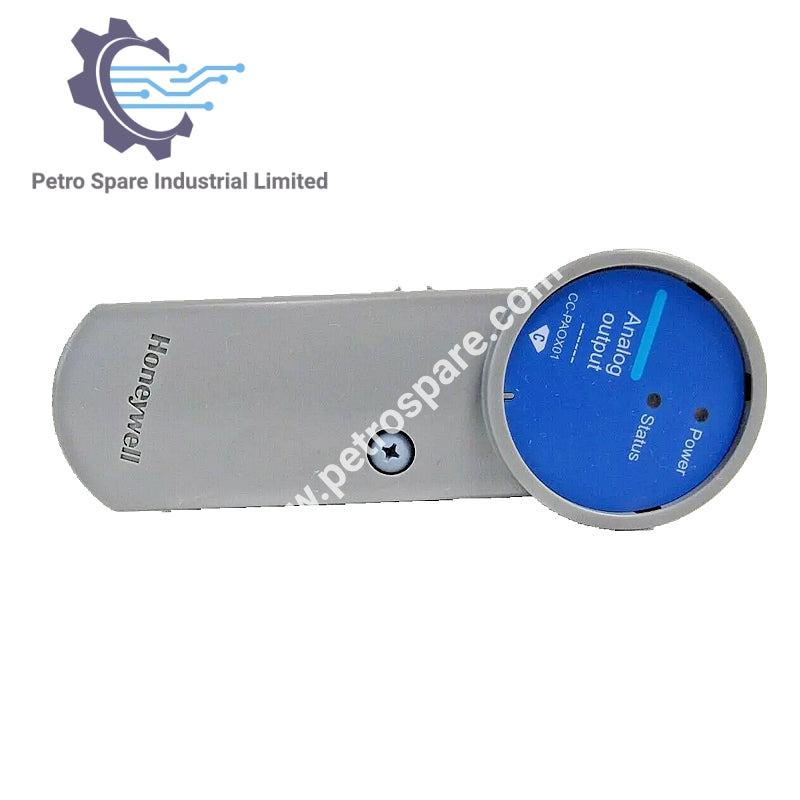

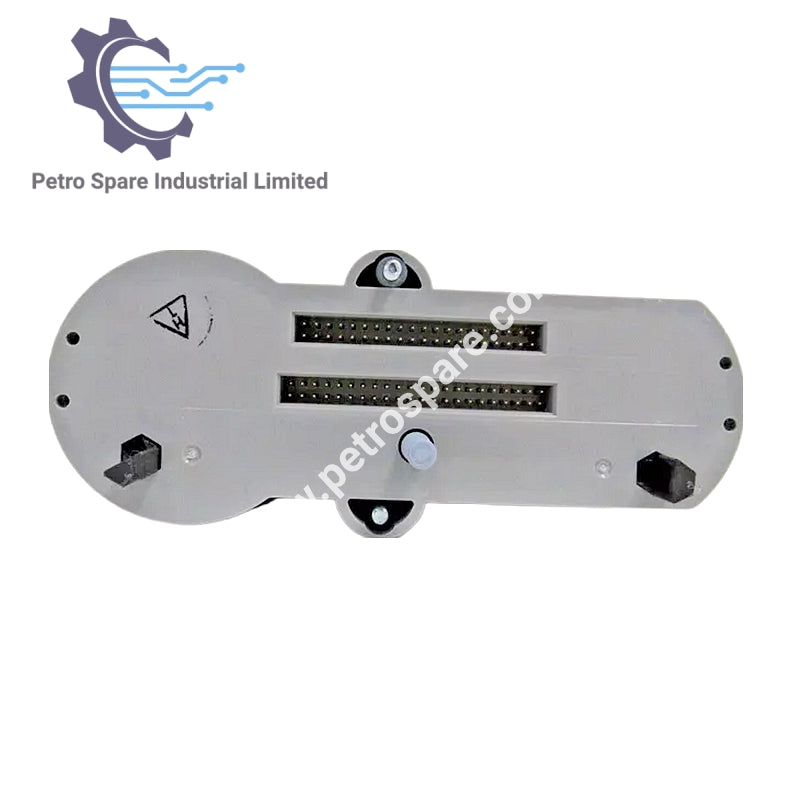

CC-PAOX01
Description
Description
Overview
Honeywell CC-PAOX01 is a high-level analog output module offering precise 4-20 mA output with 16 channels, designed for reliable industrial applications.
Output Performance
-
Output Type: 4-20 mA
-
Output Channels: 16
-
Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load
-
Output Temperature Drift: 0.005% of Full Scale/°C
Accuracy and Resolution
-
Output Readback Accuracy: ±4% of Full Scale
-
Output Current Linearity: ±0.05% of Full Scale nominal
-
Resolution: ±0.05% of Full Scale
-
Calibrated Accuracy: ±0.35% of Full Scale (25°C), including linearity
Output Range
-
Directly Settable Output Current Range: 0 mA, 2.9 mA to 21.1 mA
Load Capacity
-
Maximum Resistive Load (24 V supply = 22 VDC through 28 VDC): 800 ohms
-
Maximum Output Compliant Voltage (24 V supply = 22 VDC through 28 VDC): 16 V
Download CC-PAOX01 PDF file here:
Click to Download PDF
