Overview

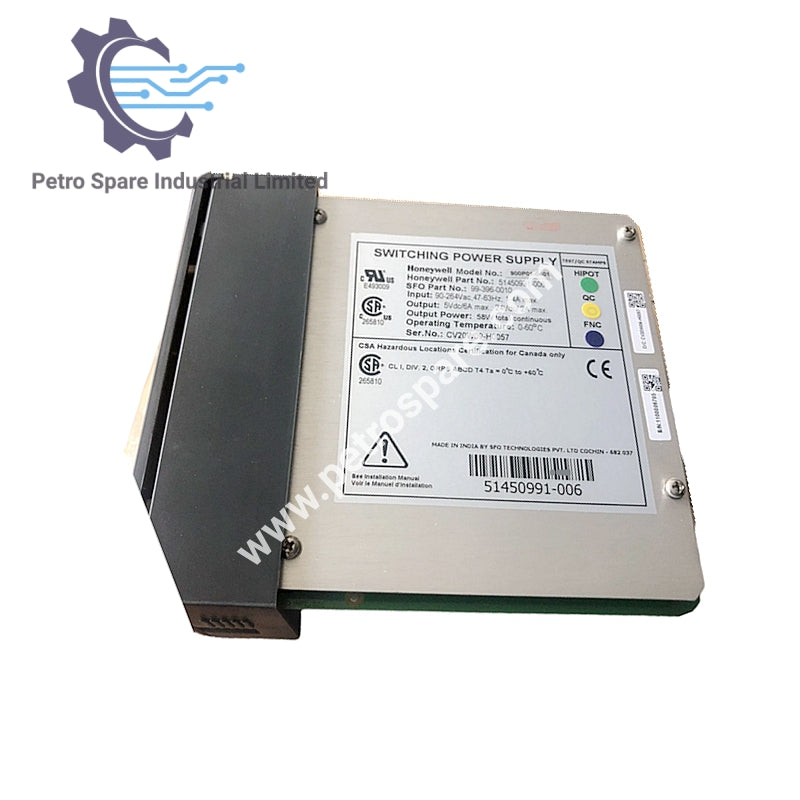

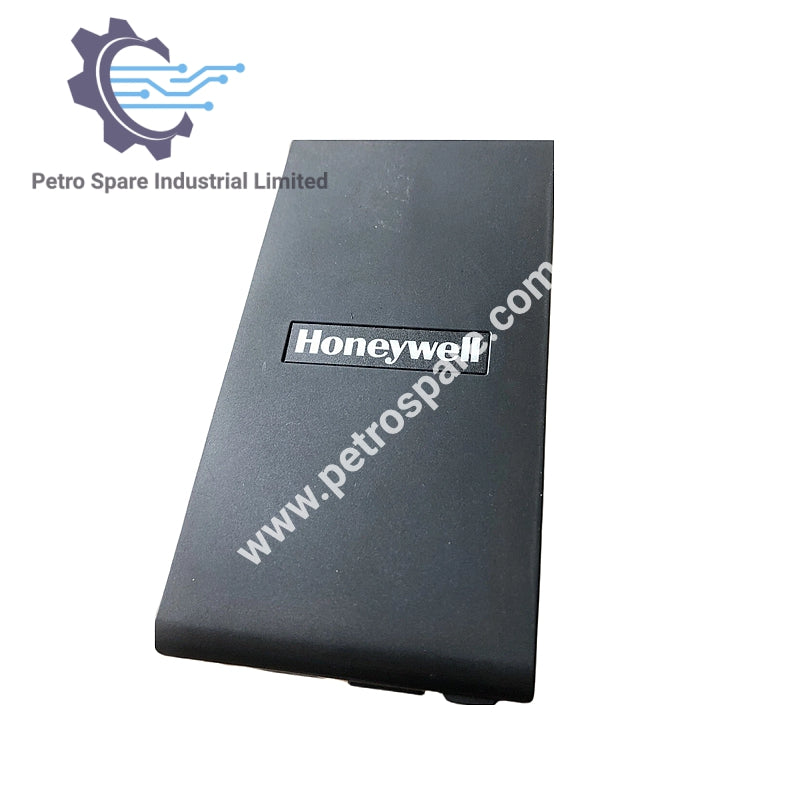

The Honeywell 900P01-0401 is a SIL power supply module providing reliable 5 VDC and 24 VDC outputs for industrial control systems.
Electrical Specifications
-
Input Voltage Range: 90–264 VAC
-
Input Frequency: 47–63 Hz
-
Input Current: 1.4 A max
-
Output Voltage: 5 VDC / 24 VDC
-
Output Current: 5V @ 6 A max, 24V @ 2 A max
-
Total Continuous Power: 58 W
Operating Conditions
-
Operating Temperature: 0°C to +60°C
Physical Specifications
-
Dimensions (H × W): 137 mm × 72.6 mm
-
Weight: 650 g
