2MLI-D22A-CC

Product Overview

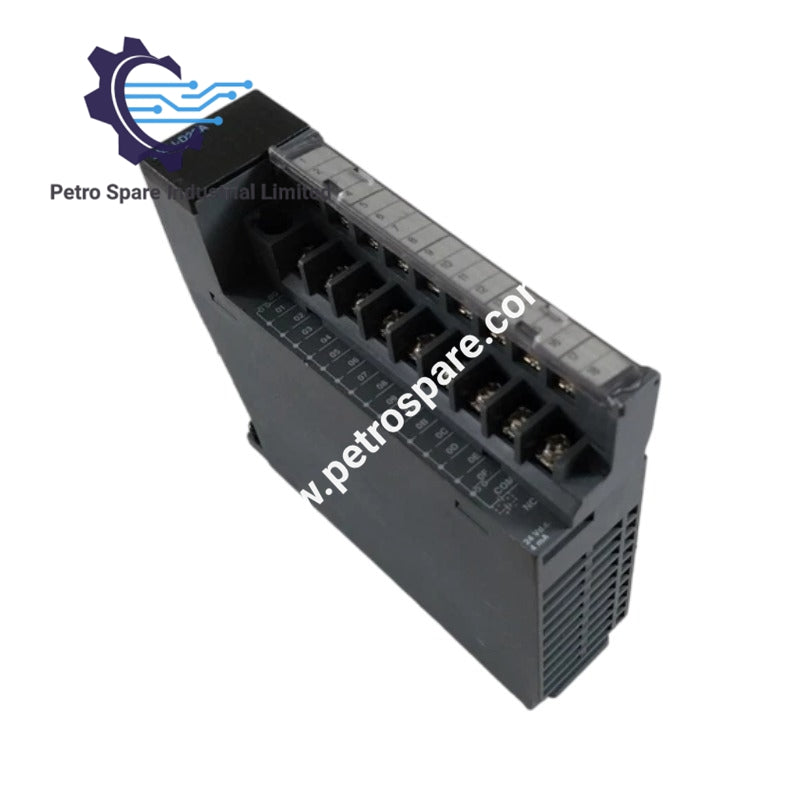

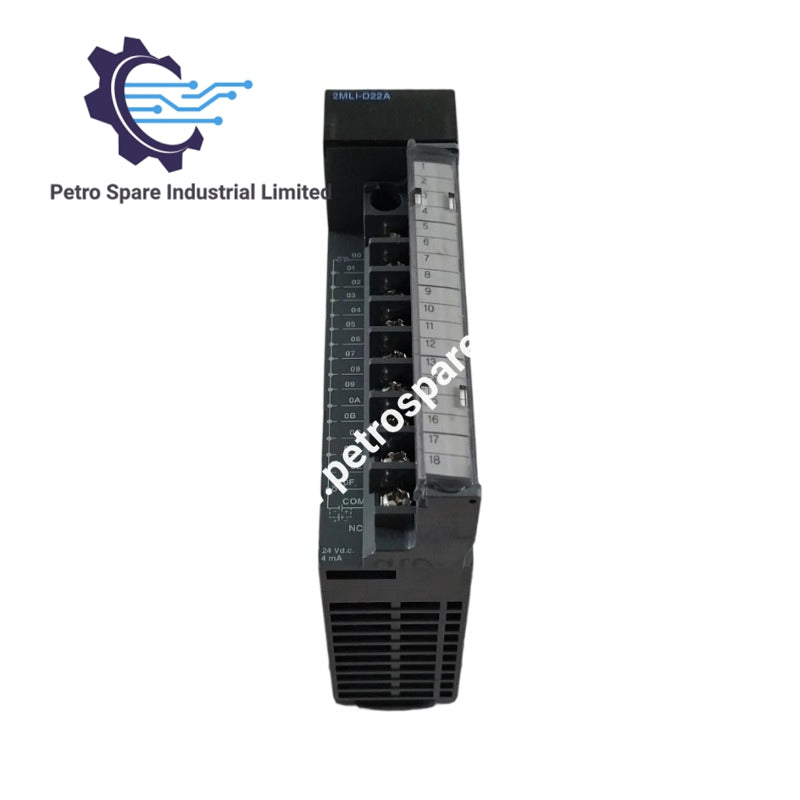

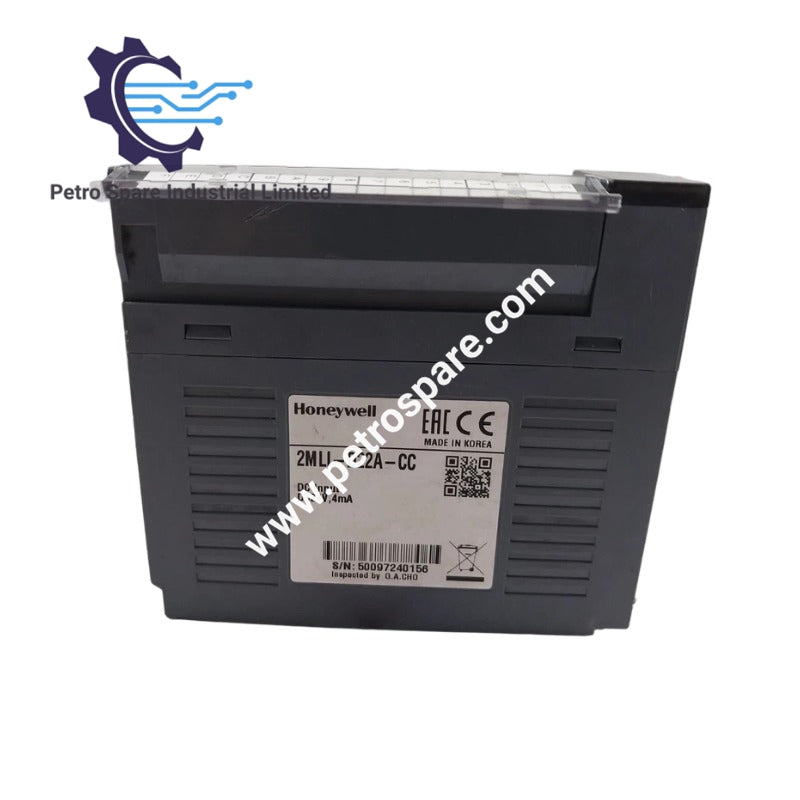

Honeywell 2MLI-D22A-CC is a high-performance digital input module in the MasterLogic ML200 PLC series designed to convert external digital signals from field devices into PLC logic states.

Technical Specifications

Manufacturer: Honeywell

Series: MasterLogic ML200

Number of Input Points: 32 channels

Input Type: Current sink/source (bi-directional)

Rated Input Voltage: 24V DC

Rated Input Current: Approx. 4.0mA per channel

On Voltage / On Current: ≥19V DC / ≥3mA

Off Voltage / Off Current: ≤6V DC / ≤1mA

Response Time (OFF → ON): Programmable (1ms–100ms), default 3ms

Response Time (ON → OFF): Programmable (1ms–100ms), default 3ms

Common Method: 32 points per common

Isolation Method: Photo-coupler isolation

Internal Current Consumption: Approx. 50mA (5V DC internal logic)

External Connection: 40-pin connector

Environmental Protection: Conformal coated (CC) for resistance to moisture, dust, and corrosive contaminants

Weight: Approx. 0.12 kg

---
