Description

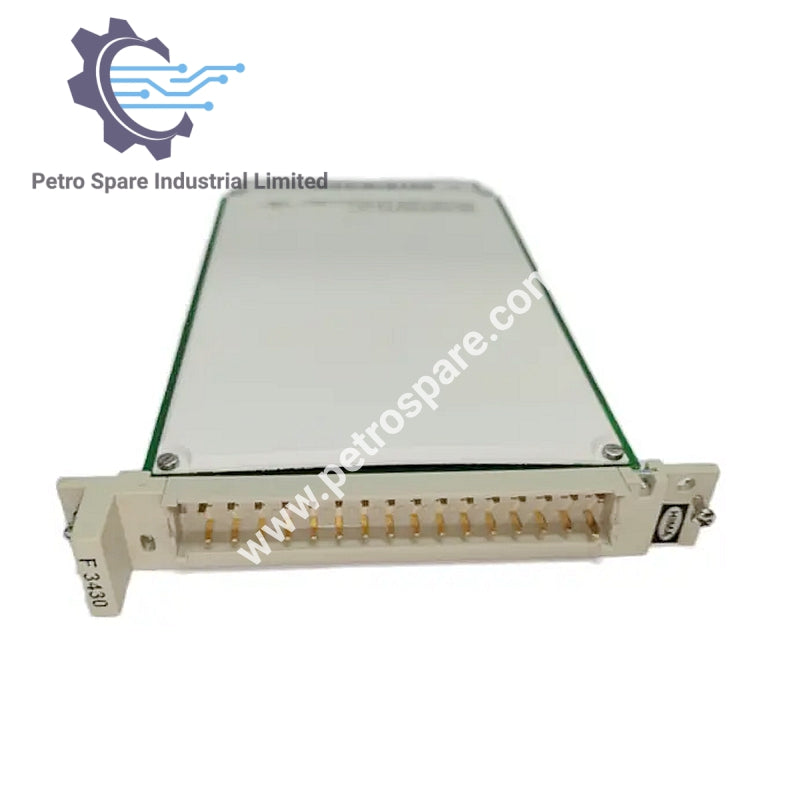

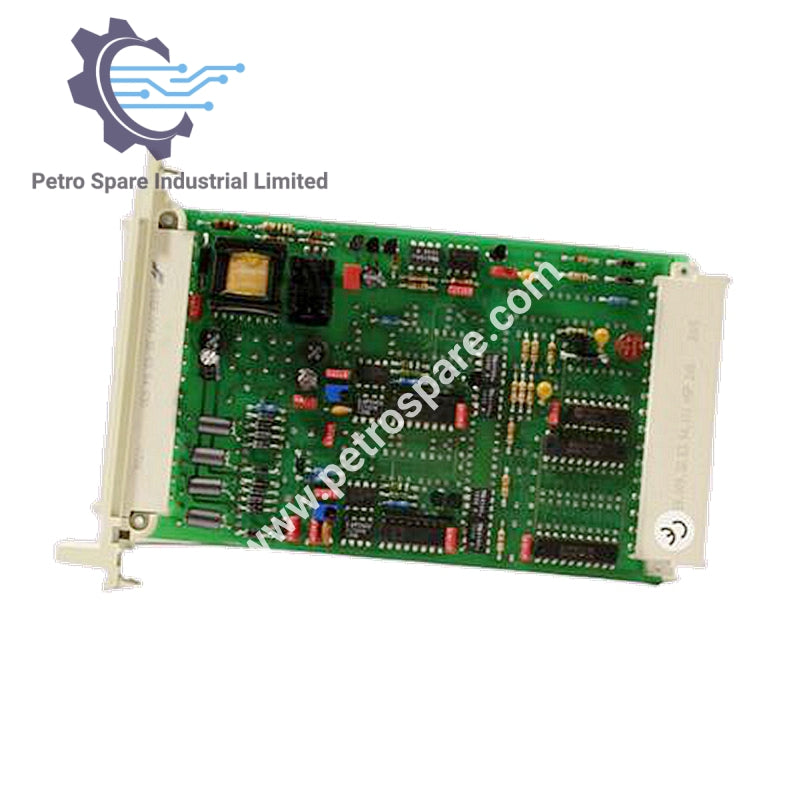

The HIMA F 3430 is a 4-fold relay module with integrated safety shutdown and isolation, designed for reliable switching in safety-related automation systems.
Electrical Specifications
-
Switching Voltage: ≥5 V, ≤250 V AC / ≤110 V DC
-
Switching Current: 10 mA ≤ I ≤ 4 A
-
Switching Capacity (AC): Max. 500 VA, cos ϕ > 0.5
-
Switching Capacity (DC):
• Up to 30 V DC: 120 W
• Up to 70 V DC: 50 W
• Up to 110 V DC: 30 W
Performance Characteristics
-
Switching Time: Approx. 8 ms
-
Reset Time: Approx. 6 ms
-
Bounce Time: Approx. 1 ms
-
Mechanical Life: ≥30 × 10⁶ operations
-
Electrical Life: ≥2.5 × 10⁵ operations (resistive load)
Design and Power
-
Output Type: Relay NO contacts, silver alloy (gold-flashed)
-
Status Display: Solid-state (open collector) LED output
-
Requirement Class: AK 1–6
-
Power Supply: 5 V DC (<100 mA), 24 V DC (<120 mA)
-
Space Requirement: 4 TE
